Prerequisites for installation and use :

• Enki application* + Enki Box

* Prerequisites for the Enki application : Internet access and a mobile phone with minimum operating system : Android: 7 / iOS: 15

Communication protocol:

• Enocean

Country available:

• France**

Status feedback available :

• No

Alexa voice control:

• No

Google Home voice control:

• No

Article content:

• Technical description

• Product functionality in the ENKI application

• Product view

• How do I reset my product?

• Technical documents / user manual





Technical description:

• Type : Wireless and batteryless single/double switch
• Requires Enki box : Yes / Enki Box V1
• Protocol : EnOcean 868 MHz
• Product presentation : Enables the creation of an additional control point without wiring

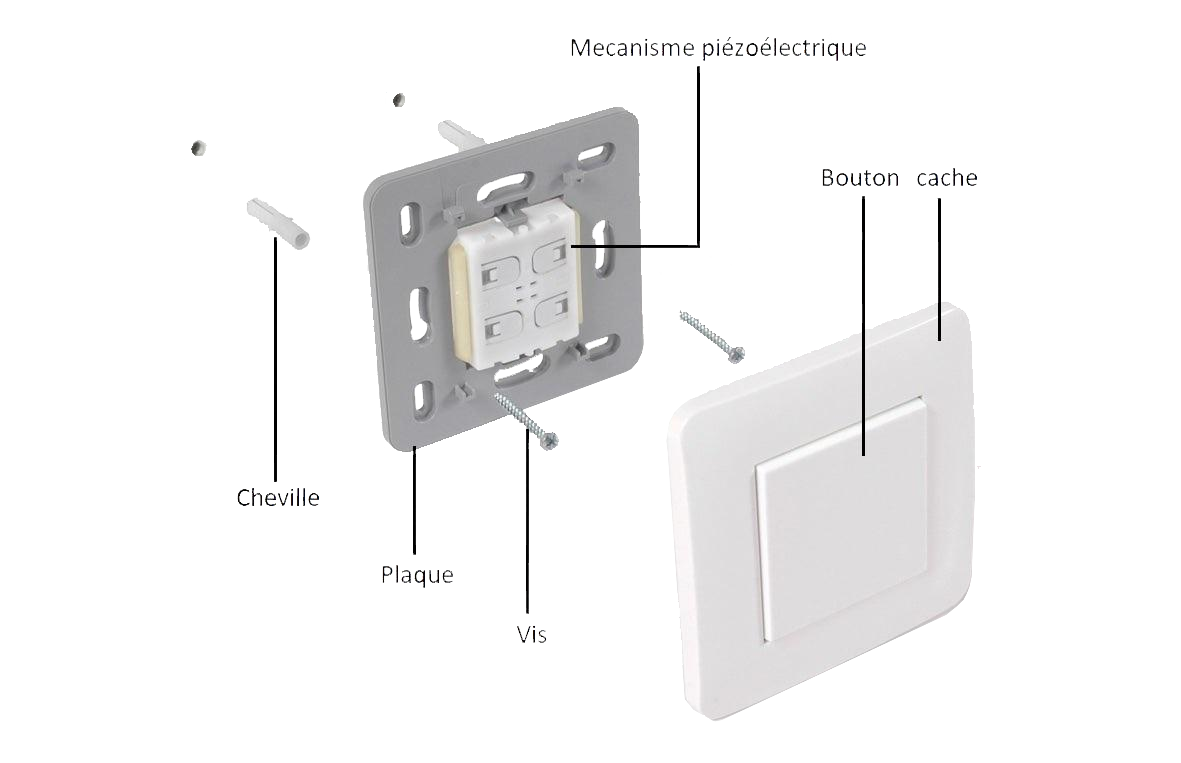

• Composition : MECHANISM/FACEPLATE/COVER
• Mounting method : Screws
• Packaging : Under film
• Claws : Yes
• Paint cover : No
• Finish : Matte
• Color : WHITE
• Net unit weight : 54 grams
• Dimensions : 85 mm x 85 mm x 14 mm
• Materials : ABS/ABS/PC
• Screw head : Phillips #3
• Number of keys : 2 or 4
• Operating temperature (°C) : 5 → 35°C
• Waterproof level : IP20
• Shock resistance : IK02
• UV resistance : yes
• Storage temperature : -5 → 50°C

Product functionality in the ENKI application:

Object functionality	Properties	Integration into a scenario
		Actions	Triggers	Conditions
Top button	Associate an action with a device or a scenario	✘	✔	-
Bottom button	Associate an action with a device or a scenario	✘	✔	-

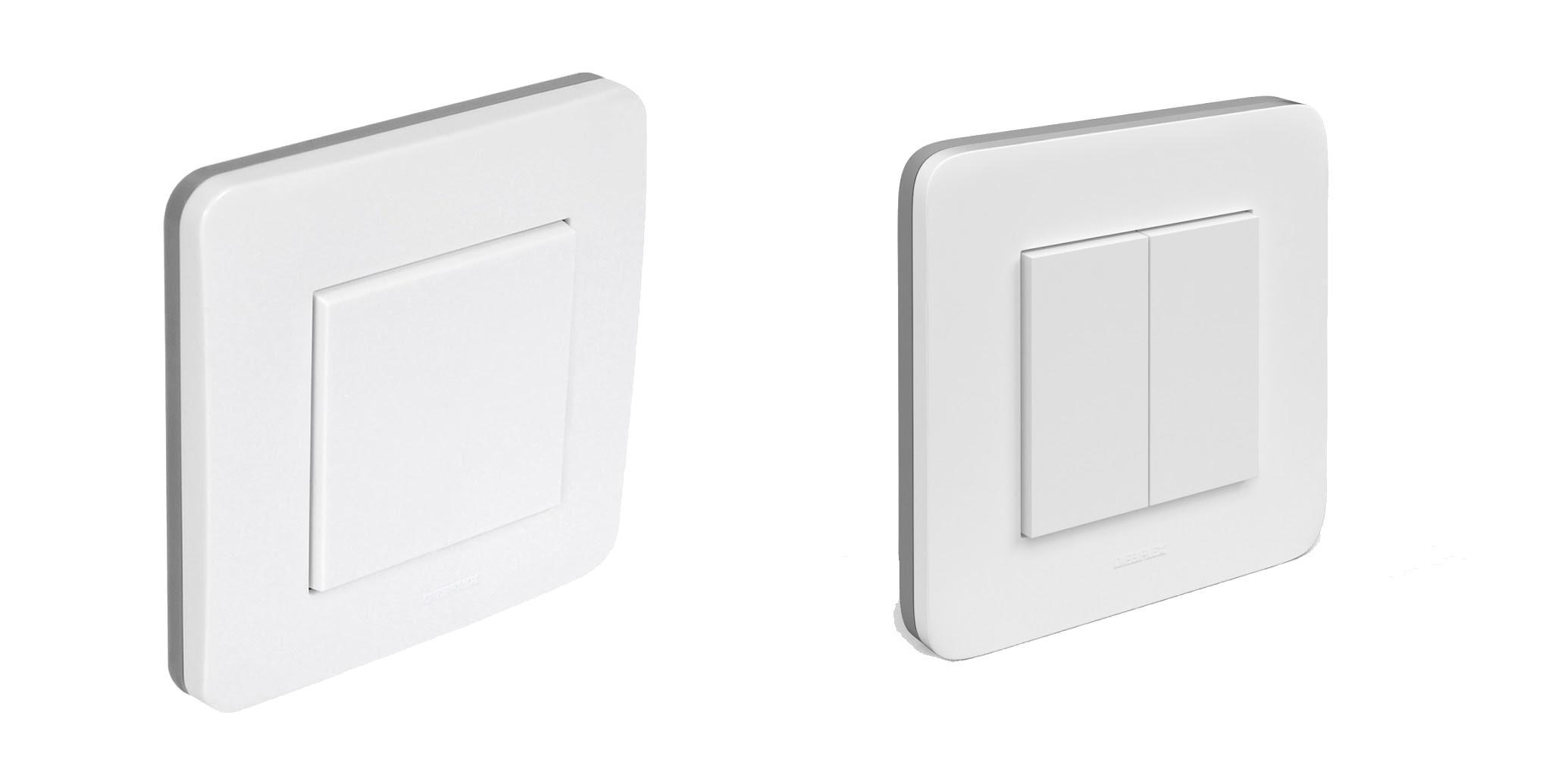

Product view:





How do I reset my product?





Technical documents / user manual
