Prerequisites for installation and use :

• Enki application* + Box Enki Connect / Essentiel b Connect.

* Prerequisites for the Enki application: Access to internet and a phone with a minimum operating system : Android: 7 / iOS: 15

Communication protocol:

• Zigbee

Available countries:

• France**

**Box Essentiel b Connect available only in France

Status feedback available :

• No

Alexa voice control :

• No

Google Home voice control :

• No

Article content :

• Technical description

• Product functionality in the ENKI application

• Product view

• How to reset my product?

• Technical documents / user manual





Technical description :

• Type : Switch - detachable button
• Requires the Enki box : Yes / Box Connect
• Protocol : Zigbee
• Use : Indoor
• Power supply : CR2032 battery
• Composition : Fixing plate / Support / Button (magnet)
• Mounting method : Screws or adhesive
• Colour : WHITE
• Net unit weight : NC
• Dimensions : NC
• Number of keys : 1
• Operating temperature (°C) : NC
• Waterproof level : NC
• Storage temperature : NC



Product functionality in the ENKI application :

Object functionality	Properties	Integration in a scenario
		Actions	Triggers	Conditions
Short press	Turn the light / s on or off	✘	✘	-
Long press	Change the intensity of the light / s	✘	✘	-
Double press	Change the temperature of the light / s	✘	✘	-
Checking the battery status	Low battery alert pictogram on the object card	✘	✘	-

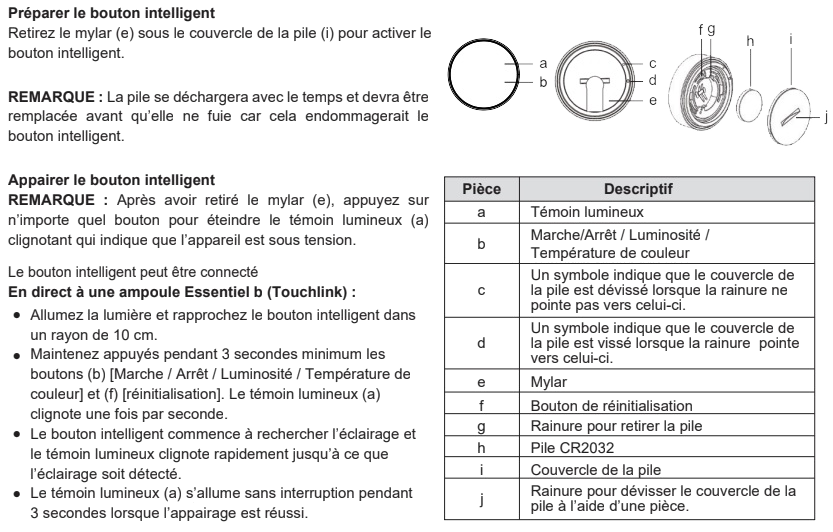

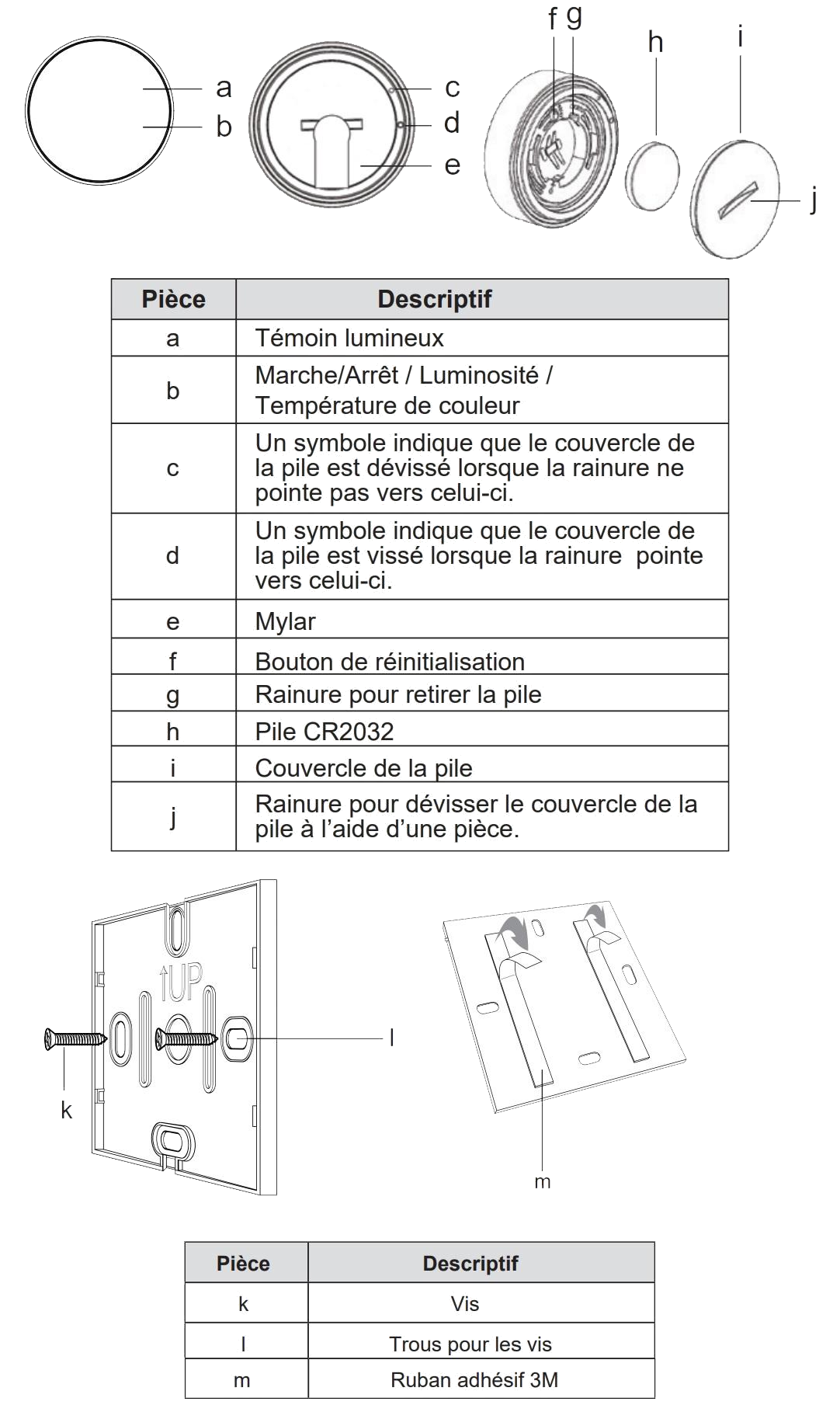

Product view:



What does the status of the smart button LED mean :

Blinking LED Not connected In pairing mode	LED freezes and goes out Pairing signal detected In progress	LED lights up briefly Paired Button Sending a command





Using the button directly on an ESSENTIEL B bulb without the ENKI box :

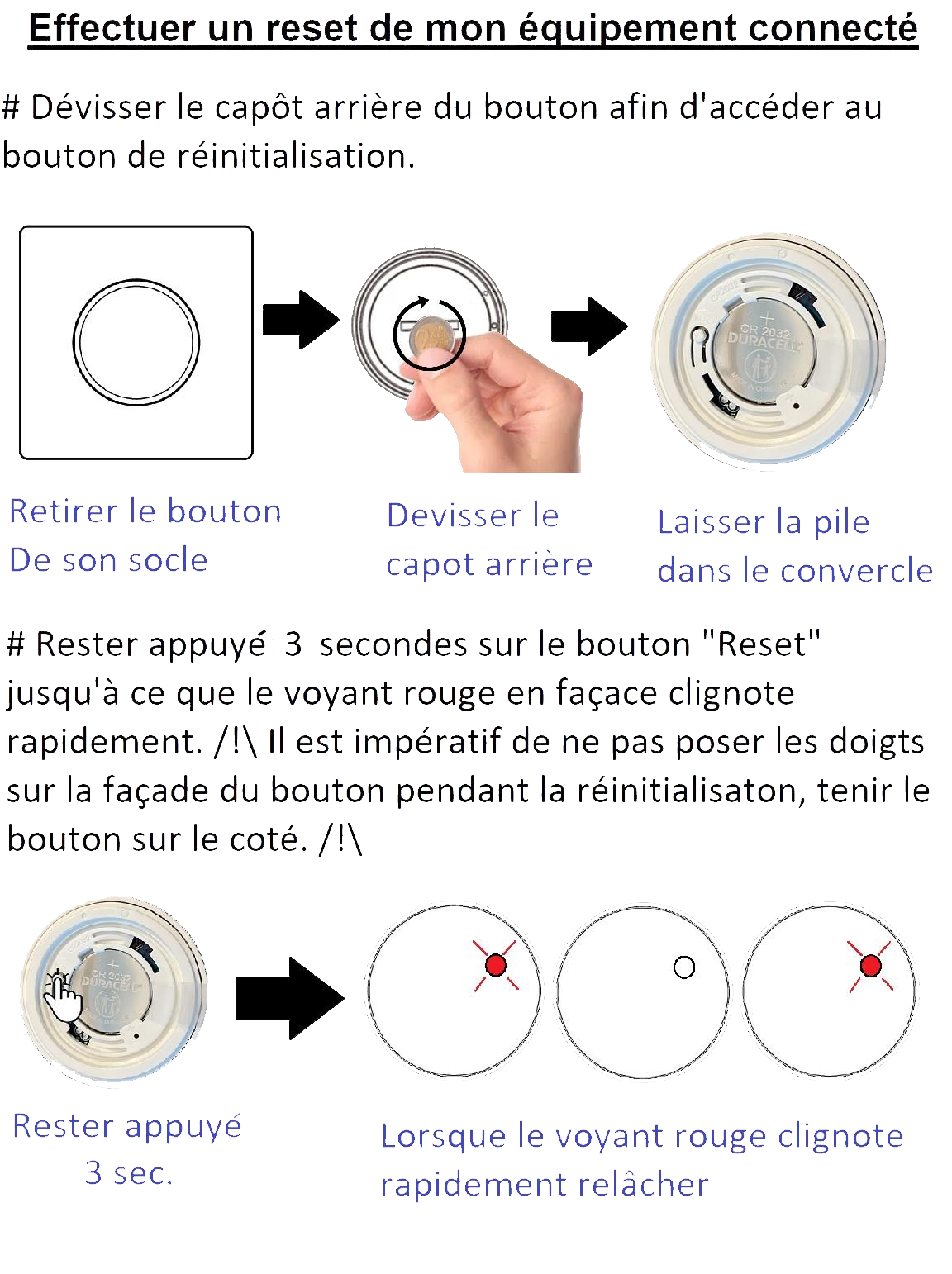

How to reset my product ?





Technical documents / user manual

Attachments :
