Prerequisites for installation and use:

• Enki app* + Enki Box

* Prerequisites for Enki application: Internet access and a phone with minimum operating system: Android: 7 / iOS: 15

Communication protocol:

• Enocean

Available country:

• France

Available status feedback:

• No

Alexa voice control:

• No

Google Home voice control:

• No

Article content:

• Technical description

• Product functionality in the ENKI application

• Product view

• How to reset my object?

• Technical documents / user manual

Technical description:

• Type: Batteryless connected remote control

• Requires the Enki box: Yes / Enki Box V1

• Power supply: None, no battery or batteries. Piezoelectric mechanism.

• Power supply: magneto-resistive (no battery)

• Protection rating: IP53

• Operating temperature: from 0°C to 40°C

• Radio protocol: EnOcean

• Central radio frequency: 868.3 MHz

• Frequency bands used: 868.0 to 868.6 MHz

• Maximum radio power: +3 dBm

• Signal range: 20-30 meters indoors

• EEP (EnOcean® Profile): F6-02-02

• Weight: 76g

• Dimension: 56 mm x 20 mm x 56 mm

Product functionality in the ENKI application:

Object functionality	Properties	Integration into a scenario
		Actions	Triggers	Conditions
Button +	Associate an action of a device or a scenario	✘	✔	-
Button -	Associate an action of a device or a scenario	✘	✔	-
Solid round button	Associate an action of a device or a scenario	✘	✔	-
Empty round button	Associate an action of a device or a scenario	✘	✔	-

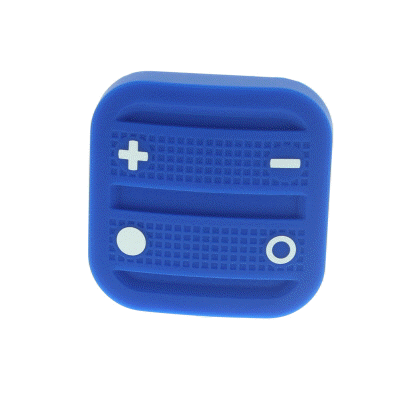

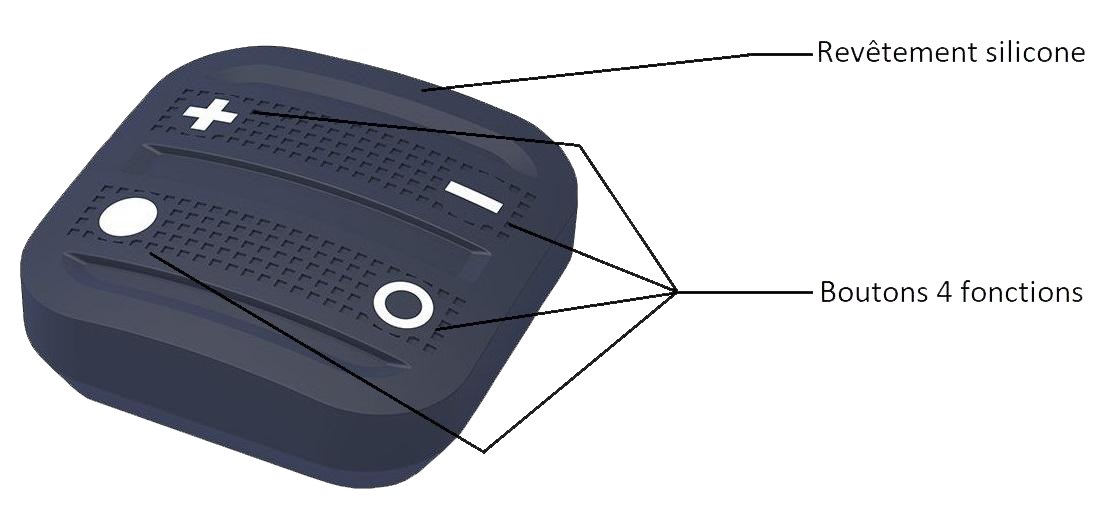

Product view:

How to reset my object?

Technical documents / user manual
