Prerequisites for installation and use:

• Application Enki* + Box Enki

* The Enki app requires internet access and a phone with the following minimum operating system: Android: 7 / iOS: 15



Communication protocol:

• Enocean

Available country:

• France

Status feedback available :

• No

Alexa voice control:

• No

Google Home voice control:

• No

Article content:

• Technical description

• Product functionality in the ENKI application

• Product view

• How can I reset my device?

• Technical documents / user manual





Technical description:

• Type: Wireless and batteryless single/double switch
• Requires the Enki box: Yes / Enki box V1
• Power supply: Magneto-resistive (batteryless)
• 4 buttons (2 channels) or 1 button (1 channel) are 2 included options
• Wall mounted by double-sided adhesive (included) or screws (not included)
• Operating temperature: 0°C to 40°C
• Altitude: 2000m
• Radio protocol: EnOcean®
• Radio frequency: 868.3 MHz
• Radio profile: F6-02-01
• Range: 30m in open field
• Dimensions: 80 mm x 80 mm x 15 mm



Product functionality in the ENKI application:

Device functionality	Properties	Integration into a scenario
		Actions	Triggers	Conditions
Top button	Associate an action from a device or scenario	✘	✔	-
Bottom button	Associate an action from a device or scenario	✘	✔	-

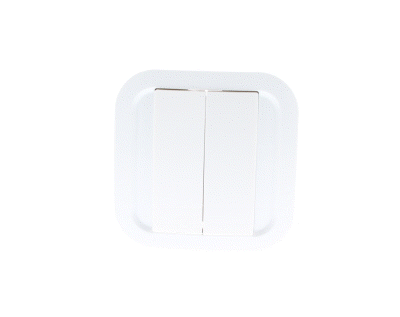

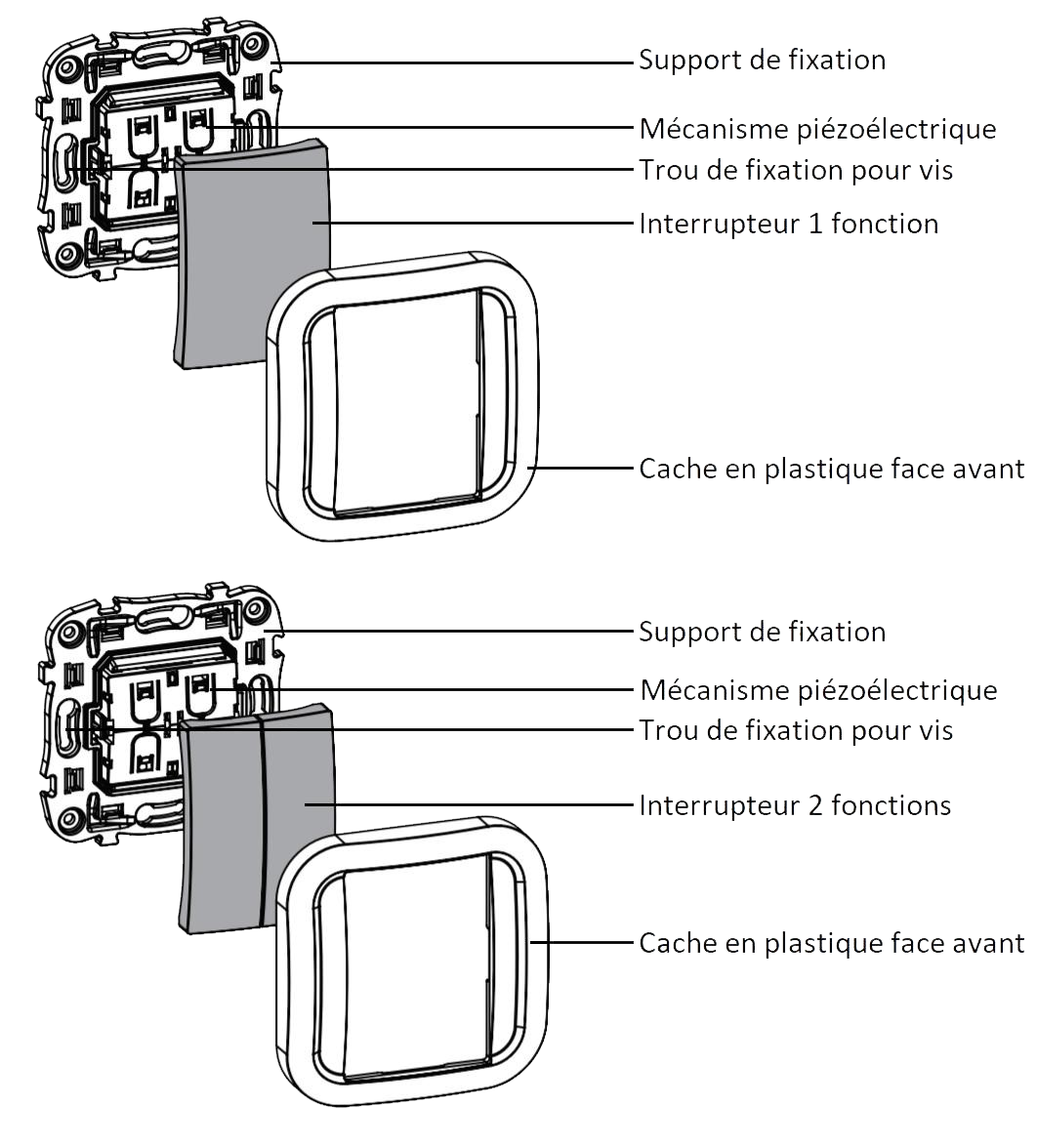

Product view:



How do I reset my device?







Technical documents / user manual
