Prerequisites for the installation and use of :

• Enki application* + Enki Box

* Prerequisites for the Enki application: Internet access and a phone with a minimum operating system: Android: 7 / iOS: 15



Communication Protocol:

• Enocean

Country available:

• France

State feedback available :

• No

Voice control Alexa :

• No

Voice control Google Home :

• No

Content of the article:

• Technical Specifications

• Product functionality in the ENKI application

• Product view

• How do I reset my object?

• Technical documentation / user manual





Technical description:

• Type: wireless and batteryless single/double radio switch

• Requires the Enki box: Yes / Enki box V1

• State feedback: Yes
• Dimensions: 85.2 mm x 85.2 mm x 1.76 mm
• Radio protocol: EnOcean
• Transmission frequency: 868.3 MHz
• Radio profile: F6-02-01 / Channel A (10040009.xx)
• Transmission power: 10 mW max.
• Power supply: Batteryless and wireless, with piezoelectric pulse
• Operating temperature: From -25°C to +65°C
• Storage temperature: From -25°C to +65°C
• Switching cycles: 100,000
• Degree of protection: IP20
• Relative air humidity: From 0% to 95%
• Installation altitude: 2000m max.
• Theoretical signal range of the product:

  • Masonry 20m, through 3 walls maximum
  • Reinforced concrete 10m, through 1 wall/ceiling maximum
  • Plasterboard / Wood 30m, through 5 walls maximum



Product functionality in the ENKI application:

Functionality of the object	Properties	Integration into a scenario
		Actions	Triggers	Conditions
Top button	Associate an action with a device or a scenario	✘	✔	-
Bottom button	Associate an action with a device or a scenario	✘	✔	-

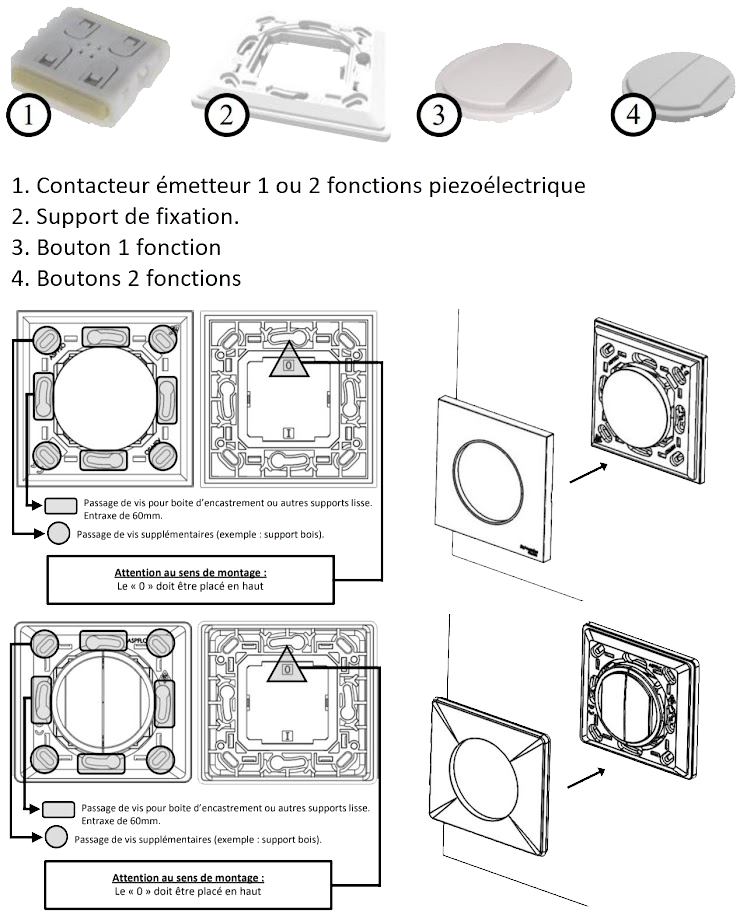

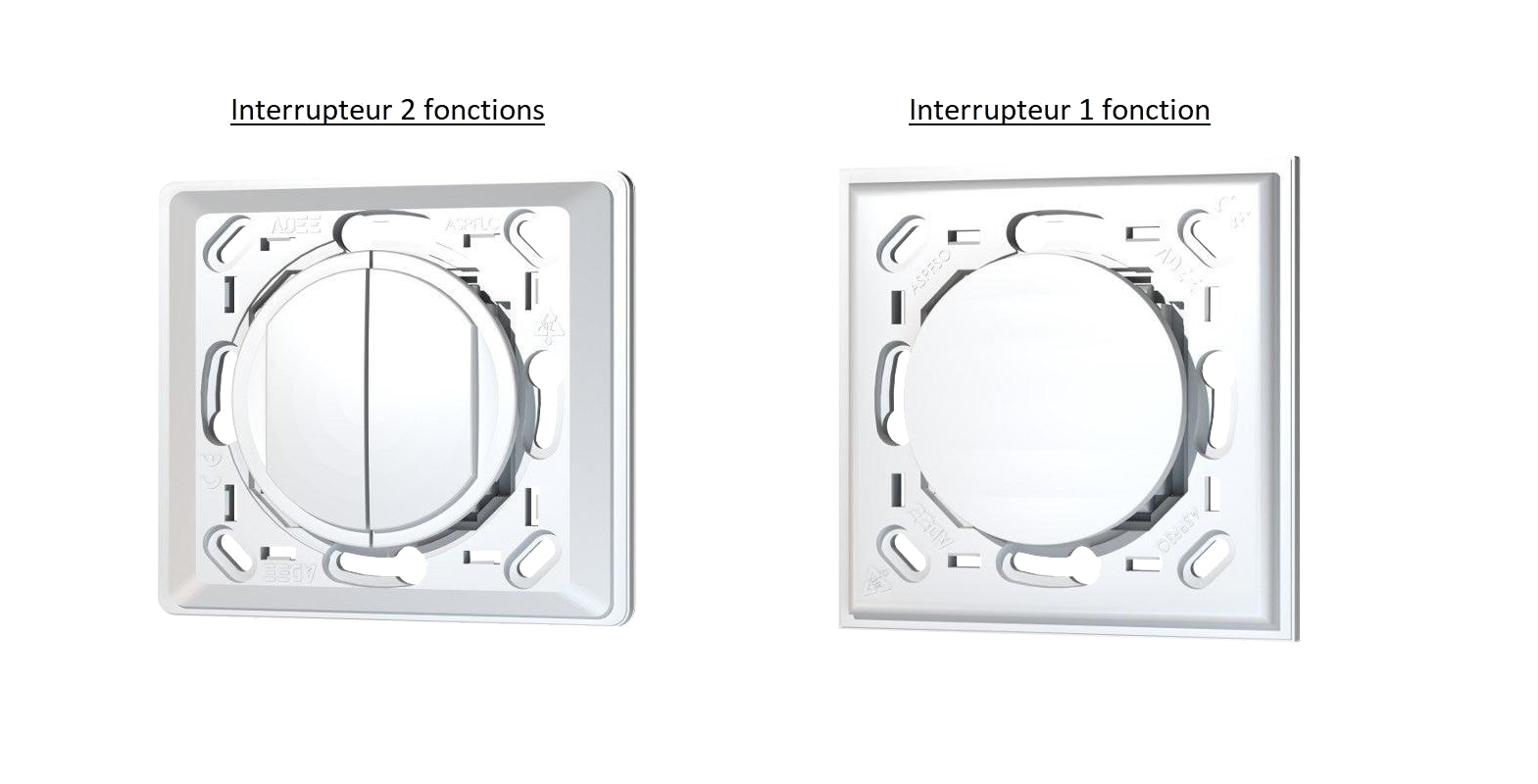

Product view:



How to reset my item?







Technical documentation / user manual
