Prerequisites for installation and use :
- Enki application* + Enki Box
Communication protocol :
- Enocean
Countries available :
- France
Status feedback available :
- Yes
Alexa voice control :
- No
Google Home voice control :
- No
Article content :
-
Technical description
-
Product functionality in the ENKI application
-
Product view
-
How do I reset my object?
-
Technical documents / user manual
Technical description :
- Type : Fluid inertia electric radiator
- Status feedback : Yes
- Requires Enki box : Yes / Enki box V1
- Power : 1000W, 1500W or 1800W
- Color : White or anthracite
- Dimensions : 597 mm x 574 mm x 80 mm
- Weight : 12 Kg
- Adjustment precision (in °C) : 0.5
- Mains voltage : 230V +/-10% AC 50 H
- Insulation class : Class II
- Degree of protection against water : IP24
- Operating temperature : 0 to 50°C
- Storage temperature : -20 to 70°C
- Operating humidity : 0 to 85% without condensation
- Regulation : Proportional and Integral
- Temperature setting resolution : 0.1 °C, Digital with adjustment knob
- Temperature scale : 5° to 37°C
- Standby consumption : < 0.5 W
- Network protocol : EnOcean
- Frequency band : 868 MHz
- Maximum transmitted radio frequency power : 3.2 dBm
Product functionality in the ENKI application :
| Object's functionality | Properties | Integration into a scenario | ||
| Actions | Triggers | Conditions | ||
| Change the target temperature of the thermostat |
Min : 7° / Max: 30° / Step : 0.5° |
✔ | ✘ | - |
| Programming |
Via the heating menu |
✘ | ✘ | - |
| Check / Retrieve power consumption |
Via the cumulative consumption and consumption history (day, week, month, year) |
✘ | ✘ | - |
| Recovering room temperature |
Min : 0° / Max: 40° / Step : 0.1° |
✘ | ✔ | - |

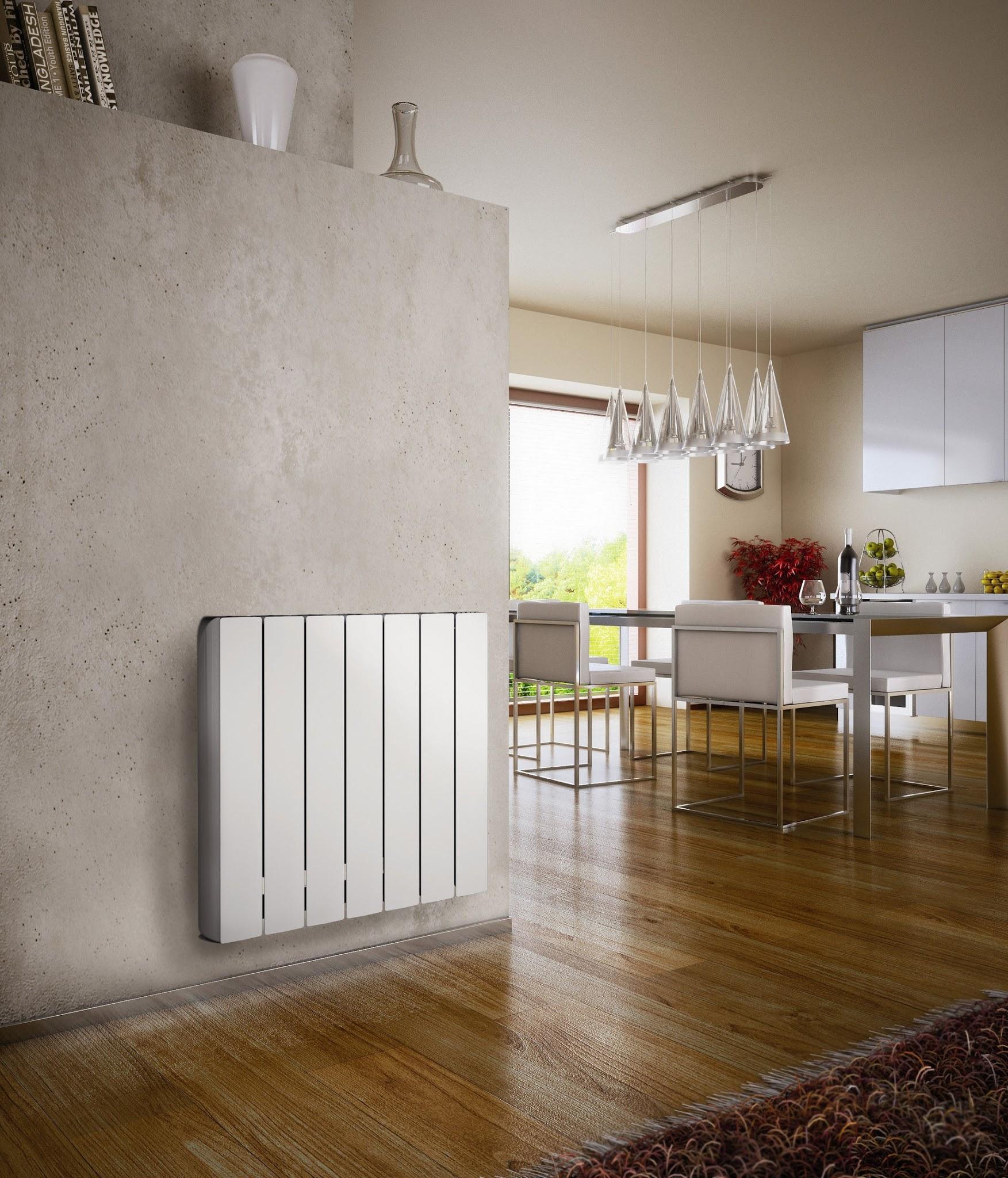

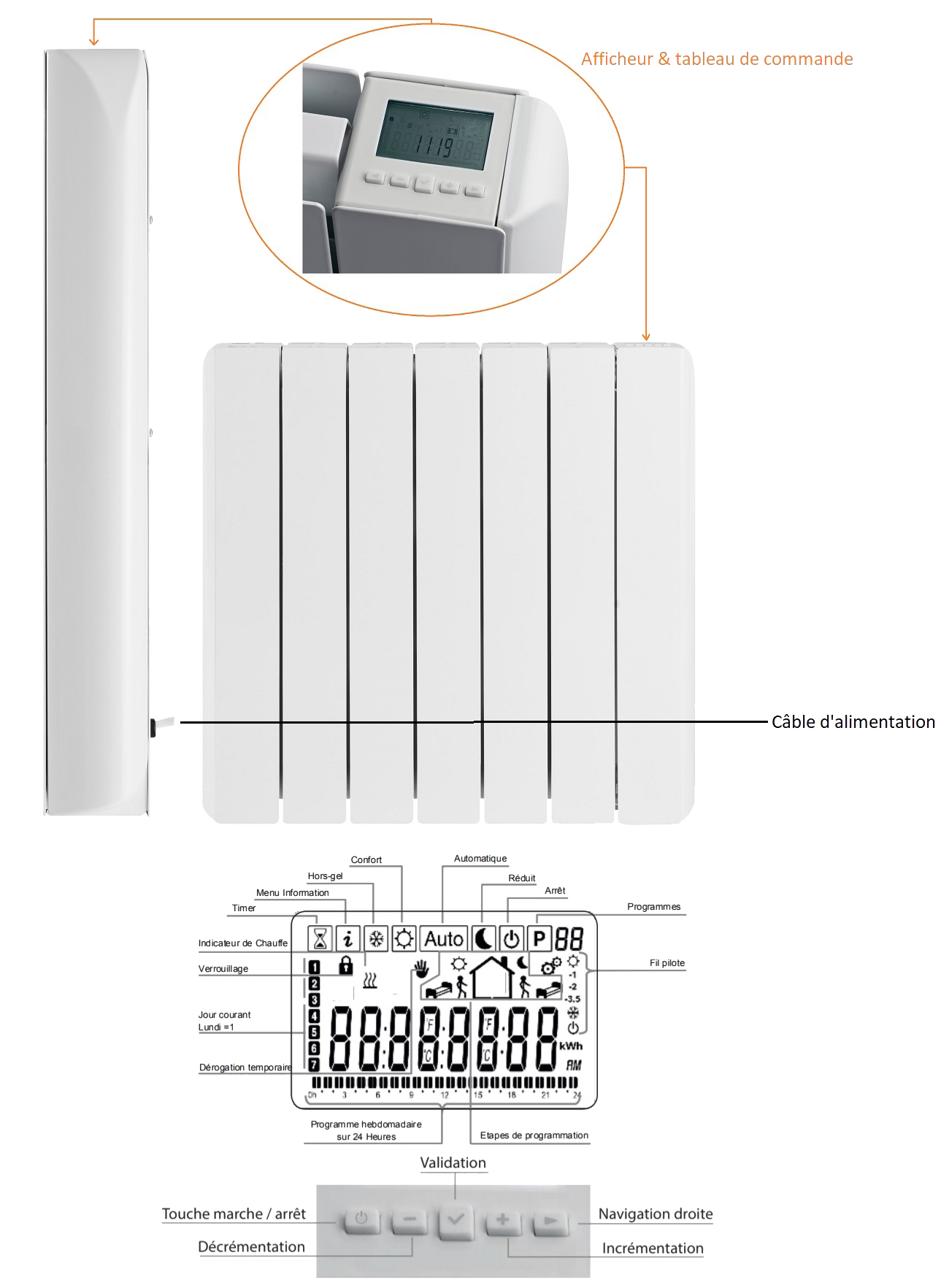

Product view :

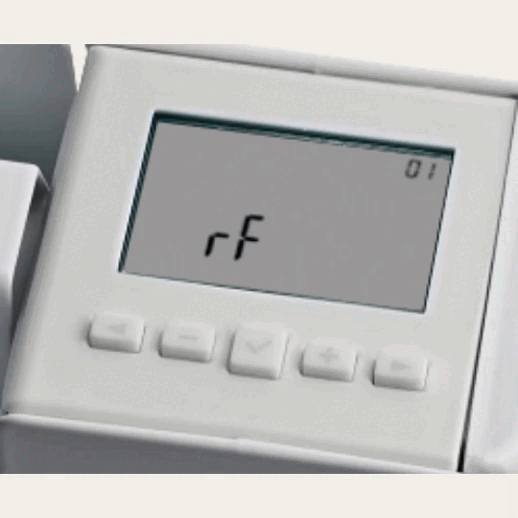

What does the state of the radiator display mean :
| Radiator not paired with the Enki box | Searching for signal to connect to the Enki box | Radiator paired with the Enki box | ||
| Heating of the heating in progress | Override activated (Manual mode) / The Enki box no longer has control |

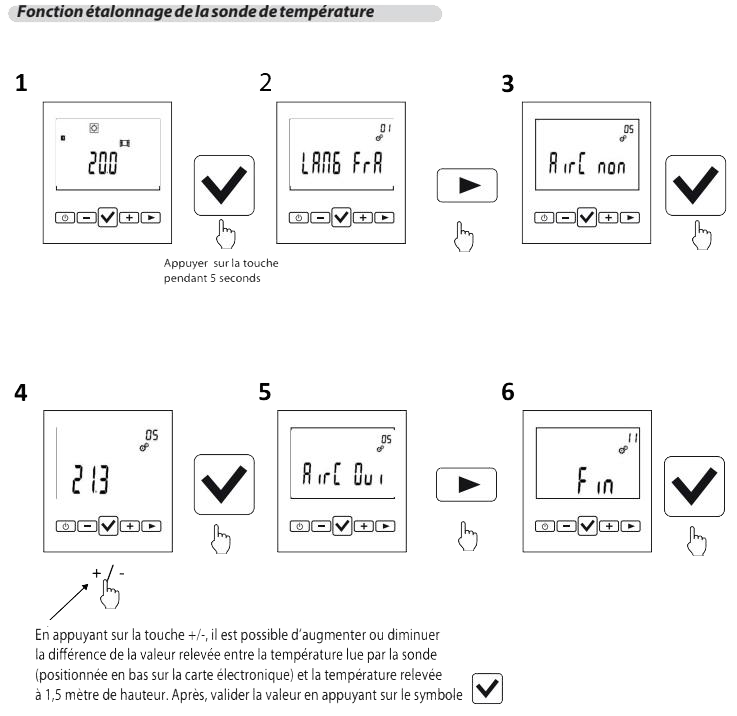

How can I calibrate my radiator?

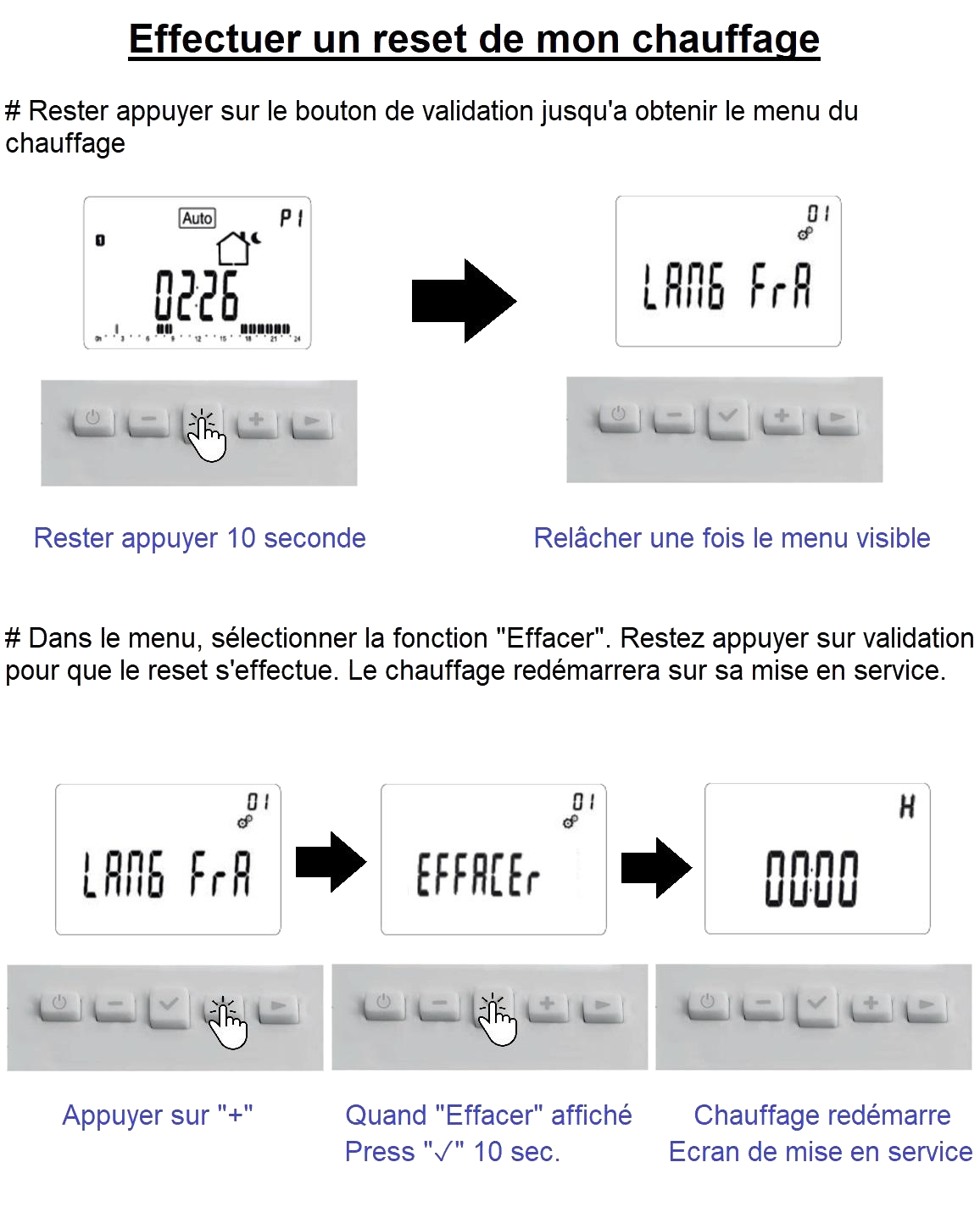

How can I reset my object?
