Prerequisites for installation and use :
- Application Enki* + Box Enki
Communication protocol:
- Enocean
Country available:
- France
Status feedback available:
- Yes
Alexa voice control :
- No
Google Home voice control :
- No
Article content:
-
Technical description
-
Product functionality in the ENKI application
-
Product view
-
How do I reset my object?
-
Technical documents/user manual

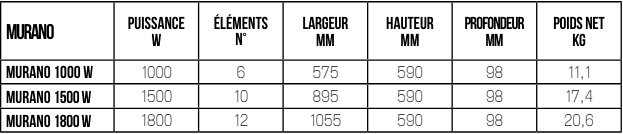

Technical description:
- Type: Electrically connected heating radiator with fluid inertia
- Status feedback: Yes
- Requires the Enki box: Yes / Enki B1
-
Colour: White or Grey
- Voltage: 230V +/-10% AC 50 Hz
- Insulation class: Class II
- Degree of water protection: IP24
- Operating temperature: 0 to 50°C
- Storage temperature: -15 to 70°C
- Operating humidity: 0 to 85% without condensation
- Regulation: Proportional and Integral
- Temperature setting resolution: 0.5 °C
- Temperature scale: 7° to 30°C
- Temperature resolution: Display at 0.1°C
- Standby power consumption: < 0.5 W
- Network protocol: EnOcean
- Frequency Band: 868 MHz / 868.6 MHz
- Maximum transmitted radio frequency power: 3.2 dBm
Product functionality in the ENKI application:
| Object functionality | Properties | Integration in a scenario | ||
| Actions | Triggers | Conditions | ||
| Changing the target temperature of the thermostat |
Min: 7° / Max: 30° / Step: 0.5° |
✔ | ✘ | - |
| Programming |
Via the heating menu |
✘ | ✘ | - |
| Checking / Retrieving electric power consumption |
Via the cumulative usage and the usage history (day, week, month, year) |
✘ | ✘ | - |
| Getting the ambient temperature |
Min: 0° / Max: 40° / Step: 0.1° |
✘ | ✔ | - |

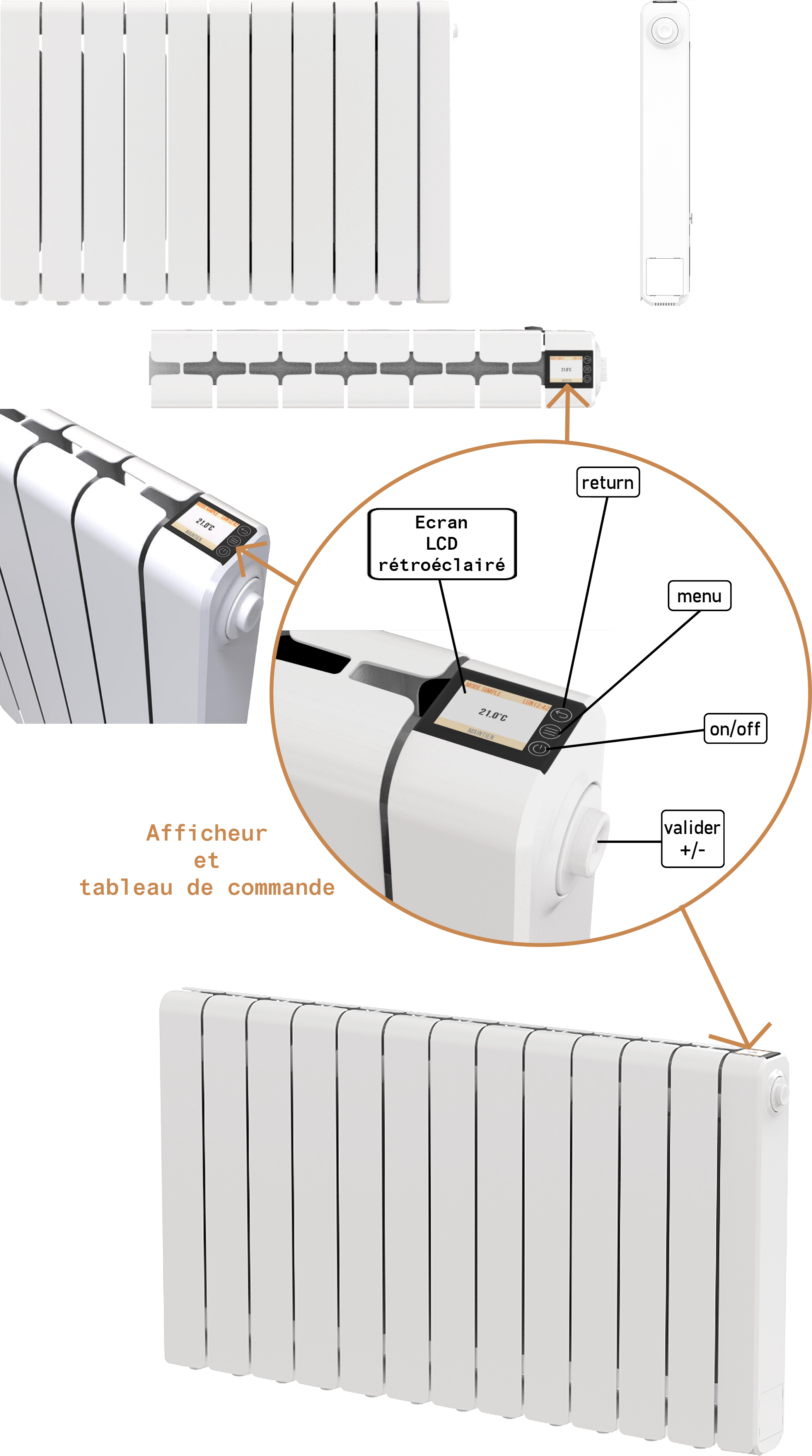

Product view:

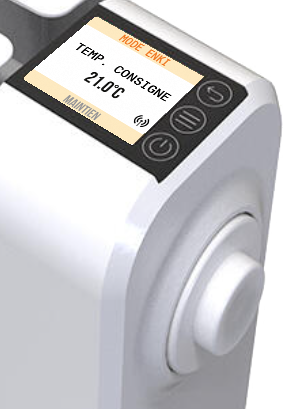

What does the radiator screen status mean:

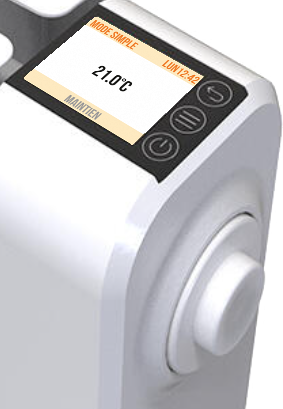

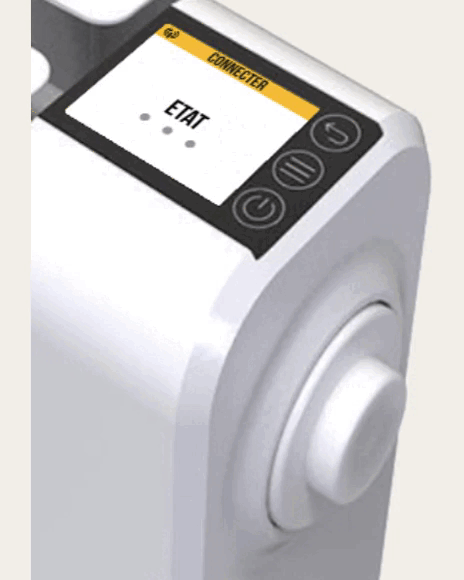

| Not connected to the Enki box | Searching for a signal to connect to the Enki box | Connected to the Enki box |

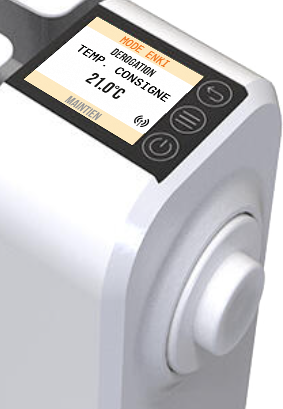

| Heating the heater in progress | Override enabled (Manual mode) / The Enki box no longer has control |

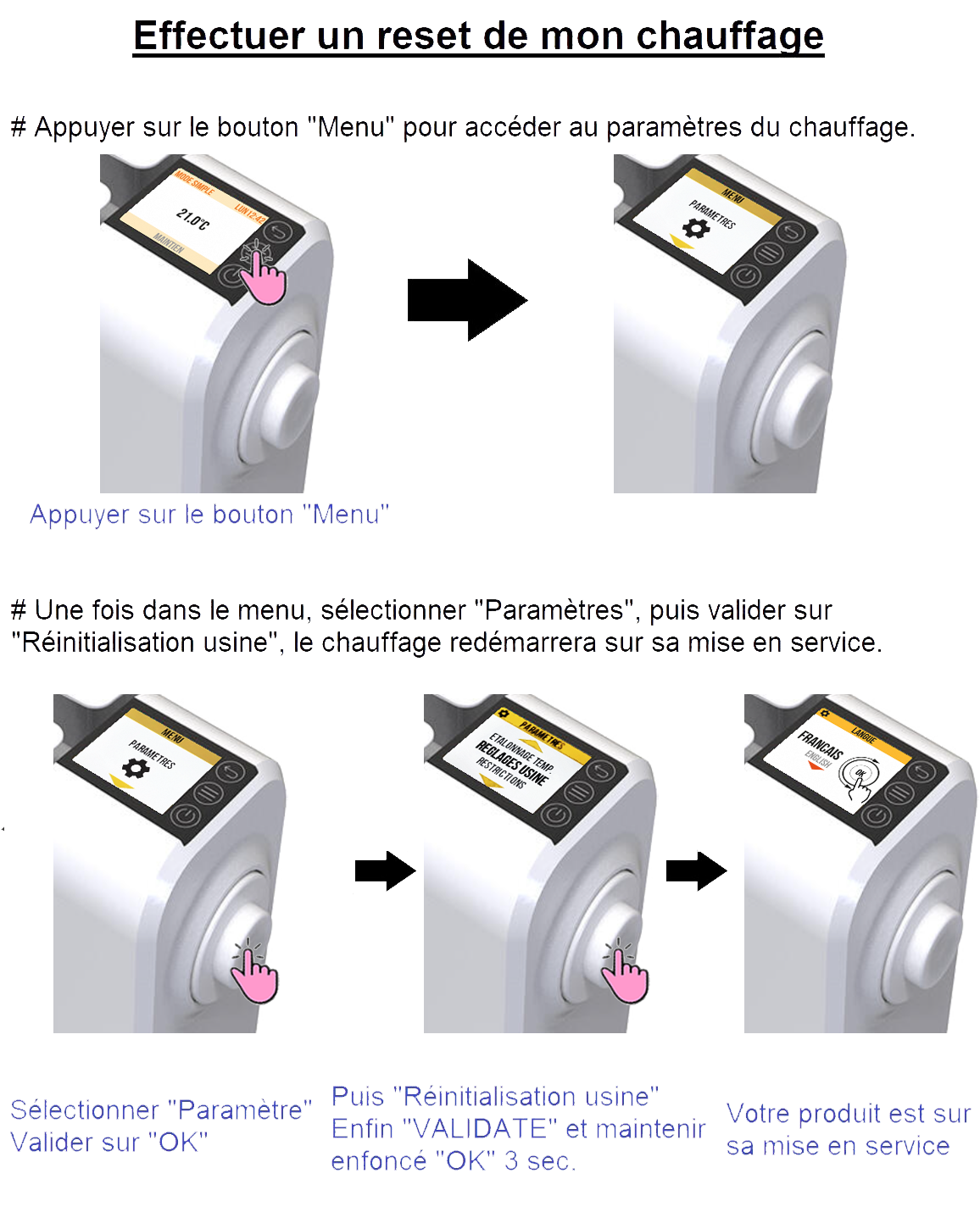

How to reset my object?
How to reset my object?
