Prerequisites for installation and use :
- Enki application* + Box Enki
Communication protocol:
- Enocean
Country available:
- France
Status return available :
- Yes
Alexa voice control :
- No
Google Home voice control :
- No
Article content:
-
Technical description
-
Product functionality in the ENKI application
-

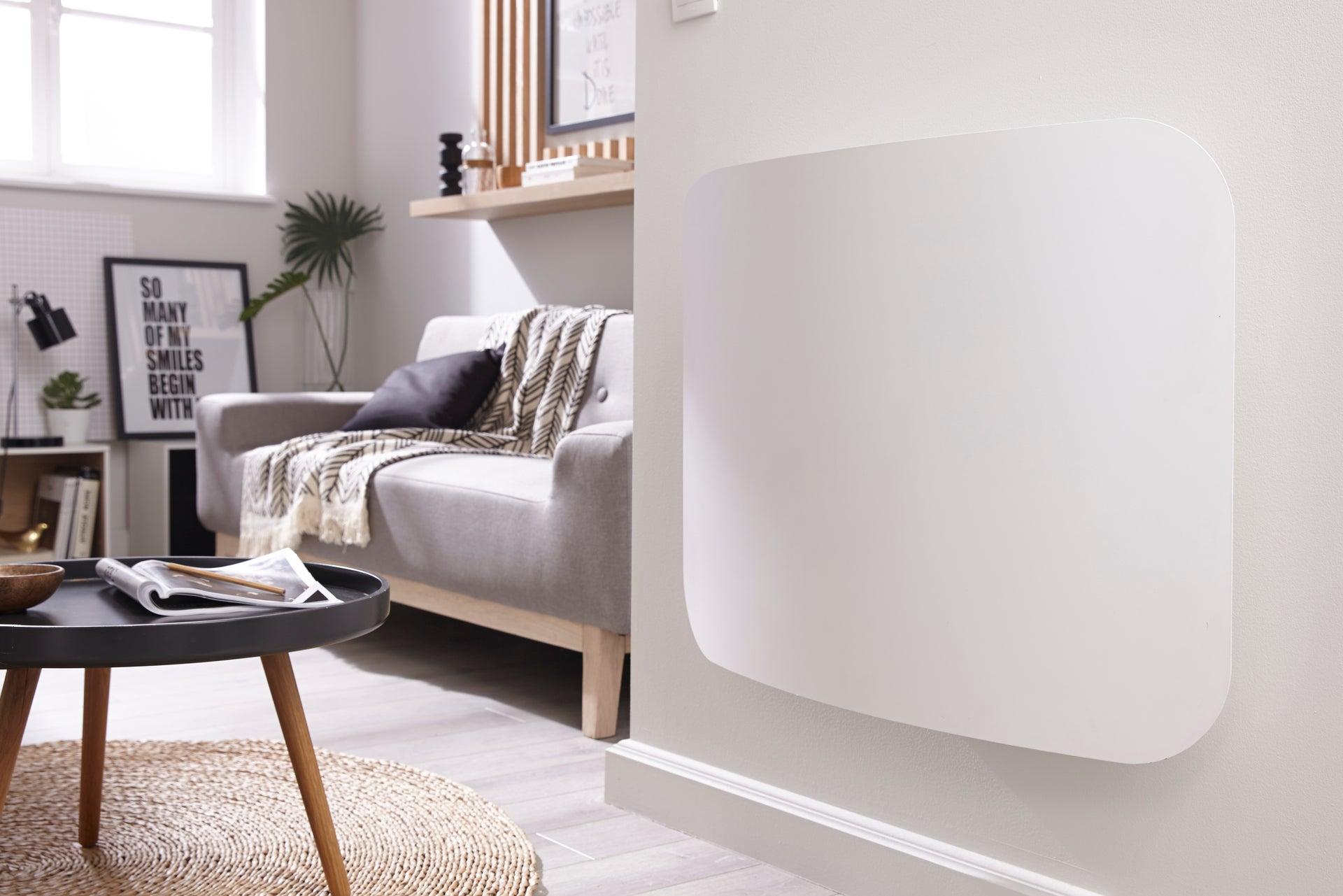

Product view
-
How to reset my object?
-
Technical documentation/user manual
Technical description:
- Type : Connected electric double-heating-system radiator
- Status feedback : Yes
- Requires the Enki box: Yes / ENKI V1 Box
- Power: 1000W, 1500W or 2000W
- Color: White or Silver grey
- Dimensions: 1085 mm x 580 mm x 147 mm
- Weight: 37 Kg
- Adjustment precision (in °C): 0.5
- Power supply voltage: 230V AC 50 Hz
- Insulation class: Class II
- Protection degree against water: IP24
- Operating temperature: 0 to 50°C
- Storage temperature: -20 to 70°C
- Operating humidity: 0 to 85% without condensation
- Regulation: Proportional and Integral
- Temperature setting resolution: 0.5 °C, Digital
- Safety thermostat triggering: 100 °C
- Temperature scale: 5° to 30°C
- Standby consumption: < 0.5 W
- Network protocol: EnOcean
- Frequency band: 868 MHz
- Maximum radio frequency power transmitted: 3 dBm
Product functionality in the ENKI application:
| Object functionality | Properties | Integration into a scenario | ||
| Actions | Triggers | Conditions | ||
| Change the thermostat's target temperature |
Min: 7° / Max: 30° / Step: 0.5° |
✔ | ✘ | - |
| Programming |
Via the heating menu |
✘ | ✘ | - |
| Check/Retrieve the power consumption |
Via the cumulative consumption and the consumption history (day, week, month, year) |
✘ | ✘ | - |
| Retrieving the room temperature |
Min: 0° / Max: 40° / Step: 0.1° |
✘ | ✔ | - |

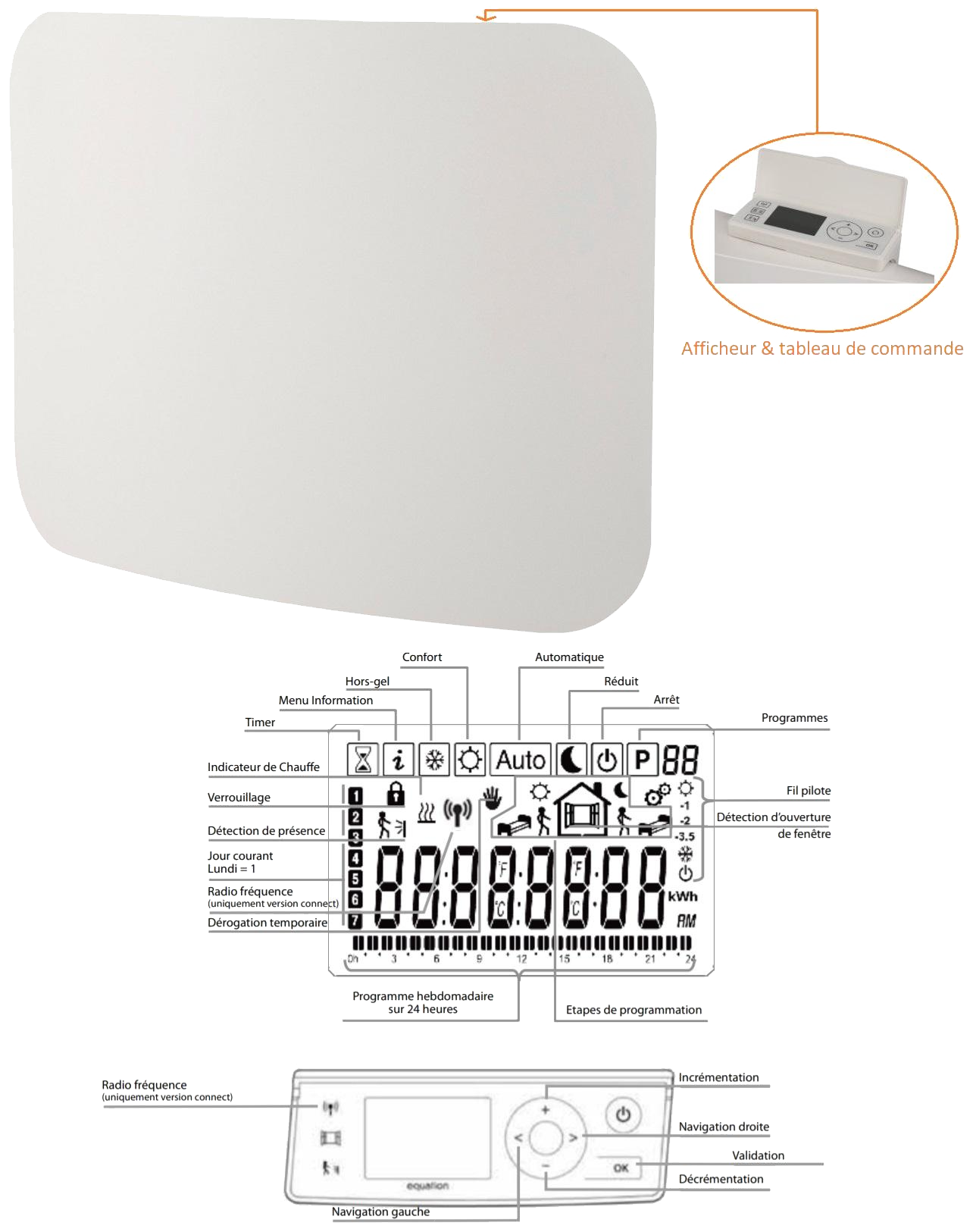

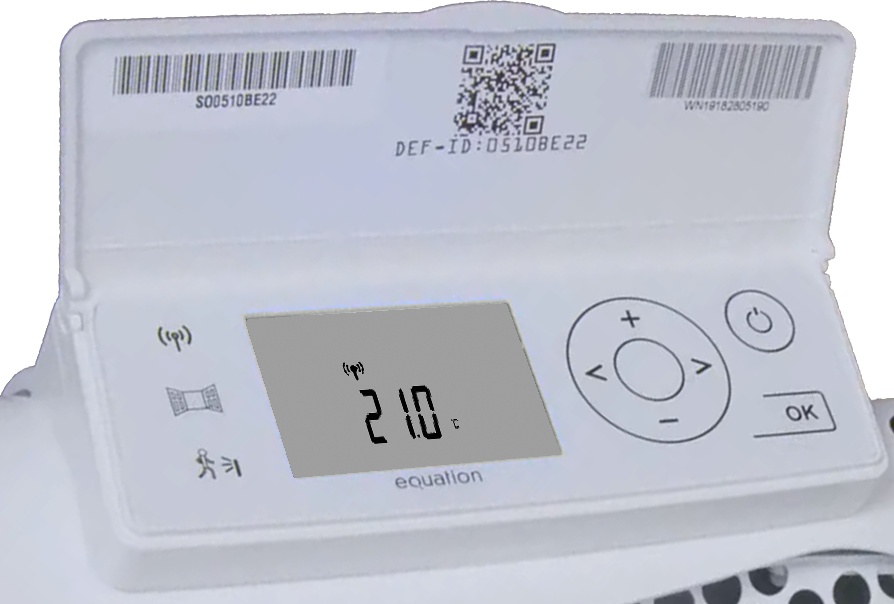

Product view:
What does the radiator's screen status mean:
|

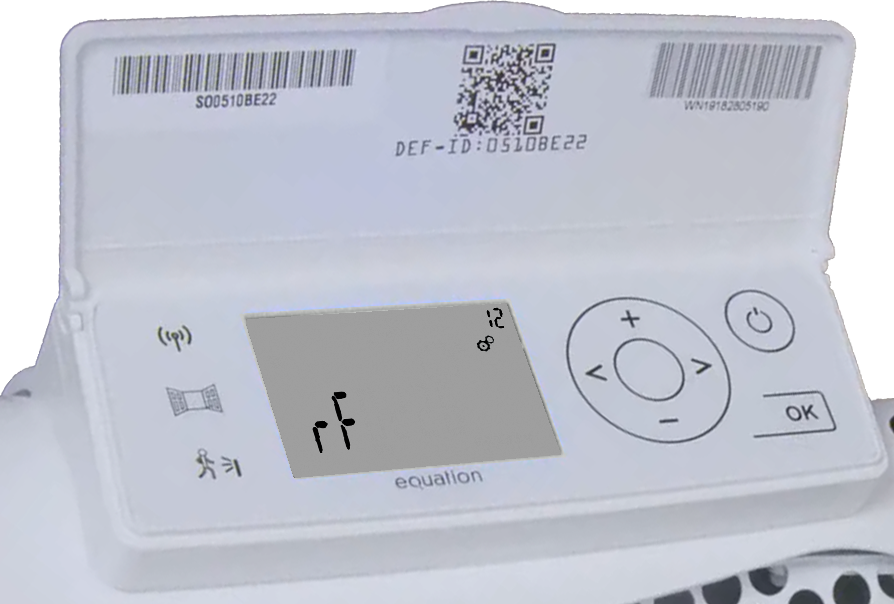

Radiator not paired with the Enki box
|
|
|

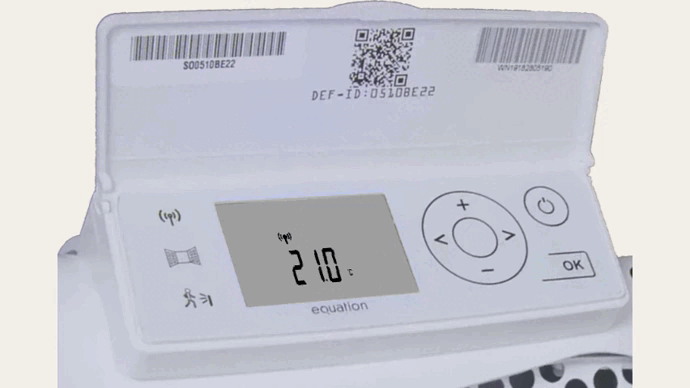

Radiator paired with the Enki box
|
|
|

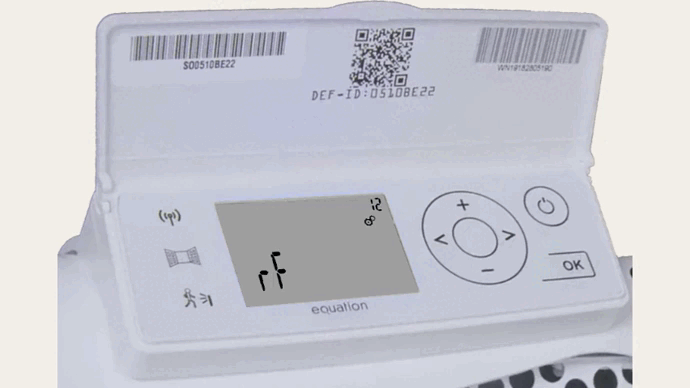

Searching for signal to connect to the Enki box
|
Receiving or sending a signal (Enocean frame) to the Enki box
|
|

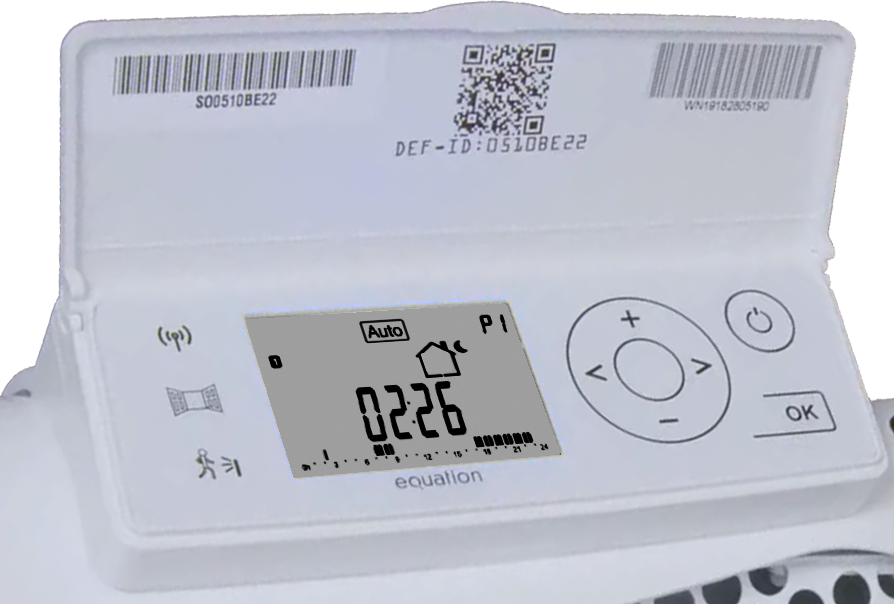

Heater heating in progress
|
Override activated (Manual mode) / The Enki box no longer has control
|

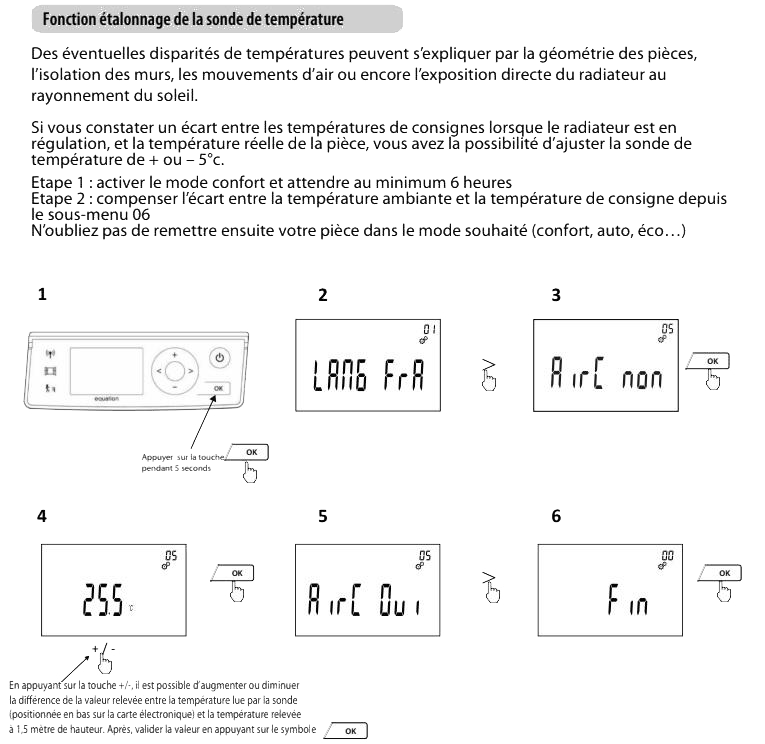

How to calibrate my object ?

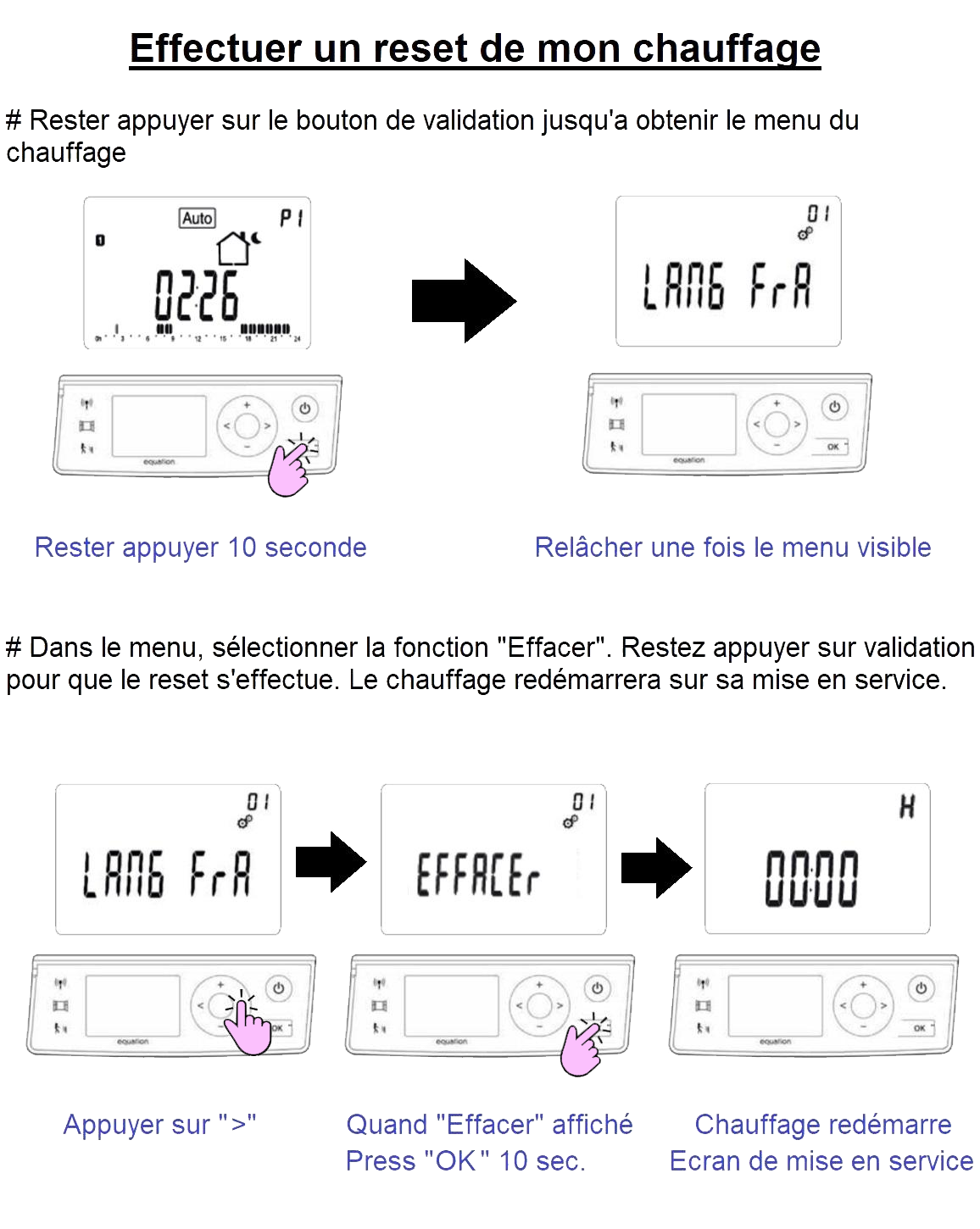

How to reset my object ?
