Prerequisites for installation and use:
- Enki application* + Enki box
Communication protocol:
- Enocean
Available countries:
- France
**Box Essentiel b Connect available in France only
Status feedback available:
- Yes
Alexa voice control:
- No
Google Home voice control:
- No
Article content:
-
Technical description
-
Product functionality in the ENKI application
-
Product view
-
How do I reset my device?
-
Technical documents / user manual
Technical description:
- Type: Dry inertia electric radiator connected
- Status feedback: Yes
- Requires the Enki box: Yes / Enki box V1
- Power: 1000W, 1500W or 2000W
- Color: White or silver gray
- Dimension: 961 mm x 600 mm x 102 mm
- Weight: 36.5 Kg
- Adjustment precision (in °C): 0.5
- Network voltage: 230V +/-10% AC 50 Hz
- Insulation class: Class II
- Degree of protection against water: IP24
- Operating temperature: 0 to 50°C
- Storage temperature: -20 to 70°C
- Operating humidity: 0 to 85% without condensation
- Regulation: Proportional and Integral
- Temperature adjustment resolution: 0.1 °C, Digital with adjustment button
- Safety thermostat tripping: 110 °C
- Temperature scale: 5 to 37°C
- Standby consumption: < 0.5 W
- Network protocol: EnOcean
- Frequency band: 868 MHz
- Maximum transmitted radio frequency power: 3.2
Product functionality in the ENKI application:
| Object functionality | Properties | Integration in a scenario | ||
| Actions | Triggers | Conditions | ||
| Change the thermostat target temperature |
Min : 7° / Max : 30° / Step : 0.5° |
✔ | ✘ | - |
| Programming |
Via the heating menu |
✘ | ✘ | - |
| Check / Retrieve electricity consumption |
Via cumulative consumption and consumption history (day, week, month, year) |
✘ | ✘ | - |
| Retrieving the ambient temperature |
Min : 0° / Max : 40° / Step : 0.1° |
✘ | ✔ | - |

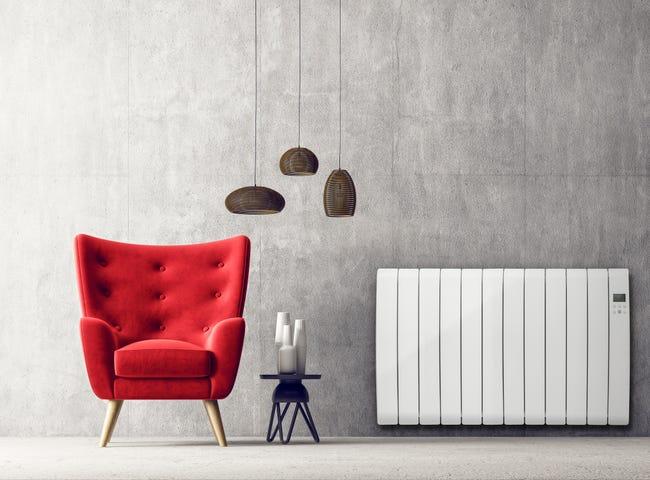

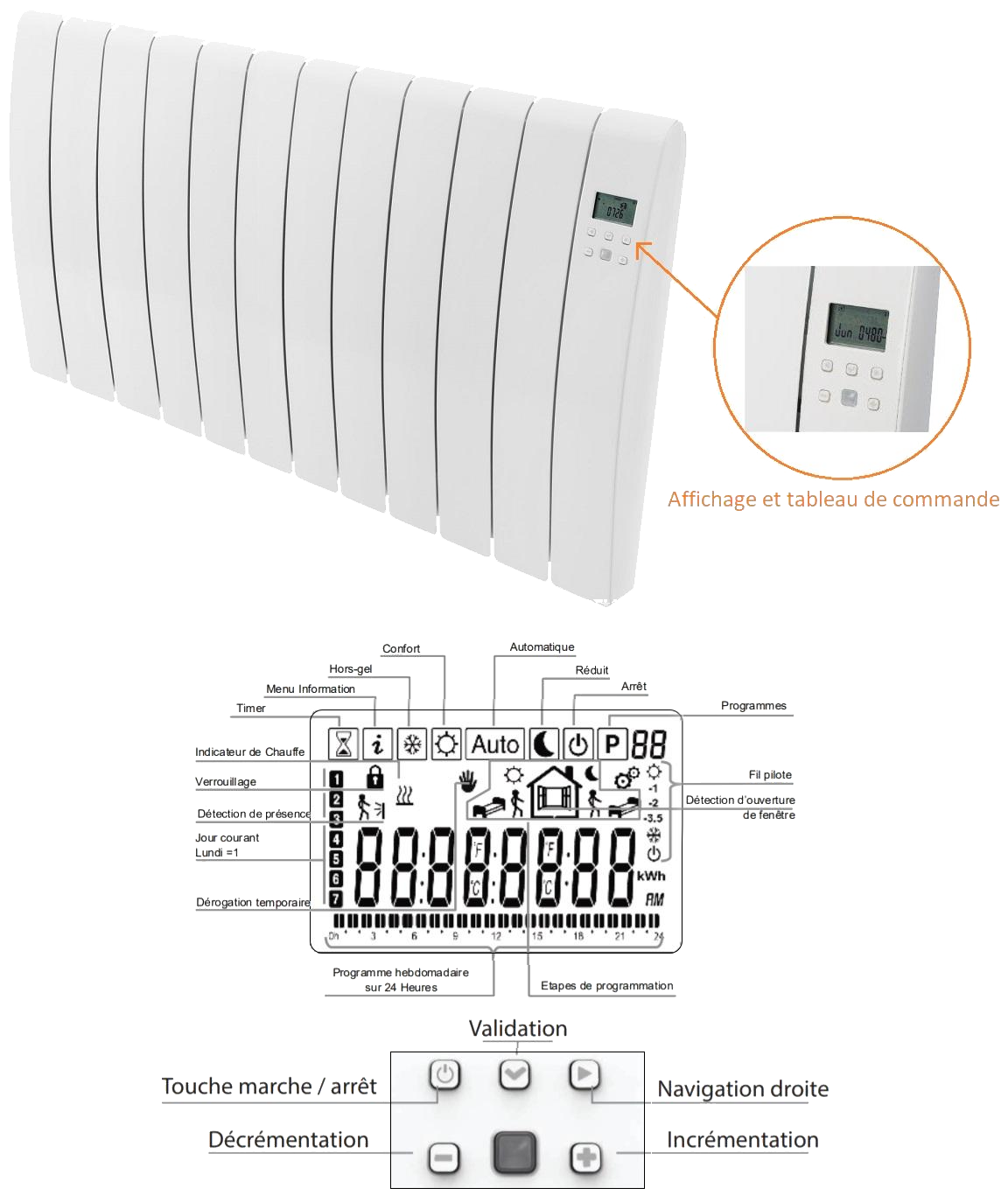

Product view:

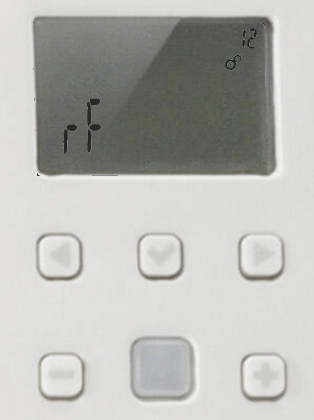

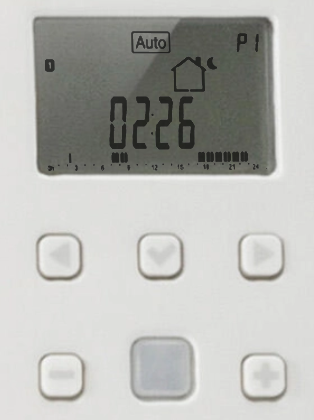

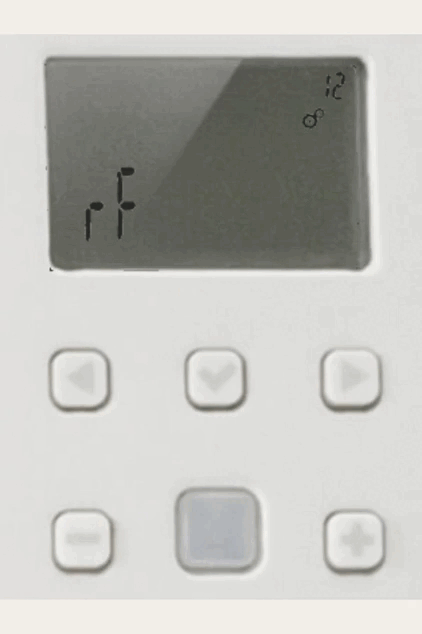

What does the radiator screen status mean:
| Radiator not paired with the Enki box | Searching for signal to connect to the Enki box | Radiator paired with the Enki box | ||
| Heating is currently on |
Override activated (Manual mode) / The Enki box no longer has control |
How do I reset my device?
