Required for installation and use:
- Enki application* + Enki Box or Enki Connect/Essentiel b Connect Box
Communication protocol:
- Zigbee
Available Countries:
- France**
- Spain
- Italy
- Poland
- Portugal
**Essentiel b Connect Box available in France only
Status return available :
- Yes
Alexa Voice Control:
- not directly, but possible through manual scenarios
Google Home Voice Control:
- not directly, but possible through manual scenarios
Article content:
-
Technical description
-
Product features application in ENKI
-
Product view
-
How to reset my product?
-

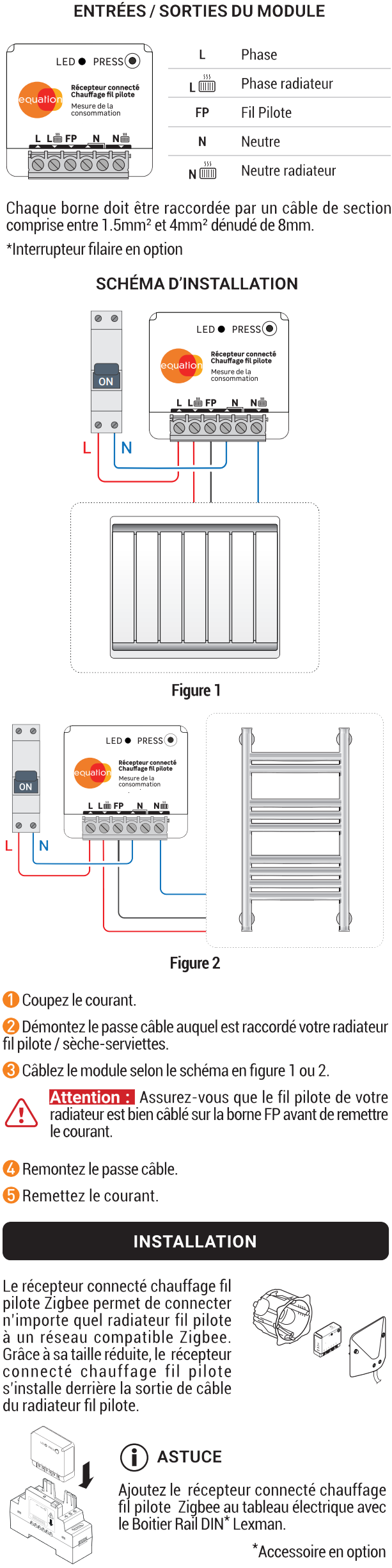

Tech docs/user manual
Technical description:
- Type: Embedded connected module with a wire pilot
- Requires ENKI box: Yes/ENKI Box V1 - ENKI Connect Box
- Status return: Yes
- Reference: SIN-4-FP-21_EQU
- Radio protocol: Zigbee 3.0
- Radio frequency: 2.4 GHz
- Maximum radio power: +10 dBm
- Range: Up to 10 m indoors
- Operating temperature: -20°C to 40°C
- Degree of protection: IP20
- Dimensions: 40 mm (w) x 44 mm (L) x 16.9 mm (h)
- Weight: 34g
- Power supply: 230 V AC ~ 50 Hz
- Switching capacity: 230 V AC - 16A
- Consumption: <1 W
- Max power: 3680W
- Measurement of instantaneous power (W) and cumulative energy (Wh): Requires the ENKI box
- Warranty: 5 years
Product features application in ENKI:
| Object features | Properties | Integration in a scenario | ||
| Actions | Triggers | Conditions | ||
| Change the thermostat temperature target mode |
OFF/Frost protection/Economy/Comfort/Comfort -1/Comfort -2 |
✔ | ✔ | ✔ |
| Programming |
Via the heating menu |
✘ | ✘ | ✘ |
| Check/Retrieve electricity consumption |
Via the cumulative consumption and consumption history (day, week, month, year) |
✘ | ✘ | ✘ |

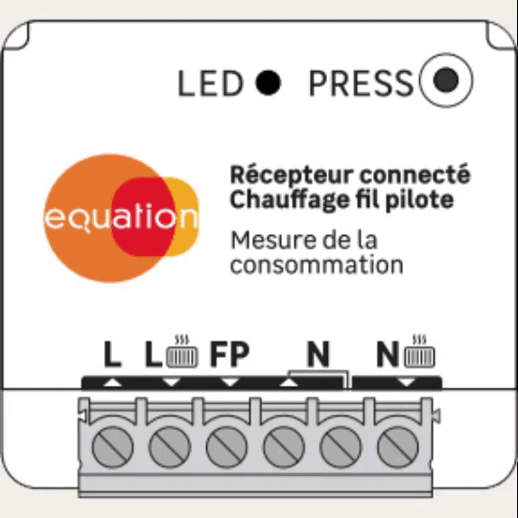

Product view:
What does the status of the LED on my object mean:
|
Listening mode Not connected |
Pairing signal detected Registering |
Paired Connected |

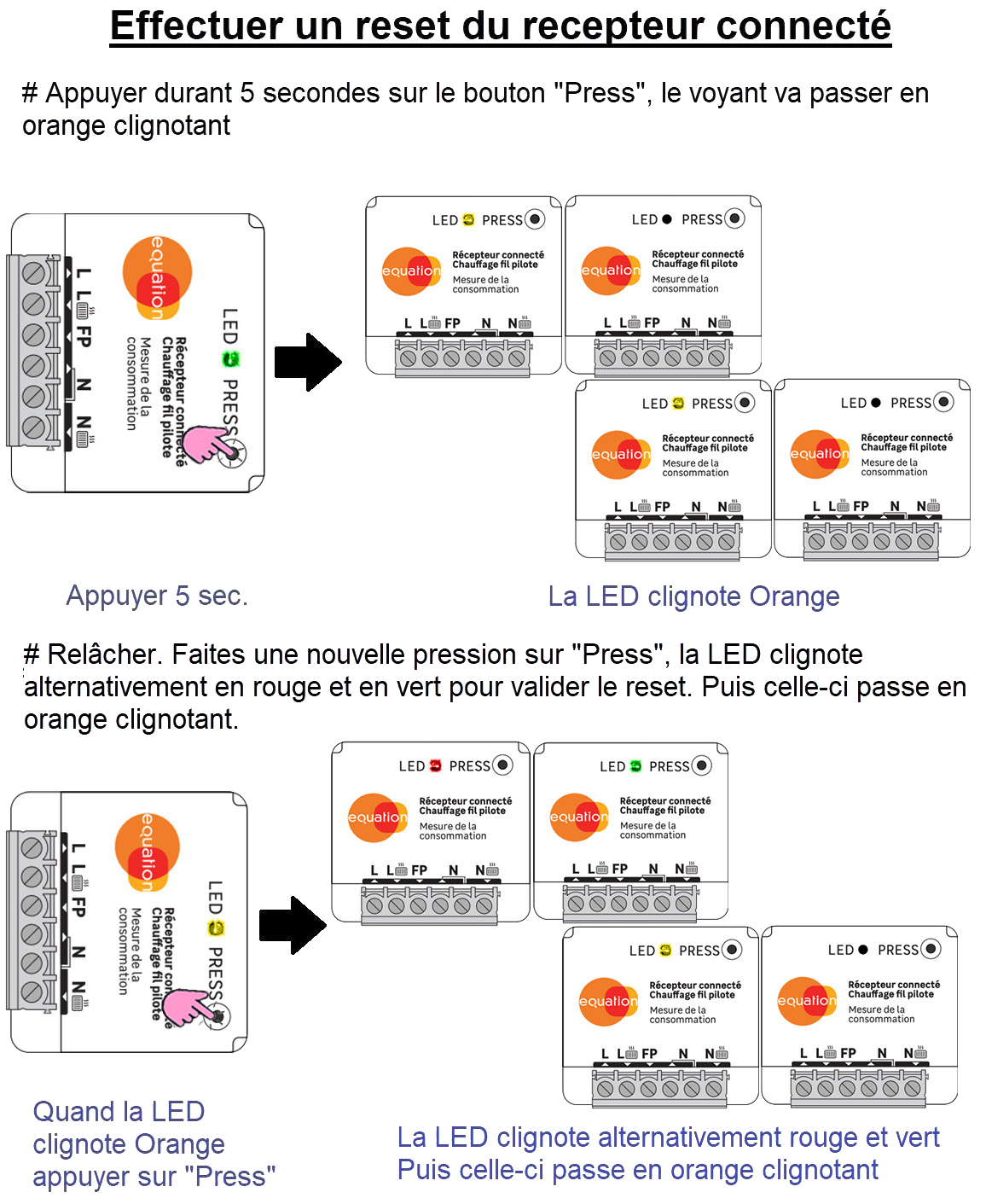

How to reset my object?
