Prerequisites for installation and use :

• Enki application* + Enki Box or Enki Connect / Essentiel b Connect Box



Communication protocol:

• Zigbee

Available countries:

• France**
• Spain
• Italy
• Poland
• Portugal

**Essentiel b Connect Box only available in France

Status feedback available :

• Yes

Alexa voice control :

• Yes

Google Home voice control :

• Yes

Article content:

• Technical description

• Product features in the ENKI application

• Product view

• How to reset my device?

• Technical documentation / User manual





Technical description:

• Type: Smart plug
• Requires Enki Box: Yes / Enki Box V1 - Enki Connect Box
• Status feedback: Yes
• Communication protocol: Zigbee
• Frequency: 2405-2480MHz
• Maximum radio frequency output: 20 dBm
• Operating temperature: 0 to 35°C
• Dimensions: 80.18mm x 60.2mm x 60.2mm
• Power supply: 230V~50Hz
• Maximum load current: 16A
• Maximum power output: 3680W (Resistive load)
• Electrical insulation: Class 1
• Degree of pollution: Degree 2



Product features in the ENKI application:

Device features	Properties	Integration into a scenario
		Actions	Triggers	Conditions

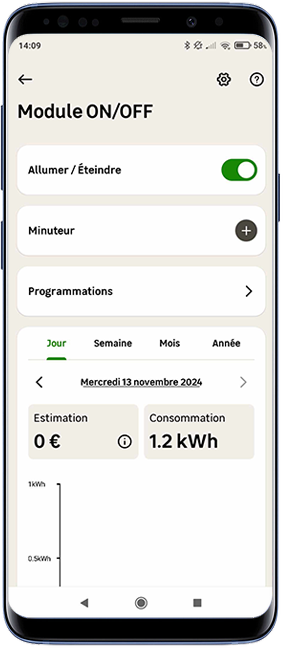

Turn on / Turn off	Product "ON" - "OFF" function	✔	✔	✔

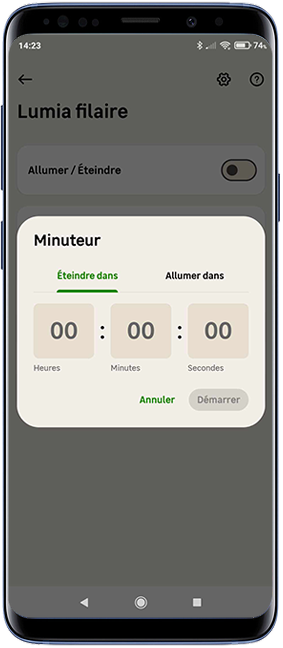

Timer function: Turn off in / Turn on in	Set a time during the day to "OFF" or "ON" the device	✘	✘	✘
Timer function: Cancel the timer	"STOP" the "switch off in or switch on in" time	✘	✘	✘

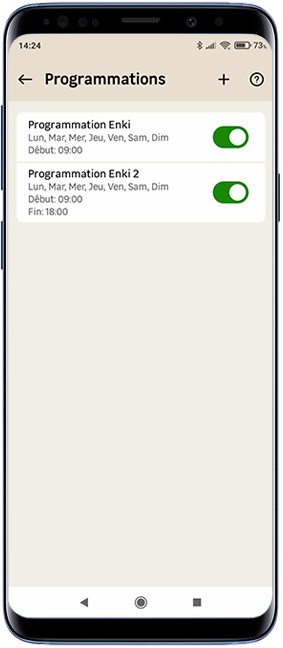

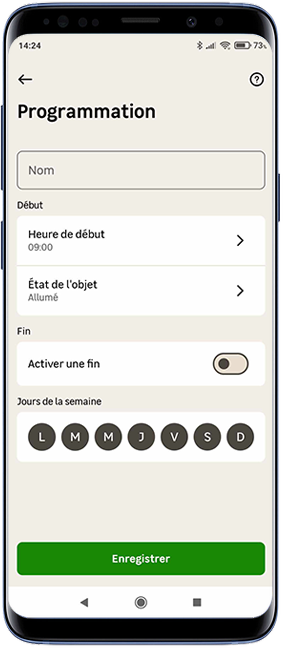

Programming	Set a start time and device state Set an end time and device state (optional) Choose the days of execution	✘	✘	✘

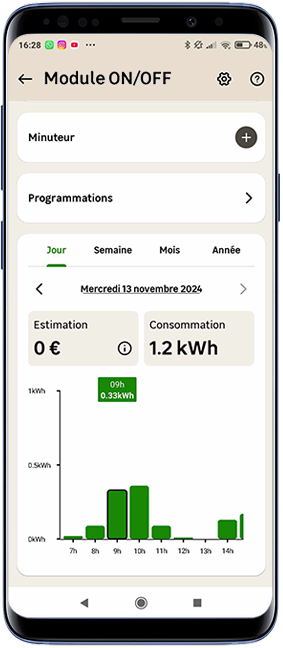

Check / Retrieve power consumption	Via cumulative consumption and consumption history (day, week, month, year)	✘	✘	✘



Product view:



What does the LED status on my device mean:

Blinking green slowly	Freezes in green 9 seconds and goes off	Blinking red quickly	Green fixed	Switched off
Factory state Ready for pairing	Pairing signal detected, registering the product	Resetting in progress	Plug on, allows current to pass	Plug off, does not allow current to pass



How to reset my device?









Technical documentation / User manual
