* Requirements for the Enki application: Internet access and a telephone with a minimum operating system: Android: 7 / iOS: 15

Article content:

Technical description:

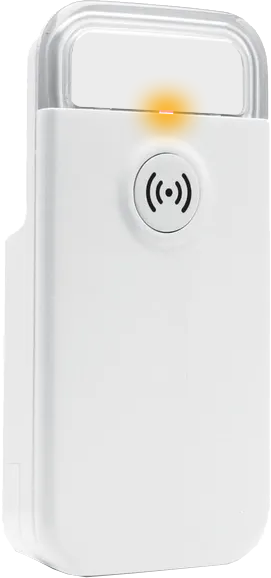

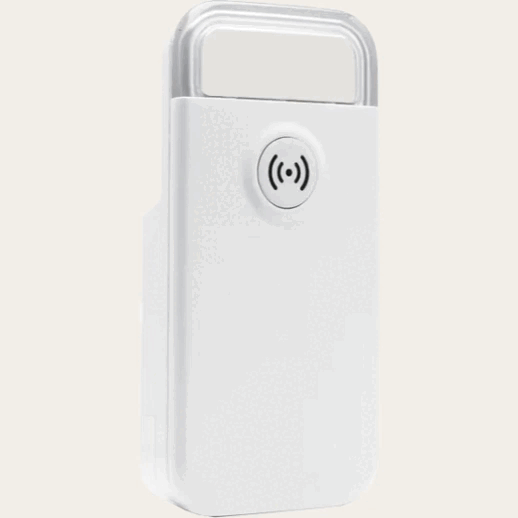

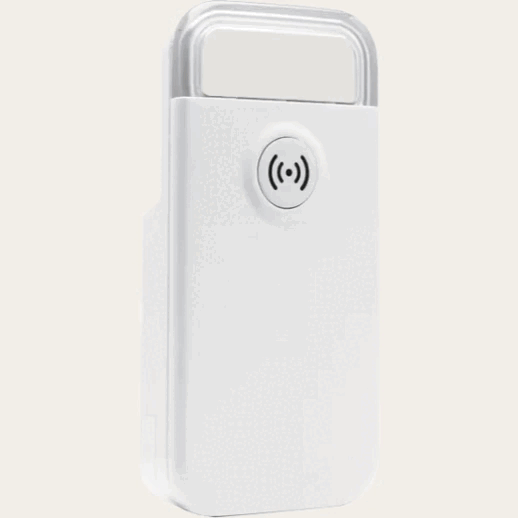

Type: Connected receiver for boiler.
Requires the Enki box: Yes / Enki Box V1
Status feedback: Yes
Size: 55 mm x 120 mm x 24 mm
Maximum power of the device: controlled 1150 W – 5 A
Features:
- ON/OFF control of the boiler
- Repeater function
Connection: To be connected to the thermostat control input of the boiler or to the power supply of the circulator
Cable section: Up to 2.5 mm²
Indoor use only
Operating temperature: 0 °C/+40 °C
Storage temperature: -20 °C/+70 °C
Power supply: 230 Vac / 50 Hz
Average consumption: < 1 W
Installation: Wall-mounted, flush-mounted (dowels and screws provided)
Colour: Sand / Pure white
Protection: IP20
Weight: 80 g
Radio profile:
- Radio protocol: EnOcean / Profile D2-O1-O1
- Radio frequency: 868.3 MHz
- Bit rate: 125 kbit/s
- Modulation: ASK
- Transmit power: +5 dBm (EIRP)
- Radio range (Theoretical values provided by the manufacturer):
  - In open field: 30m
  - Masonry: 20m, through 3 walls at most
  - Reinforced concrete: 10m, through a wall/ceiling at most.
  - Plasterboard/Wood: 30m, through five walls at most.

Object functionality	Properties	Integration in a scenario
Object functionality	Properties	Actions	Triggers	Conditions

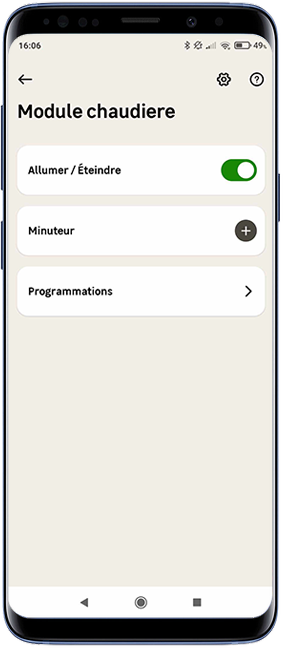

Turn on / off	On - Off function of the product	✔	✔	✔
