Summary:
This article explains how to use your device in a scenario and presents different options. Note that the examples provided do not cover all possibilities.
Introduction
How do I create one?

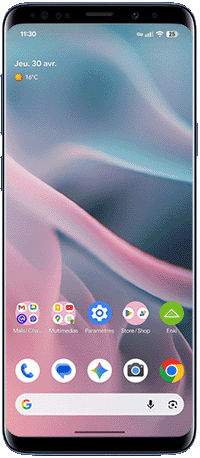

How to create a scenario
| Android: | iOS: |
|

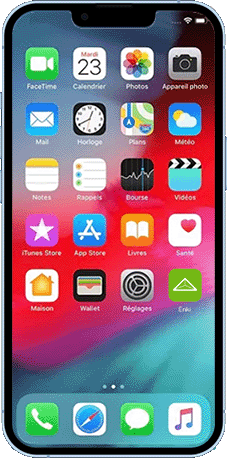

1. Open the Enki app by tapping its icon " 2. Click "Scenarios" in the menu bar at the bottom. 3. To create a scenario, tap the "+" icon on the right. | |
|

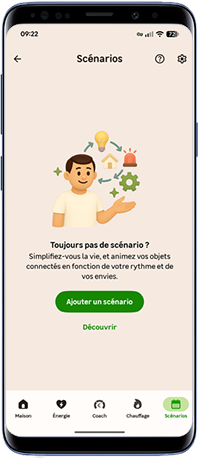

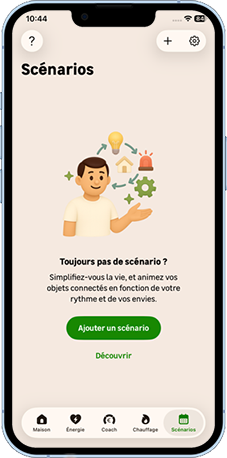

What happens if no scenario appears in the "Scenarios" menu of the Enki app?
|
Features
| To learn about your scenario's features, click this link |
Perform one or more actions with my device
This type of scenario, called a manual scenario, requires a deliberate action to start it, such as activation through the app, a button, a remote control, or a configured switch.
Click the step you want to view to display the explanations.
Action on one or more devices
Action on one or more devices
|

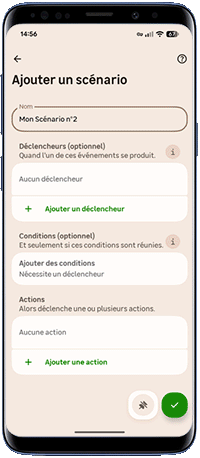

Add an action to your scenario. |
|

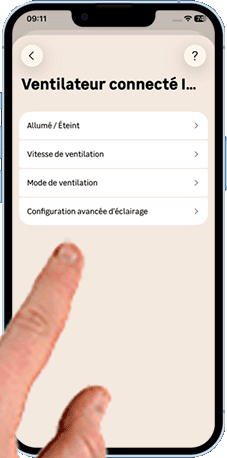

Integrate your device's action. |
|

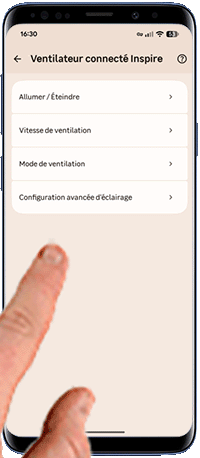

For this example, we will choose "Advanced lighting configuration" and "Status: On / Brightness: 50% / White: 2750K" |
How do I add a new device or action to my scenario?
Repeat the steps in the "Add an action to your scenario" and "Integrate your device's action" sections above.
|

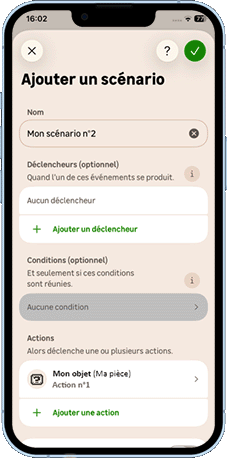

Save the scenario. |
|
Test your scenario. |
|
|
In the example, if your Inspire connected fan is set to "On / Brightness 50% / White 2750K" as action no. 1, the device will respond immediately when the scenario runs.
Action on the device with a delay
Actions on the device with a delay
Add the first action to your scenario. |
|
|
Integrate your device's first action. |
|
For this example, we will choose "Turn on / Turn off" and "Status: On / Function: Light". |
After adding your device's action to the scenario, you need to insert a wait delay. This delay starts a new action a certain amount of time after the first one. This is useful for scheduled actions without a specific time.

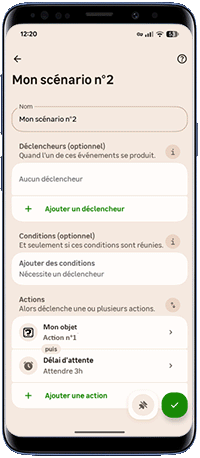

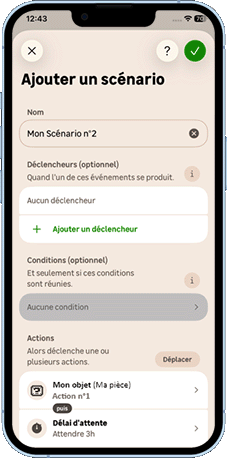

Add the second action to your scenario. |
|
What is a wait delay? It is the time between two actions in a scenario. For example, a three-hour delay postpones the next action for three hours after the first one. This allows you to delay the execution of actions over time. |
In this example, a 3-hour delay (03:00:00) is set between the first and second actions.
Add the third action to your scenario. |
|
|
Integrate your device's second action. |
|
For this example, we will choose "Turn on / Turn off" and "Status: Off / Function: Light". |

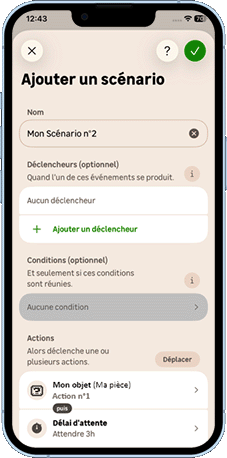

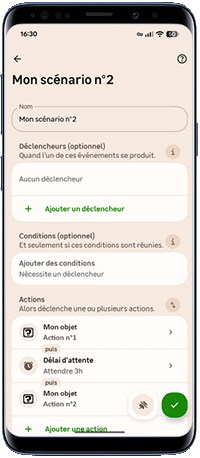

Save your scenario. |
|
|

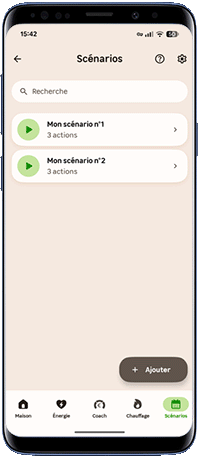

Test your scenario. |
|
|
|

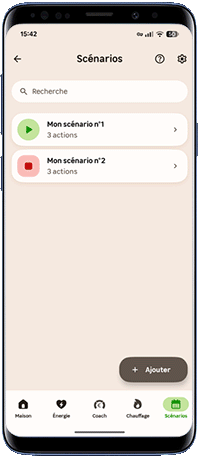

Can a scenario be modified while it is running? No. Modifications are disabled while it is running, as shown on the screen. To modify a scenario, first stop it using the "" icon or by selecting "Stop the scenario" in the editor. |
In this example:
A first action changes the status of the Inspire connected fan to on (for the light),
A three-hour delay follows,
Then a second action changes the status of the same Inspire connected fan back to off (for the light).
During execution:
The device first changes to the light-on status,
A three-hour delay elapses,
Then the device changes status again to light off.
Schedule an action with my device
This type of scenario is called a scheduled scenario. What is a scheduled scenario?
A scheduled scenario starts automatically at a defined time or during a defined period through a time trigger, executing the actions without manual intervention.
Click the step you want to view to display the explanations.
Schedule at a specific time
Schedule at a specific time
|

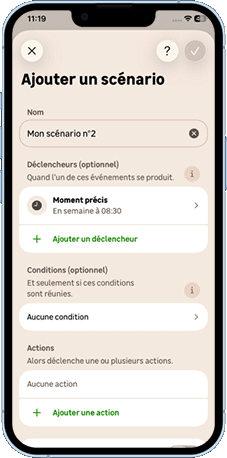

Add a trigger to your scenario. |
|
The trigger time for your scenario depends on your home's settings (country, address), not your phone's time or your current location.
Can multiple time triggers be set in the same scenario?
Yes, each added time triggers all the actions in the scenario. Simply repeat the steps in the Add a trigger to your scenario section for each time.
Add your action to your scenario. |
|
|
|
Integrate your device's action. |
For this example, we will choose "Turn on / Turn off" and "Status: On / Function: Fan". |
How do I add a new device or action to my scenario?
Simply repeat the steps in the "Add your action to your scenario" and "Integrate your device's action" sections.
Save your scenario. |
|
|
|

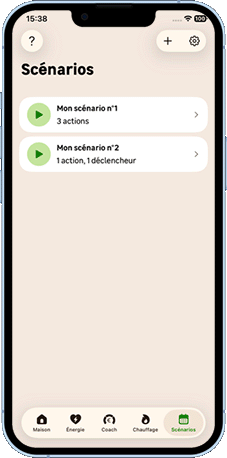

Test your scenario. |
|
In the example, the scenario starts at 8:30 AM, Monday through Friday.
At that time, your connected fan will perform the action of turning on its fan as action no. 1.
To change the status at another time, create a second scenario in the same way.
You can also group actions with delays in a single scenario. See the "Actions on the device with a delay" section for more information.
Schedule at sunrise or sunset
Schedule at sunrise or sunset
|

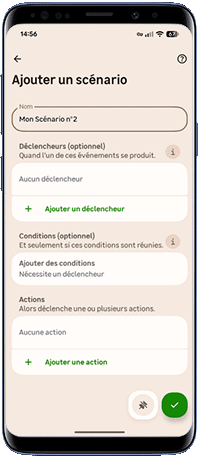

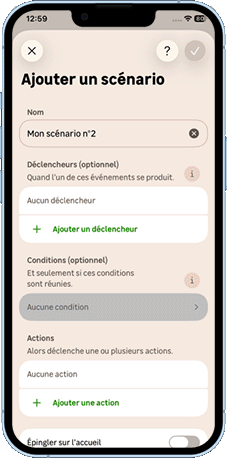

Add a trigger to your scenario. |
|
The dawn or dusk period used to trigger actions in your scenario depends on your home's settings, not your phone's time or your location.
The time used is defined by the country and mailing address in your home's settings.
Add your action to your scenario. |
|
|
|
Integrate your device's action. |
For this example, we will choose "Turn on / Turn off" and "Status: On / Function: Light". |
How do I add a new device or action to my scenario?
Simply follow the steps in the "Add your action to your scenario" and "Integrate your device's action" sections.

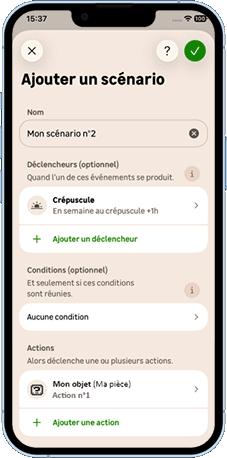

Save your scenario. |
|
|
|
Test your scenario. |
|

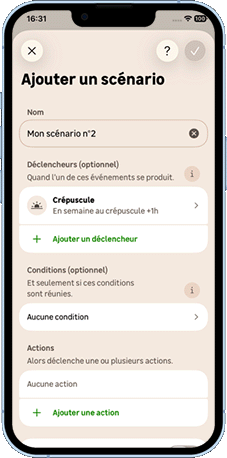

In this example, the scenario activates one hour after dusk, Monday through Friday.
During this period, your Inspire connected fan will perform the action of turning on its light as the first action.
Perform one or more actions on my device after an event
This type of scenario is called an event-based scenario. But what is it?
An event-based scenario starts automatically when a device changes status.
In other words, an event changes the status of a device, which starts the scenario's actions.
Click the step you want to view to display the explanations.
My device triggers the action
My device triggers the action
|

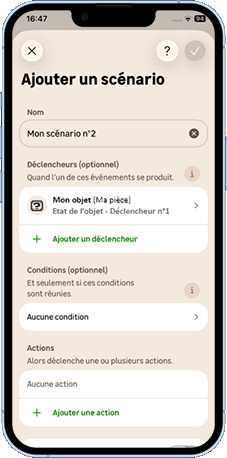

Add your device as a trigger in your scenario. |
|

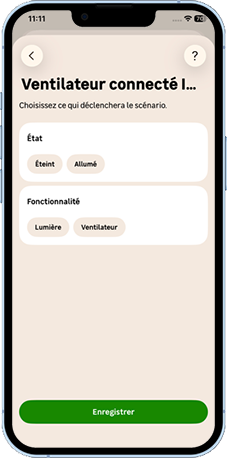

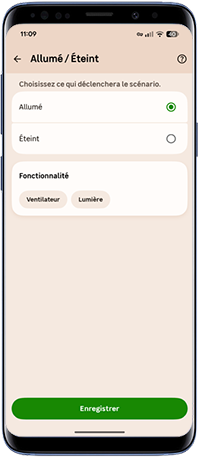

Integrate your device's status. |
|
For this example, we will choose "On" and "Fan". |
Can multiple statuses of a device be used to trigger a scenario?
Yes, you can add multiple statuses for one or more devices. Repeat the steps in the "Add your device as a trigger" and "Integrate your device's status" sections. Be careful to avoid loops that would trigger the scenario continuously, potentially disrupting your installation.
|

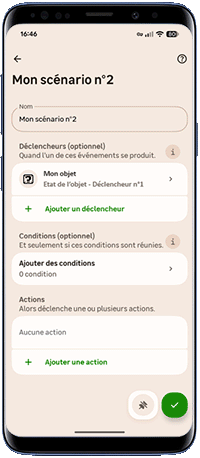

Add your action to your scenario. |
|
How do I add a new device or a new action to my scenario?
Simply repeat the steps explained in the "Add your action to your scenario" section.
Only devices eligible for an action are displayed in the list.
If a device does not appear, it cannot be used as an action or cannot execute an action.
For this example, we will use an air conditioner that will perform the action of turning on.
Save your scenario. |
|
|
|
Test your scenario. |
|
In the example, a specific status—fan on—is set for the Inspire connected fan to trigger the scenario.
When the Inspire connected fan is in this status, the action of turning on the air conditioner is triggered.
My device is controlled by a trigger
My device is controlled by a trigger
|
Add one of your devices as a trigger in your scenario. |
|
Only devices that can be used as triggers appear in the list.
If a device is not visible, it is not compatible as a trigger in a scenario.
Can multiple statuses of one or more devices be used to trigger a scenario?
Yes, you can add multiple statuses from one or more devices.
Simply repeat the steps in the "Add a device as a trigger" section. ⚠️ Be careful not to create a loop that triggers the scenario continuously, which could cause a malfunction.
In this example, we will use a connected thermometer, with a measured temperature above 25°C, to trigger the scenario.
Add your device's action to your scenario. |
|
|
|
Integrate your device's action. |
For this example, we will choose "Turn on / Turn off" and "Status: On / Function: Fan". |
How do I add a new device or action to my scenario?
Simply repeat the steps in the "Add your device's action to your scenario" and "Integrate your device's action" sections.
Save your scenario. |
|
|
|
Test your scenario. |
|
In the example, a specific status is defined for a device—the connected thermometer—to trigger the scenario: a detected temperature above 25°C.
When the device reaches this status, the action of turning on the fan in the scenario runs automatically.
Be notified when an event occurs with my device
Click the step you want to view to display the explanations.
Receive a notification when an event is associated with my device
|
Add your device as a trigger in your scenario. |
|
Configure your device's status. |
|
For this example, we will choose "On" and "Fan". |
Can I use multiple device statuses to trigger a scenario?
Yes, you can add multiple statuses from one or more devices by repeating the steps in the "Add your device as a trigger" and "Configure your device's status" sections.
Be careful to avoid loops that could trigger the scenario continuously and potentially disrupt your installation.
|
Add the notification to receive to your scenario. |
|
How many characters can I use in the notification message?
The message must contain between 1 and 160 characters. It cannot contain fewer or more characters.
You can also insert emojis into your message.
Save your scenario. |
|
|
|
Test your scenario. |
|
In the scenario above, the trigger is that the Inspire connected fan is in the status where its fan is turned on.
When this status occurs, you will receive the configured customized push notification.
🔧 Assistance - Notification delivery issue (delayed or missing)
|
If you are having issues receiving notifications, such as delays or missing notifications, see this helpful article: |
Allow my scenario to perform one or more actions under certain conditions
This type of scenario, called a conditional scenario, is triggered automatically if a device is in a given status when it runs.
In other words, if the device is in the desired status when the scenario runs through an automation, the actions are performed.
Click the step you want to view to display the explanations.
The scenario is conditioned by a time period
My scenario is conditioned by a time period
|
Add one of your devices as a trigger in your scenario. |
|
Only devices that can be used as triggers are listed.
If a device does not appear, it is not compatible as a trigger in a scenario.
Can I use multiple statuses from one or more devices to trigger a scenario?
Yes, simply add multiple statuses from the same or different devices.
Repeat the steps in the "Add one of your devices as a trigger" section. ⚠️ Be careful to avoid loops that could trigger the scenario continuously and potentially disrupt your installation.
In this example, we will use the connected thermometer device, with a detected temperature above 25°C, to trigger the scenario.
Add your device's action to your scenario. |
|
|
|
Configure your device's action. |
For this example, we will choose "Turn on / Turn off" and "Status: On / Function: Fan". |
How do I add a new device or action to my scenario?
Simply repeat the steps in the "Add your device's action" and "Configure your device's action" sections.
Add a time period condition to your scenario. |
|
|
How do I add a new condition to my scenario?
Simply repeat the steps in the "Add a time period condition to your scenario" section.
In this example, the actions are performed only from 8:30 AM to 12:45 PM, Monday through Friday.
Outside this period, they do not run, even if the trigger is activated.
|

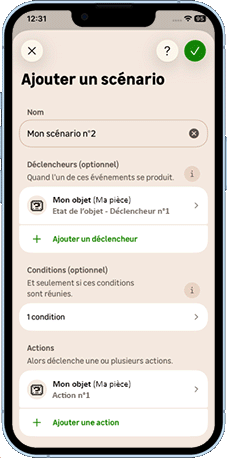

Save your scenario. |
|
Test your scenario. |
|
|
In this example, a connected thermometer triggers the scenario when it detects a temperature above 25°C.
The scenario runs only between 8:30 AM and 12:45 PM, Monday through Friday.
Therefore, the action to turn on the fan will be triggered only if the status is reached during this time period.
Outside this period, the action does not run.
The scenario is conditioned by an event
My scenario is conditioned by an event
|
Add a trigger to your scenario. |
|
Your scenario's trigger time depends on your home's settings (country, address), not your phone's time or your current location.
Can I set multiple time triggers in the same scenario?
Yes, each added time triggers all the actions in the scenario. Simply repeat the steps in the Add a trigger to your scenario section for each time.
Add your action to your scenario. |
|
|
|
Configure your device's action. |
For this example, we will choose "Advanced lighting settings" and "Status: On / Brightness: 100% / White: 5000K". |
How do I add a new device or action to my scenario?
Simply repeat the steps in the "Add your action to your scenario" and "Configure your device's action" sections.

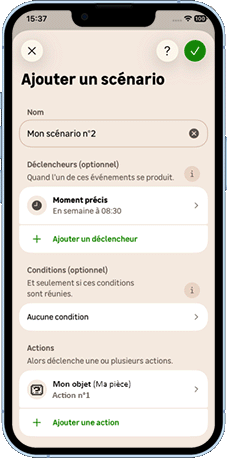

Add an event-related condition to your scenario. |
|
|
How do I add a new condition to my scenario?
Simply repeat the steps in the "Add an event-related condition to your scenario" section.
In this example, the condition is that the door or window sensor is in the "closed" position, indicating that the window is properly closed.
|

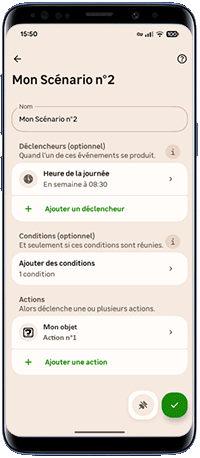

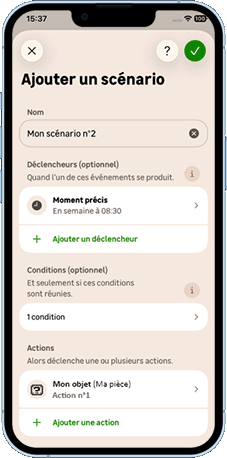

Save your scenario. |
|
Test your scenario. |
|
|
The scenario is triggered at 8:30 AM from Monday through Friday.
At that time, your Inspire connected fan will turn its light on at 100% brightness in white at 5000K as action No. 1, only if the window is closed.
Otherwise, the action will not run.
To change your device's status at different times, create a second scenario in the same way.
You can also insert multiple actions with delays in a single scenario.
For more information, see the "Delayed device actions" section.
Things to know about scenarios
What are the limits on the maximum number of triggers?
You can include up to fifty triggers in a scenario.
What are the limits on the maximum number of conditions?
You can include up to fifty conditions in a scenario.
What are the limits on the maximum number of actions?
You can include up to fifty actions in a scenario.

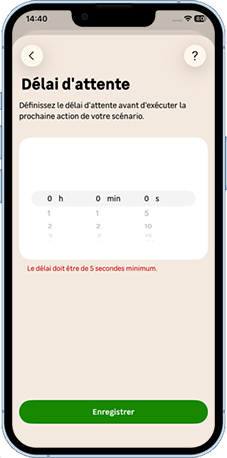

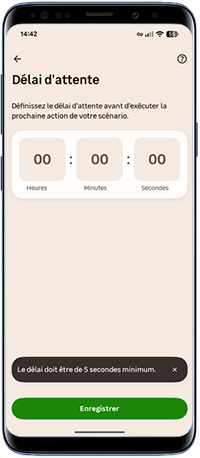

What is the minimum delay accepted for a timer?
The delay must be at least five seconds.
| Android: | iOS: |
How many wait times can I include in my scenario?
You can add up to five delays in a scenario.
What is the maximum duration for a wait time?
On Android, the maximum delay is 23h59m59s. On iOS, it is 23h59m55s, with seconds in five-second increments.
How are the actions performed?
Actions are performed in the defined order, from top to bottom.

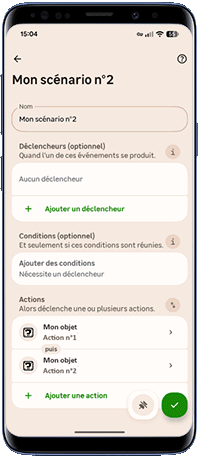

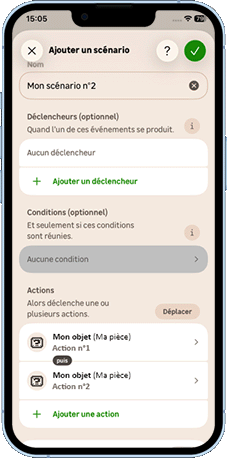

Change this order using the ↑↓ or "Move" buttons near the "Action" section.
| Android: | iOS: |
Why does my device not appear in the list of device statuses for triggers?
Not all devices can trigger a scenario. Check eligibility in the feature table on the product pages for Inspire fans.
Why does my device not appear in the conditions?
Only certain devices can limit the triggering of a scenario. Check eligibility on the product pages for Inspire fans.
Why does my device not appear in the actions?
Not all devices can perform an action in a scenario. Check eligibility on the product pages for Inspire fans.
Why doesn't my scenario always run when the value matches?
The trigger acts as a threshold: the scenario runs only when the value crosses it. If the value is already within the range, it does not trigger. Example: for threshold B, if the value goes from A to C by crossing B, the scenario runs; if it is already at C, it does not.
|
If you have any questions about your scenarios despite our tutorial, contact our technical support team. Please provide:
The more details you provide, the more effective our support will be. |
