Prerequisites for installation and use :

• Enki application* + Enki Box

* Prerequisites for the Enki application : Internet access and a telephone with a minimum operating system: Android: 7 / iOS: 15

Communication protocol:

• Enocean

Available countries:

• France

Status feedback available :

• No

Alexa voice control:

• No

Google Home voice control :

• No

Article contents:

• Technical description

• Product functionality in the ENKI app

• Product view

• How to reset my product?

• Technical documents / user manual





Technical description:

• Type : Wireless remote control without batteries

• Requires the Enki box : Yes / Enki Box V1

• Power supply : None, batteryless. Piezoelectric mechanism.

• Power supply : magneto-resistive (batteryless)

• Protection index : IP53

• Operating temperature : from -10°C to 50°C

• Radio protocol : EnOcean

• Central radio frequency : 868.3 MHz

• Frequency band used : 868.0 to 868.6 MHz

• Maximum radio power : +3 dBm

• Signal range : 20-30 metres indoors

• EEP (EnOcean® Profile) : F6-02-02

• Weight : 76g

• Dimension : 56 mm x 20 mm x 56 mm



Product functionality in the ENKI app:

Object functionality	Properties	Integration in a scenario
		Action	Condition
Button + / Sun	Associate an action for a piece of equipment or a scenario	✘	✘
Button - / Moon	Associate an action for a piece of equipment or a scenario	✘	✘
Solid round button / Enter	Associate an action for a piece of equipment or a scenario	✘	✘
Empty round button / Exit	Associate an action for a piece of equipment or a scenario	✘	✘

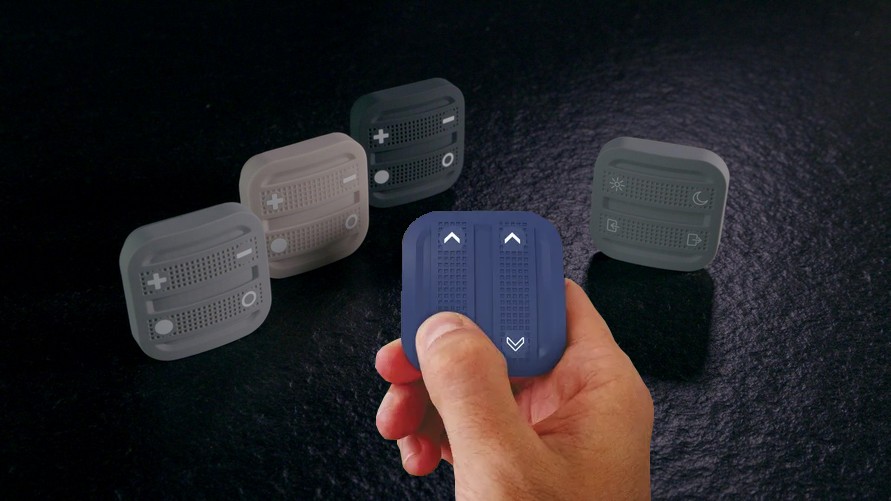

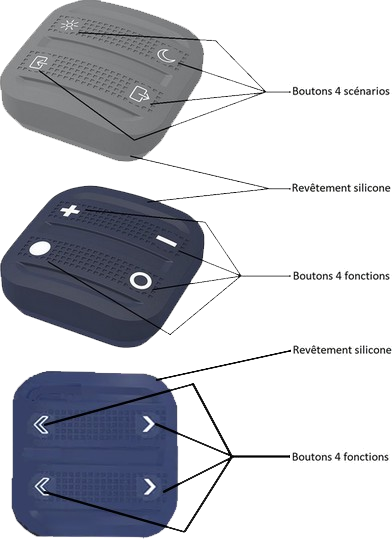

Product view:





How to reset my product?





Technical documents / user manual
