Prerequisites for installation and use :

• Enki* application + Enki Box

* Prerequisites for the Enki application : Access internet and a phone with a minimum operating system : Android: 7 / iOS: 15



Communication protocol :

• Enocean

Country available :

• France

Feedback available :

• No

Alexa voice control :

• No

Google Home voice control :

• No

Article content:

• Technical description

• Product functionality in the ENKI application

• Product view

• How to reset my device?

• Technical documents / user manual





Technical description:

• Type : Single/double radio switch wireless and batteryless

• Requires the Enki box : Yes / Enki V1

• Feedback : Yes
• Dimensions : 85.2 mm x 85.2 mm x 1,76 mm
• Radio protocol : EnOcean
• Transmission frequency : 868,3 MHz
• Radio profile : F6-02-01 / Channel A (10040009.xx)
• Transmission power : 10 mW max.
• Power supply : Batteryless and wireless, with piezoelectric impulse
• Operating temperature : From -25°C to +65°C
• Storage temperature : From -25°C to +65°C
• Switching cycles : 100,000
• Protection level : IP20
• Relative air humidity : From 0% to 95%
• Installation altitude : 2000m max.
• Theoretical signal range of the product :

  • Masonry 20m, through 3 walls maximum
  • Reinforced concrete 10m, through 1 wall/ceiling maximum
  • Plasterboard / Wood 30m, through 5 walls maximum



Product functionality in the ENKI application:

Object functionality	Properties	Integration into a scenario
		Actions	Triggers	Conditions
Top button	Associate an action of a device or a scenario	✘	✔	✘
Bottom button	Associate an action of a device or a scenario	✘	✔	✘

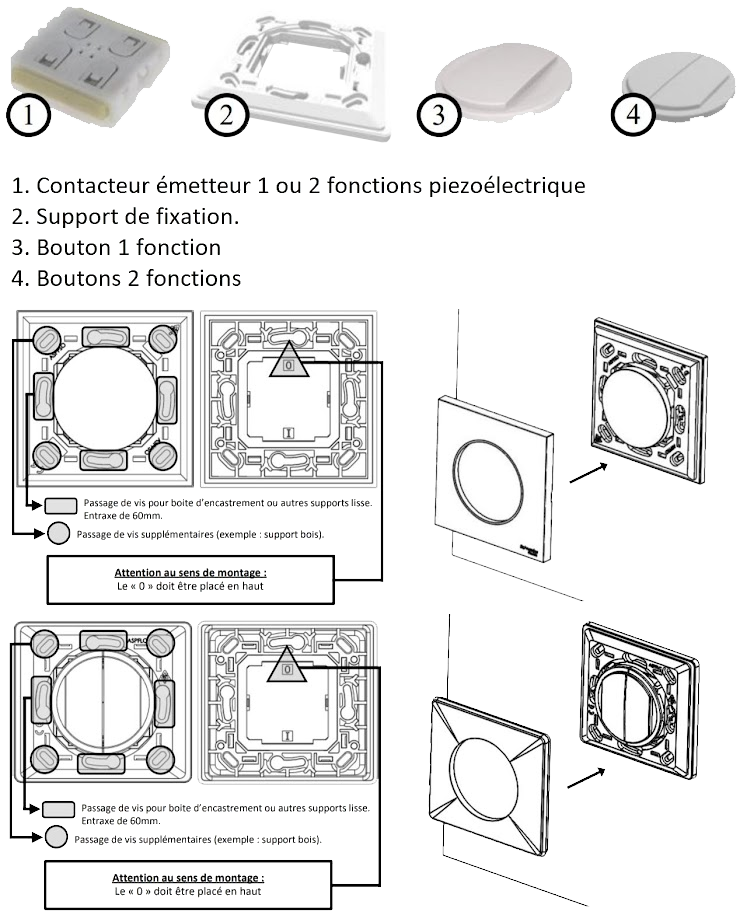

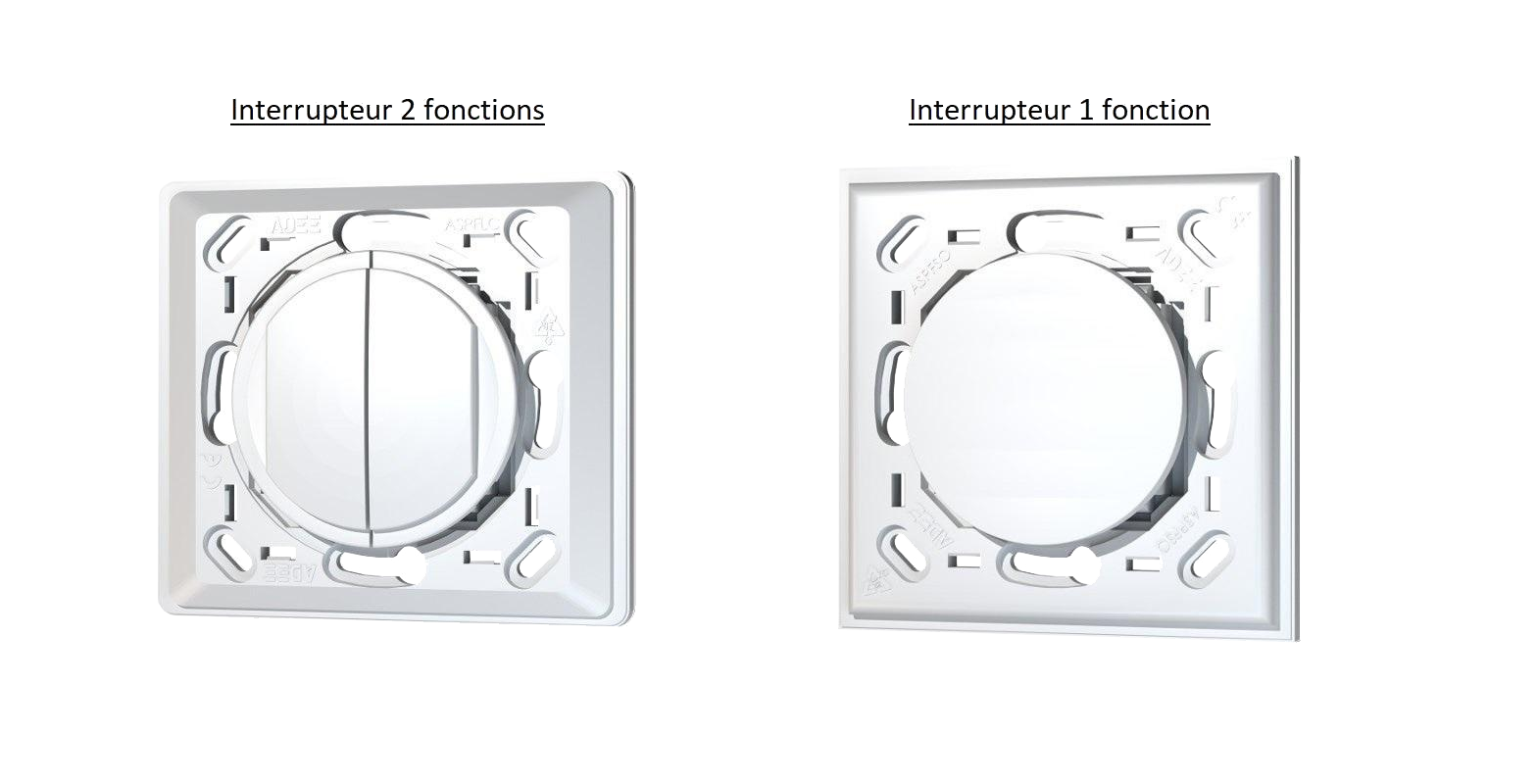

Product view:



How to reset my device?







Technical documents / user manual
