Prerequisites for installation and use :

• Enki Application*

Communication Protocol:

• Wi-Fi
• Zigbee
• Enocean
• Dio 433 radio
• RTS

Available Countries:

• France**

Status Feedback Available:

• Yes

Alexa Voice Control:

• No

Google Home Voice Control:

• No

Article Content:

• Technical Description

• Product Functionality in the ENKI Application

• Product Overview

• What do the Enki Gateway LED Colors Mean?

• How to Reset My Product?

• Technical Documents / User Manual



Technical Description:

• Type: Home Automation Gateway
• Model: ZB-H059016U-K
• Input Voltage: 100-240V~
• AC Input Frequency: 50/60 Hz
• Output Voltage: 5.9 V
• Output Current: 1.6 A
• Output Power: 9.44 W
  Average Active Efficiency: 81.70 % (230V~)
• No-load Power Consumption: 0.058 W
• Communication Protocols / Radio Frequency / Maximum Signal Power
  • Wi-Fi 802.11 b/g/n / 2400.0 - 2483.5 MHz / 20 dBm *
  • Zigbee / 2400.0 - 2483.5 MHz / 20 dBm
  • Bluetooth / 2400.0 - 2483.5 MHz / 20 dBm
  • EnOcean ISO/IEC / 14543-3-10 868.0 - 868.6 MHz / 14 dBm
  • DIO / 433.05 - 434.79 MHz / 10 dBm
  • RTS
• Weight: 300 g
• Dimensions: 17 x 14 x 17 cm
• Color: White
• Operating Temperature: 0 to 35°C
• Humidity: 5 to 95% RH without water condensation

* Wi-Fi is dedicated to the connection between the Enki Gateway and the internet gateway. It is not intended to connect Wi-Fi products to the Enki Gateway.



This Device is currently not compatible with the WPA3 protocol. For pairing, your Wi-Fi network must be configured in WPA2 on the 2.4 GHz frequency.
If your 2.4 GHz Wi-Fi network is mixed with 5 GHz, 6 GHz, or 7 GHz frequencies, it is imperative to separate the bands and assign a distinct SSID (Wi-Fi network name) to each frequency.

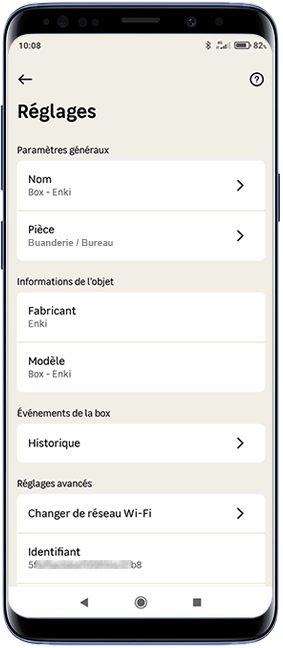

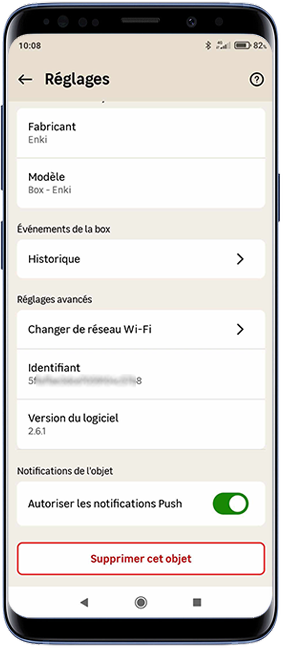

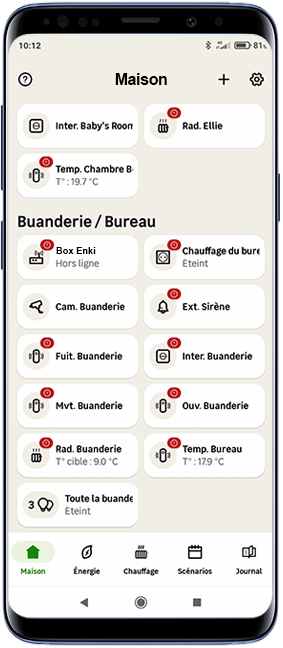

Product Functionality in the ENKI Application:

Device Functionality	Properties	Scenario Integration
		Actions	Triggers	Conditions
Check / Display Device Status	Retrieve Power Status / Connection / Device Communication	✘	✘	✘
History	Check connection and disconnection history of the Gateway	✘	✘	✘
Change Wi-Fi Network	Change network connection without deleting the Device	✘	✘	✘
Push Notifications	Receive push notifications of Gateway events	✘	✘	✘
Check RTS Key Installation	Display of the installed extension	✘	✘	✘
Delete RTS Key	Deletes the RTS Key	✘	✘	✘
Pairing New Products to the Device	ENKI compatible products & brands 433 MHz, EnOcean, RTS, Zigbee	✘	✘	✘
Check / Perform Available Updates	Update available by OTA	✘	✘	✘
Retrieve Firmware Version	Retrieve and display the current firmware version of the Device	✘	✘	✘
Device Reset	Delete and reset the Device to factory settings.	✘	✘	✘

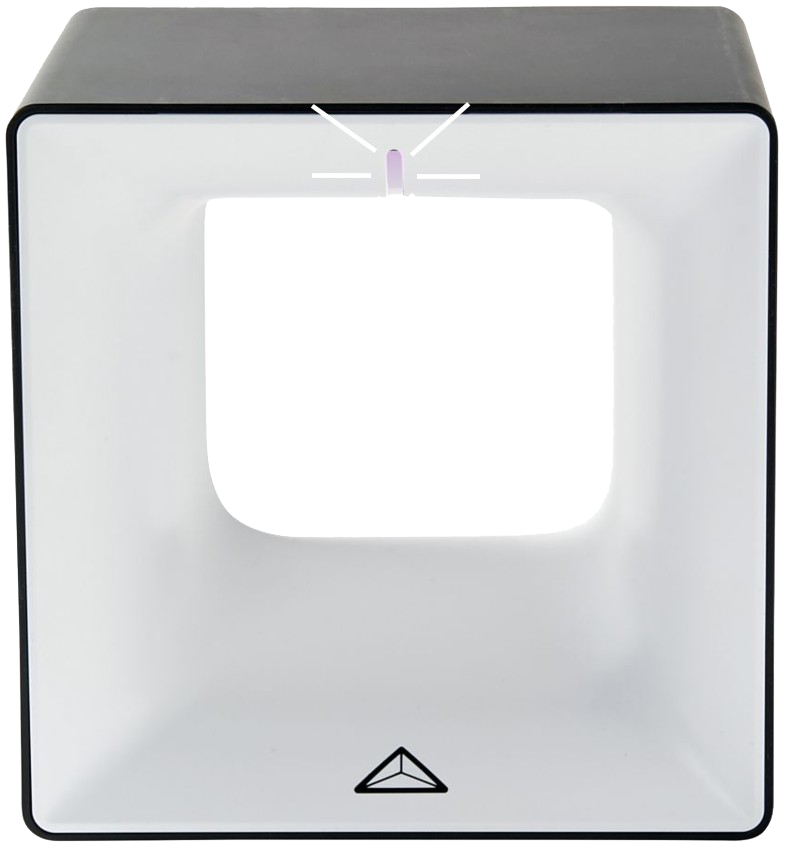

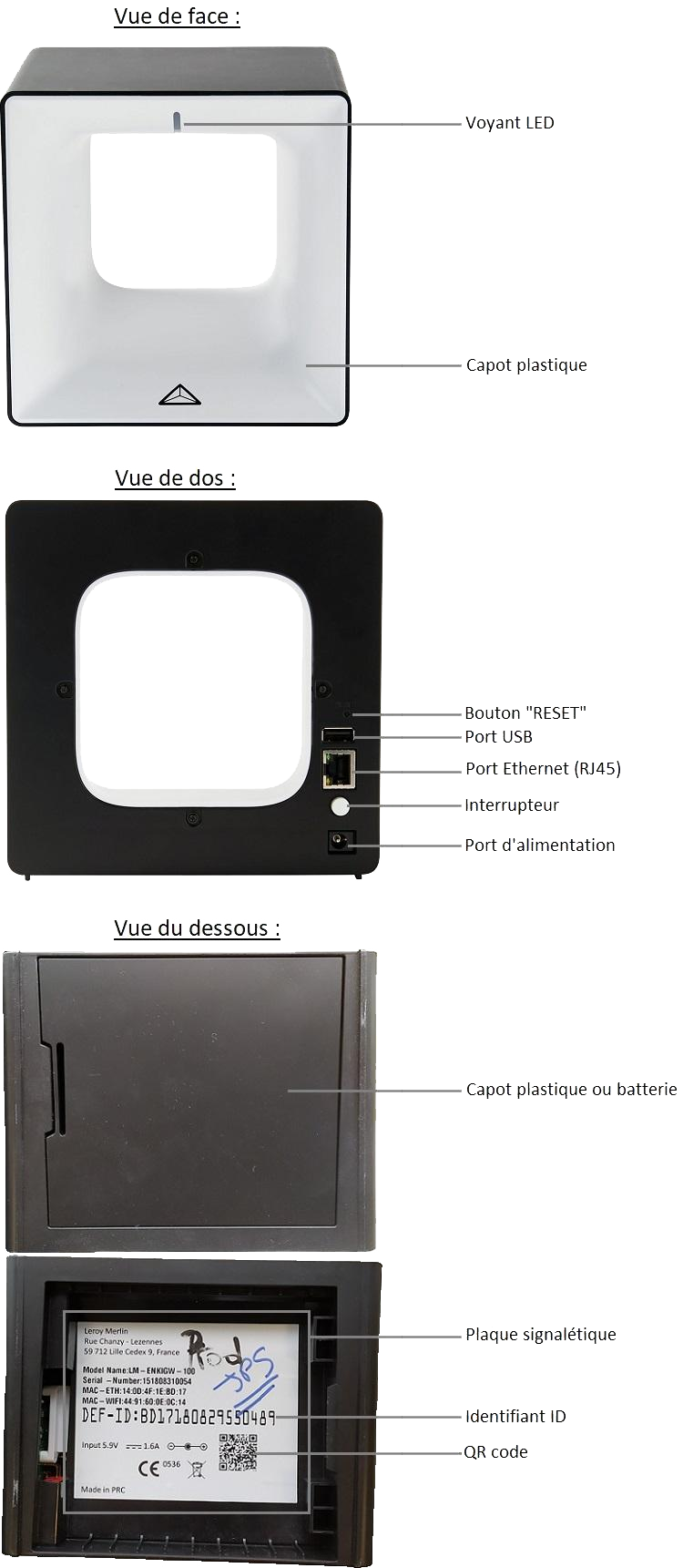

Product View:



Detailed view of the original power adapter:



What do the Enki Gateway LED colors mean?

Dark Blue Solid Temporary Network: Absent Booting up	Light Blue Blinking Temporary Network: Present Ready for pairing	Solid White Temporary Network: Absent Connected and synchronized
Light Green Blinking Temporary Network: Absent Searching for Device	Orange/Yellow Blinking Temporary Network: Absent Connected, not synchronized	White Blinking Temporary Network: Absent Connected, not synchronized
	Orange/Yellow Blinking Temporary Network: Present Not connected, not synchronized

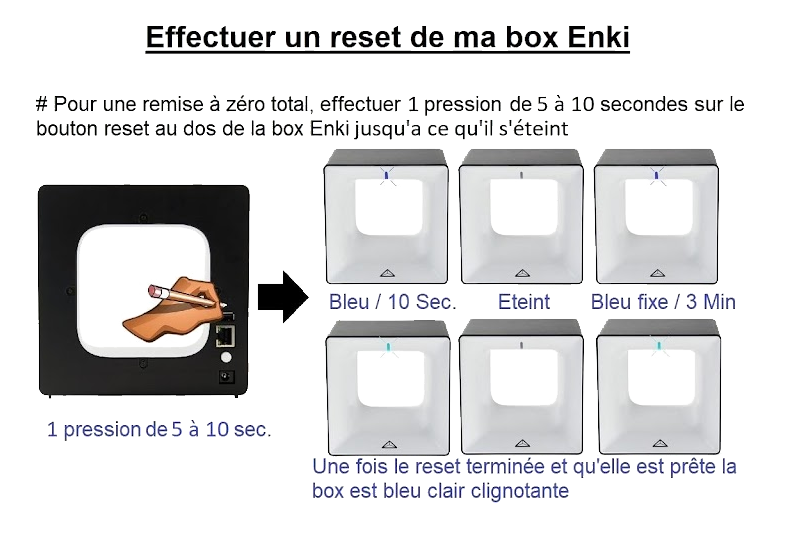

How to reset my product?
