Installation and use prerequisites:

Enki App*

Communication Protocol:

Wi-Fi
Zigbee

Available Countries:

France**
Spain
Greece
Italy
Poland
Portugal
Romania

**Essentiel b Connect box available in France only

Status feedback available:

Alexa voice control:

Google Home voice control:

Article content:

Technical description
Product fonctionality in the Enki application

Technical description :

Type: Smart home box
Model: HCG-G10A-WZ
Input voltage: 100-240V~ / 0.25 A max
Input AC frequency: 50/60 Hz
Output voltage: 5V / 1 A
Output power: 5 W
Communication protocols / Radio frequency / Maximum signal power:
Wi-Fi 802.11 b/g/n / 2400.0 - 2483.5 MHz / 20 dBm *
IEEE (Zigbee) 802.15.4 / 2400.0 - 2483.5 MHz / 20 dBm
Weight: 45g
Dimensions: 6.2 x 6.2 x 2.3 cm
Colour: White
Operating temperature: 5°C to 35°C
Humidity: 5% to 95% RH (Relative humidity) non-condensing

*Wi-Fi is dedicated to the connection between the smart home box and the internet box. It is not intended to connect Wi-Fi products to the smart home box.

This device is currently not compatible with the WPA3 protocol. For pairing, your Wi-Fi network must be configured in WPA2 on the 2.4 GHz frequency.

If your 2.4 GHz Wi-Fi network is mixed with 5 GHz, 6 GHz or 7 GHz frequencies, it is imperative to separate the bands and assign a distinct SSID (Wi-Fi network name) to each frequency.

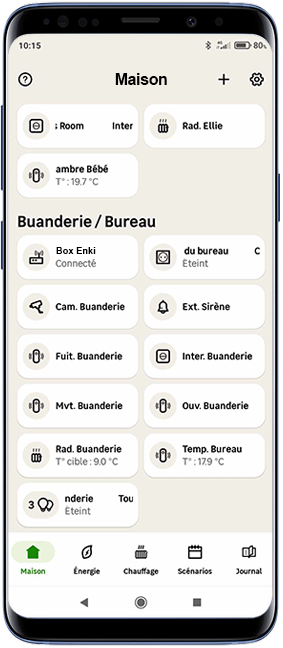

Product Functionality in the ENKI Application:

Device Functionality	Properties	Scenario Integration
Device Functionality	Properties	Actions	Triggers	Conditions
Check / Display Device Status	Retrieve Power Supply / Connection / Communication Status	✘	✘	✘
Pairing New Products to the Device	ENKI compatible products & brands on Zigbee protocol	✘	✘	✘
History	Check the history of Gateway connections and disconnections	✘	✘	✘

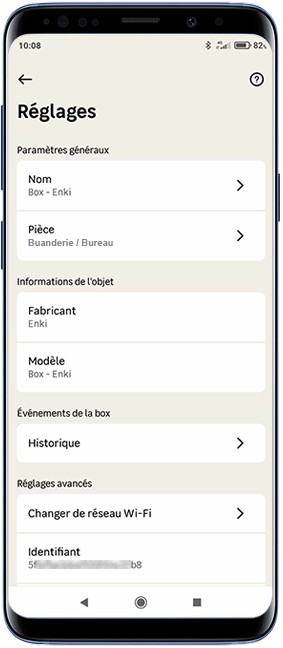

Change Wi-Fi Network	Change network connection without deleting the Device	✘	✘	✘
Push Notifications	Receive push notifications of Gateway events	✘	✘	✘
Check / Perform Available Updates	Update available via OTA	✘	✘	✘
Retrieve Firmware Version	Retrieve and display the current Gateway firmware version	✘	✘	✘

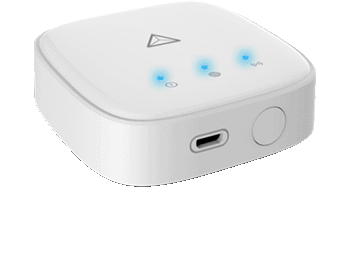

Device Reset	Delete and reset the Device to factory settings.	✘	✘	✘

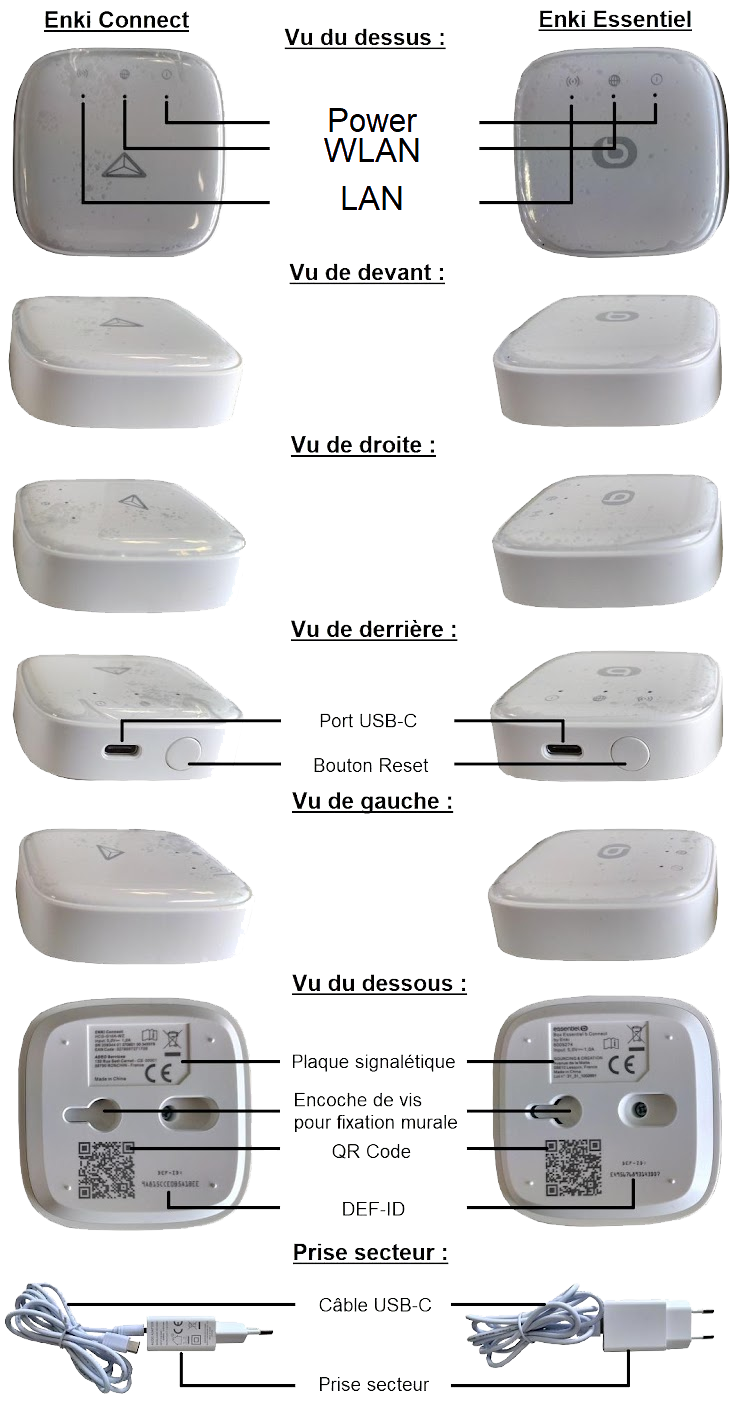

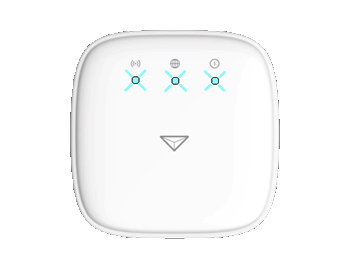

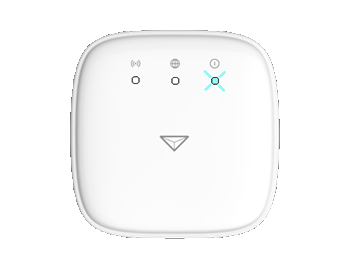

What does each LED mean and their impact on the status of my Enki Connect Gateway?


LAN: Flashing WLAN: Flashing then steady POWER: Steady Temporary Network: Absent Starting up	LAN: Steady WLAN: Flashing POWER: Steady Temporary Network: Present Not connected, not synchronized	LAN: Steady WLAN: Steady POWER: Steady Temporary Network: Absent Connected and synchronized

LAN : Flashing WLAN : Steady POWER : Steady Temporary Network: Absent Device search in progress	LAN: Steady WLAN: Flashing POWER: Steady Temporary Network: Absent Connected, not synchronized	LAN: Steady WLAN: Off POWER: Steady Temporary Network: Absent Gateway update in progress.
