Prerequisites for installation and use:
- Enki* Application
* Prerequisites for the Enki application: Internet access and a phone with minimum operating system: Android: 7 / iOS: 15
Communication protocol:
- Wi-Fi
Available countries:
- France
Status feedback available:
- Yes
Alexa voice control:
- Yes
Google Home voice control:
- Yes
Article content:
Technical description
Product functionality in the ENKI application
Product view
How does my device visually respond in different situations?
How to reset my product?
Technical description:
- Type: Connected lighting (Bulb, Spot)
- Requires Enki box: No
- Status feedback: Yes
- Radio protocol: Wi-Fi
- Radio frequency: 2.4 GHz
- Pairing on Enki application.
- Mounting: Screw base type E14 or E27
To pair the device, your Wi-Fi network must be configured with WPA2 on the 2.4 GHz frequency.
If your 2.4 GHz Wi-Fi network is mixed with 5 GHz, 6 GHz, or 7 GHz frequencies, it is imperative to separate the bands and assign a distinct SSID (Wi-Fi network name) to each frequency.
Product functionality in the ENKI application:
| Device functionality | Properties | Scenario integration | ||
| Actions | Triggers | Conditions | ||
| Turn On / Off | Product "ON" - "OFF" function | ✔ | ✔ | ✔ |

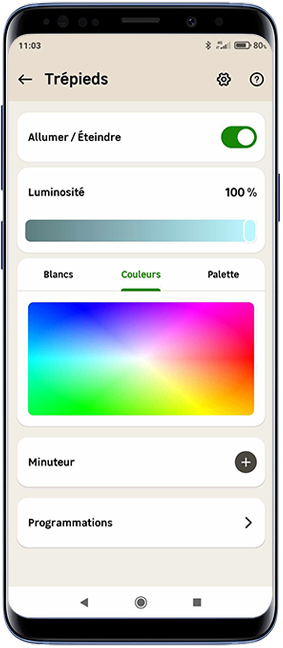

| Change color / Hue / Saturation | Changes the color emitted by the bulb | ✔ | ✘ | ✘ |
| Change white temperature |
White temperature: From 2200K to 6500K (Golden yellow / Light yellow / Warm white / Neutral white / Cool white / Cold white / Bright white / Shiny white / Light blue / Cold blue) |
✔ | ✘ | ✘ |
| Change brightness level | Min: 0% / Max: 100% / Step: 1% | ✔ | ✘ | ✘ |
| Check / Perform available updates | Update available via OTA |
✘ | ✘ | ✘ |
| Retrieve firmware version | Retrieve and display the current firmware version of the device |
✘ | ✘ | ✘ |
| Change network connection | Change network connection without deleting the device |
✘ | ✘ | ✘ |
|

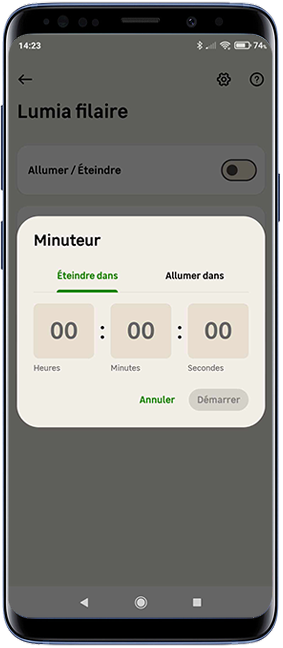

Timer function: Turn off in / Turn on in |
Set a time during the day to turn the device "OFF" or "ON" | ✘ | ✘ | ✘ |
|
Timer function: Cancel timer |
"STOP" the timer set for "Turn off in or turn on in" |
✘ | ✘ | ✘ |

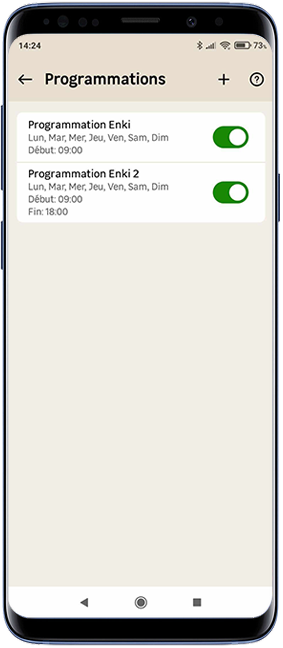

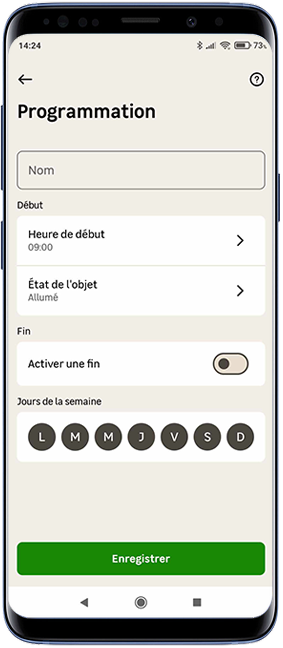

| Scheduling |
Set a start time and device state Set an end time and device state (optional) Choose execution days |
✘ | ✘ | ✘ |
|
|
||

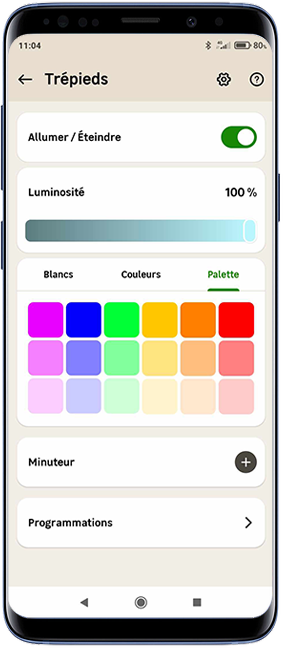

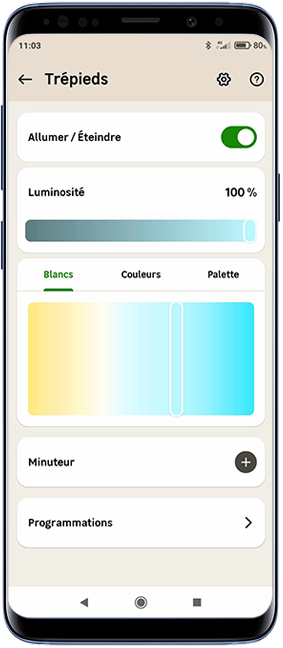

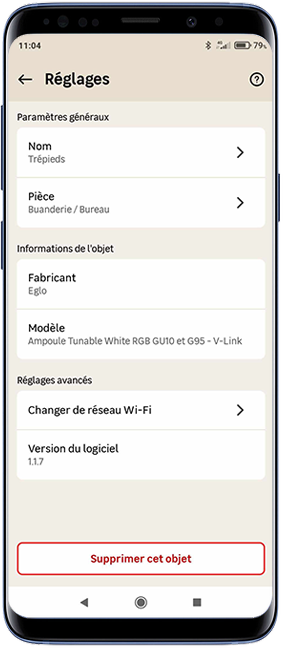

| Control page | Settings | |
Product view:

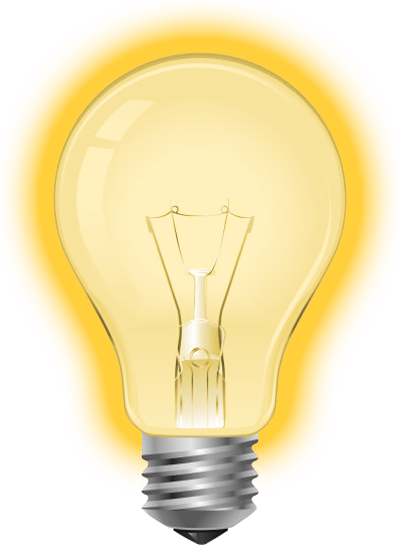

How does my device visually respond in different situations?
| Blinks once every 10 seconds + temporary Wi-Fi network visible. | Alternates from low to high power on purple color | Solid + temporary Wi-Fi network visible | Solid |
|
Bulb in factory mode (Not associated with any network) (Factory firmware, never updated) |
Bulb in factory mode Connected via Wi-Fi to a phone or tablet during pairing steps |
Bulb disconnected (No longer associated with a network) (Or bulb in factory mode, firmware already updated) |
Bulb paired (Associated with a network) |
