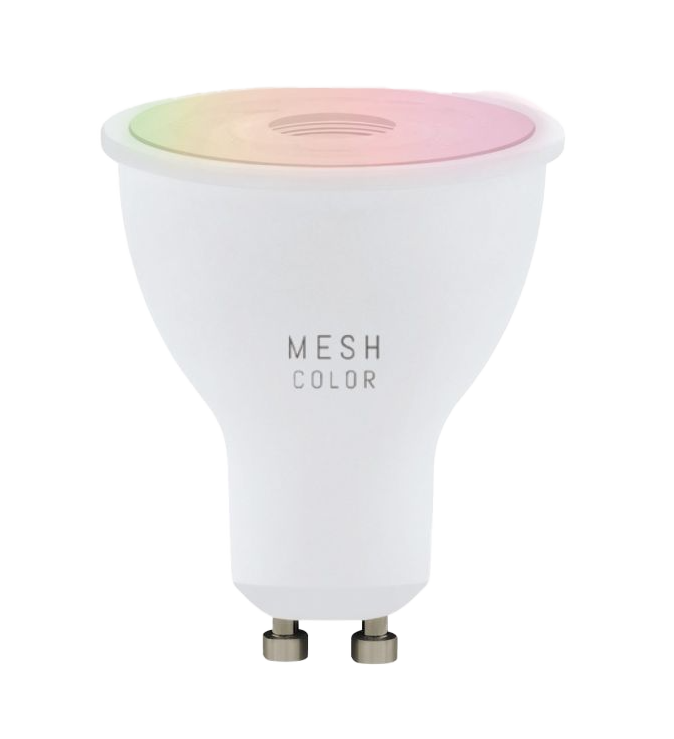

Eglo: Tunable White RGB GU10 Bulb - V-Link - Product Sheet

Vlink white RGB GU10.png

Séparateur horizontale vert.png

Requirements for installation and use:

  • Enki Application*

* Requirements for the Enki application: Internet access and a phone with minimum operating system: Android 7 / iOS 15

Communication protocol:

  • Wi-Fi

Available countries:

  • France

State feedback available:

  • Yes

Alexa voice control:

  • Yes

Google Home voice control:

  • Yes

Séparateur horizontale vert.png

Article contents:



Technical description:

  • Type: Connected luminaire (Bulb, Spot)
  • Requires Enki box: No
  • State feedback: Yes
  • Radio protocol: Wi-Fi
  • Radio frequency: 2.4 GHz
  • Pairing via Enki application.
  • Mounting: GU10 type attachment

Danger.png To pair the device, your Wi-Fi network must be configured as WPA2 on the 2.4 GHz frequency.
If your 2.4 GHz Wi-Fi network is mixed with 5 GHz, 6 GHz, or 7 GHz frequencies, it is imperative to separate the bands and assign a distinct SSID (Wi-Fi network name) to each frequency. Danger.png



Product functionality in the ENKI application:

Device functionality Properties Scenario integration
Actions Triggers Conditions
Turn On / Off "ON" - "OFF" function of the product ✔ ✔ ✔

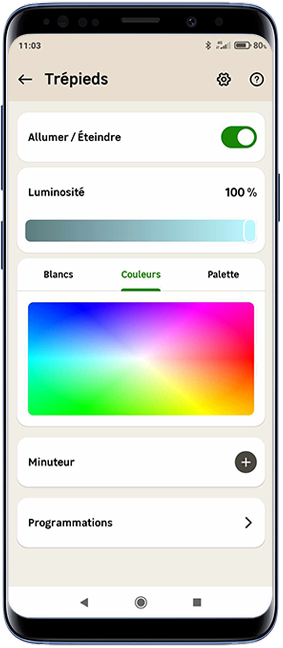

Change color / Hue / Saturation Changes the color emitted by the bulb ✔ ✘ ✘

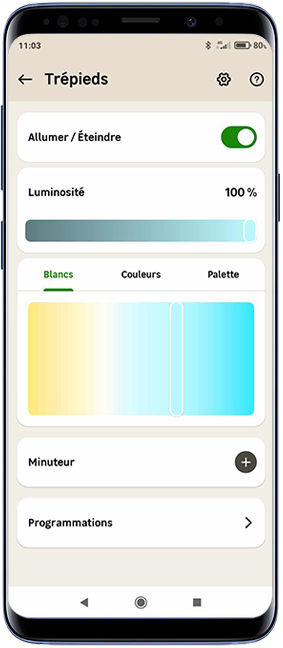

Change white temperature

White temperature: From 2200K to 6500K

(Golden yellow / Light yellow / Warm white / Neutral white / Cool white / Cold white / Bright white / Brilliant white / Light blue / Cold blue)

 ✔ ✘ ✘
Change brightness level Min: 0% / Max: 100% / Step: 1% ✘ ✘ ✘

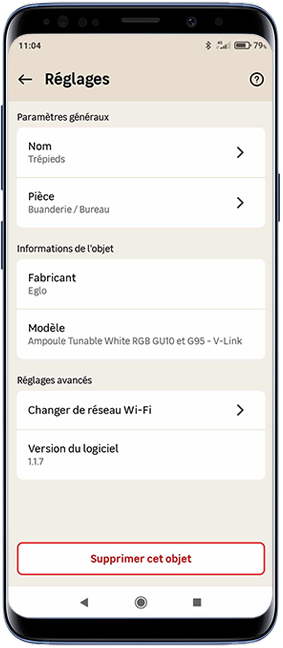

Check / Perform available updates

Update available via OTA

 ✘ ✘ ✘
Retrieve firmware version

Retrieve and display the current firmware version of the device

 ✘ ✘ ✘
Change network connection

Change network connection without deleting the device

 ✘ ✘ ✘

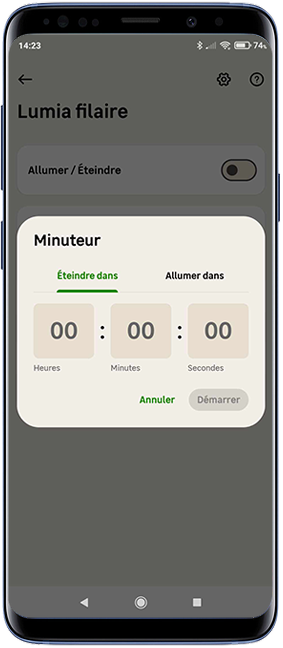

Timer function:

Turn off in / Turn on in

 Set a time during the day to turn the device "OFF" or "ON" ✘ ✘ ✘

Timer function:

Cancel timer

"STOP" the timer set for "Turn off in" or "Turn on in"

 ✘ ✘ ✘

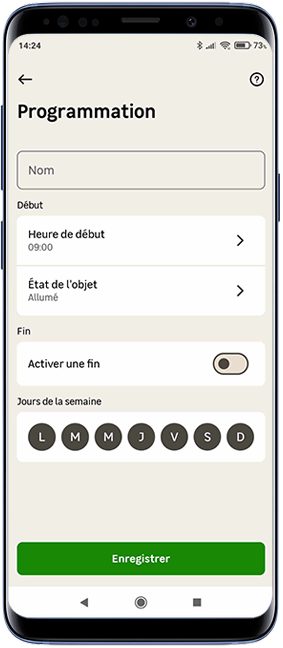

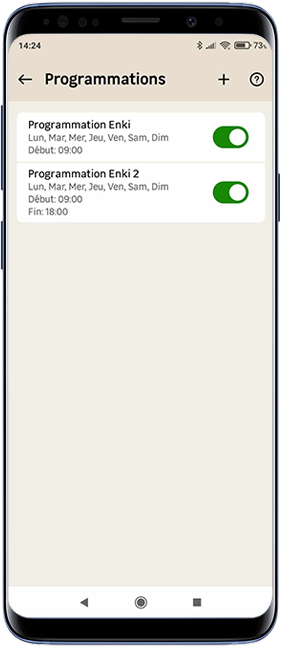

Scheduling

Set a start time and device state

Set an end time and device state (optional)

Choose execution days

 ✘ ✘ ✘
Ampoule Wi-Fi rgb - Card N2 01.png Ampoule Wi-Fi rgb - Card N2 02.png Ampoule Wi-Fi rgb - Card N2 03.png Lexman éclairage lumia filaire - Minuteur.png Programmation 01.png Programmation 02.png Ampoule Wi-Fi rgb - Card N3.png

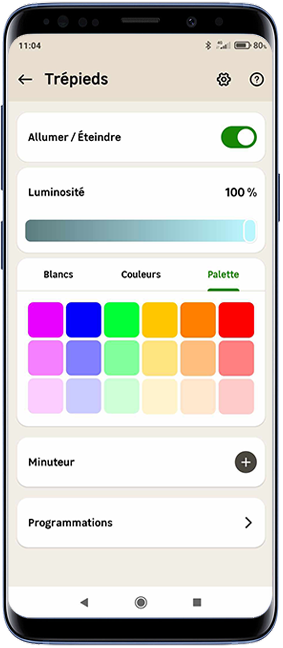

Control page Settings



Product view:

Eglo V-Link G10 RGB - Vue du produit.png



How does my device visually react in different situations?

Mode usine - Eglo - Clignote une fois toutes les dix secondes.gif Ampoule alterne violet faible et fort.gif Eglo - Fixe + réseau temp.gif Ampoule allumée blanc chaud.png
Blinks once every 10 seconds + temporary Wi-Fi network visible. Alternates from low to high power on purple color Steady + temporary Wi-Fi network visible Steady

Bulb in factory mode

(Not associated with any network)

(Factory firmware, never updated)

Bulb in factory mode

Connected via Wi-Fi to a phone or tablet during pairing steps

Bulb disconnected

(No longer associated with a network)

(Or bulb in factory mode, firmware already updated)

Paired bulb

(Associated with a network)



How to reset my device?



Ampoule EGLO V-link tunable RGB - Reset.png

How to reset (1) (1).gif
