This article explains how to manually reset your Schneider connected in-wall switch to restore it to its default factory settings.
When to Perform a Reset?
You should perform a reset in the following cases:
- The switch no longer responds to commands
- Network or Bluetooth connection issues
- Lighting control malfunction
- Before transferring the device to another user
After a technical malfunction
Reset Procedure

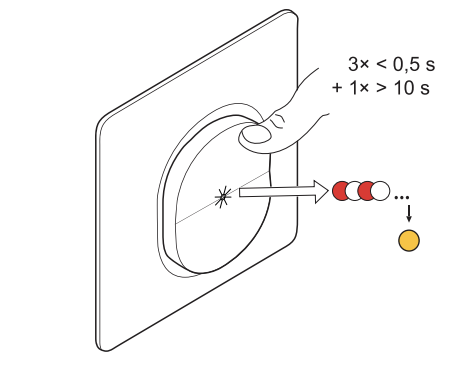

Step 1: Perform the Reset Sequence
- Briefly press the upper part of the switch 3 times (each press should last less than 0.5 seconds)
- Then hold down the upper part of the switch for more than 10 seconds
- After 10 seconds, the LED starts blinking red
Release the button as soon as the LED blinks red
Step 2: Verify the Reset Was Successful
- The LED stops blinking
- The device restarts automatically
- The LED then blinks green for a few seconds
Finally, the LED turns solid amber (orange), indicating the switch is ready for new pairing
⚠️ Important to Remember
All data is erased during the reset:
- Configuration settings
- User data and programmed scenarios
- Network connection settings
- Timers and scheduled programming
After the reset, you will need to fully reconfigure your switch as if it were a first installation.
Next Steps
Once the reset is complete, you will need to:
- Reinstall your switch in your Enki app
- Reconfigure the settings
Reprogram timers and lighting scenarios
Troubleshooting Tips
If the reset does not work:
- Check that the power supply is correct
- Make sure the switch is properly powered
- Press the reset button firmly
- Precisely follow the timing indicated in the sequence
If the problem persists, cut power at the breaker for 30 seconds and then try again
Need Additional Help?
If the reset does not resolve your issue, feel free to contact our technical support with the following information:
- Exact model of your Schneider switch
- Type of connected lighting (LED, halogen, etc.)
- Power of the light fixtures
- Detailed description of the problem encountered
- Steps already taken to resolve the issue
- Photos of the installation if necessary
