Prerequisites for installation and use:

• Enki* application + Enki Box

* Prerequisites for the Enki application: Internet access and a telephone with a minimum operating system: Android: 7 / iOS: 15

Communication protocol:

• Enocean

Countries available:

• France

Feedback available :

• No

Alexa voice control:

• No

Google Home voice control:

• No

Article content:

• Technical description

• Product functionality in the ENKI application

• Product view

• How do I reset my product?

• Technical documents / user manual





Technical description:

• Type: Connected control
• Requires the Enki box: Yes / Enki Box V1
• Power supply: CR2032 battery
• Battery life: 7 years
• Protection rating: IP67
• Operating temperature: from -10°C to 50°C
• Central radio frequency: 868.3 MHz
• Frequency bands used: 868.0 to 868.6 MHz
• Maximum radio power: +3 dBm
• Signal range: 20 to 30 m indoors
• EEP (EnOcean® Profile): D2-03-0A
• Dimensions: 37 mm x 37 mm x 8 mm
• Triple action: single press, double press, long press.
• Magnetic back

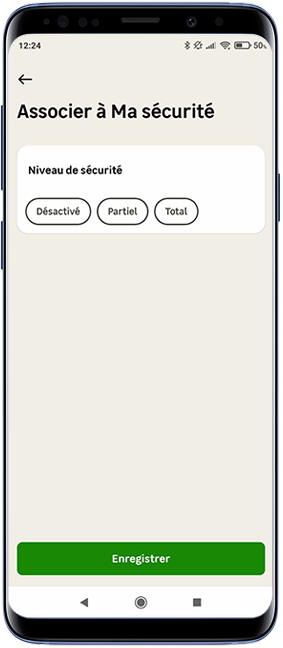

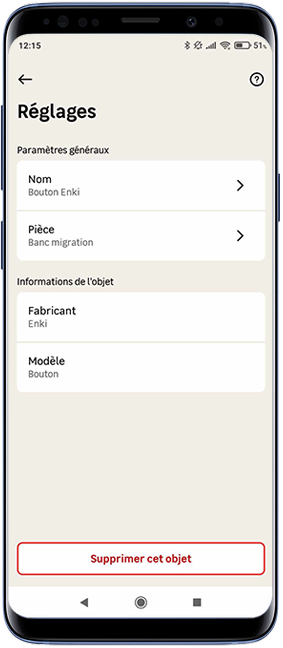

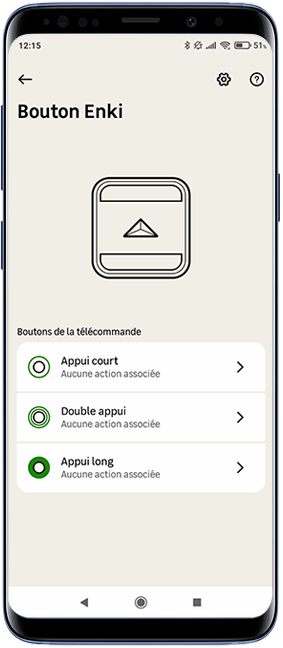

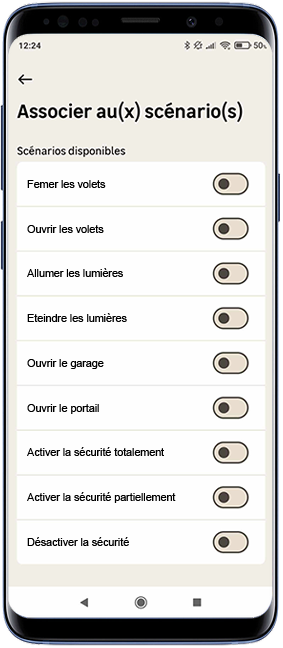

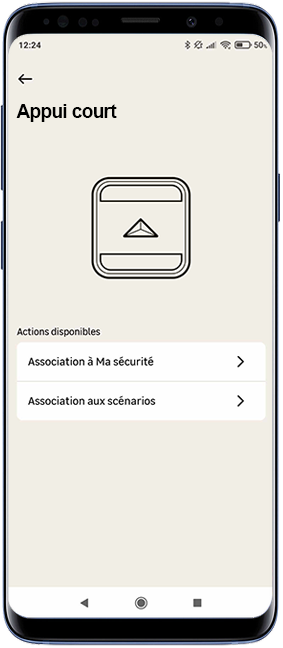

Product functionality in the ENKI application:

Object functionality	Properties	Integration into a scenario
		Actions	Triggers	Conditions
Short press	Associate an action of a device or a scenario	✘	✔	-
Long press	Associate an action of a device or a scenario	✘	✔	-
Double press	Associate an action of a device or a scenario	✘	✔	-

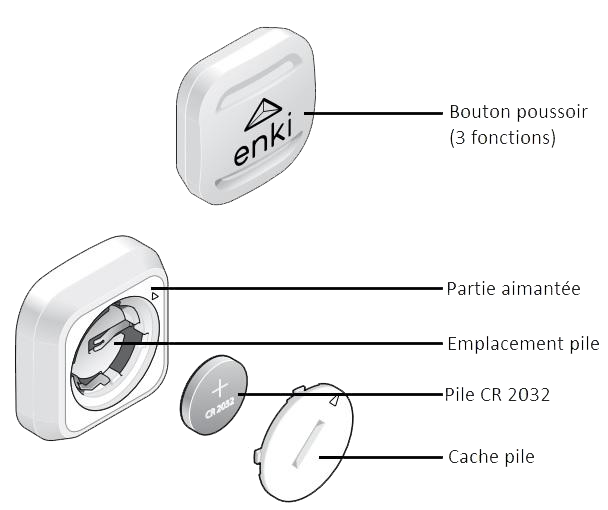

Product view:





How do I reset my product?





Technical documents / user manual
