Lexman: Connected Button - Product Sheet

Technical data

• Type: Smart button
• Requires ENKI box: Yes / ENKI Box V1 - ENKI Connect Box
• Status feedback: No
• Radio protocol: Zigbee 3.0
• Radio frequency: 2405 - 2480 MHz
• Power supply: CR2032 battery
• Operating temperature: 0 °C - 45 °C
• Maximum radio power: 20 dBm
• Use: indoor
• Color: Grey
• Composition: Mounting bracket / Button (magnet)
• Mounting method: Screw or adhesive
• Weight: NC
• Dimensions: NC
• Number of keys: 1
• Number of functions: 3 (single press, double press, long press)
• Waterproof level: NC

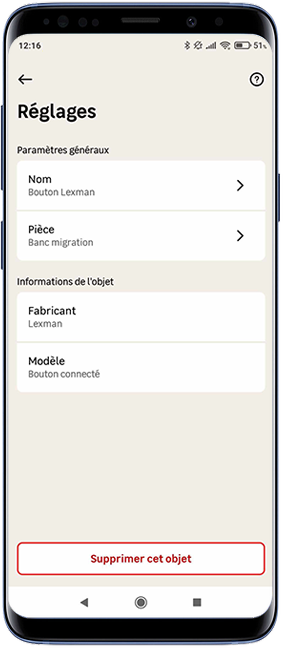

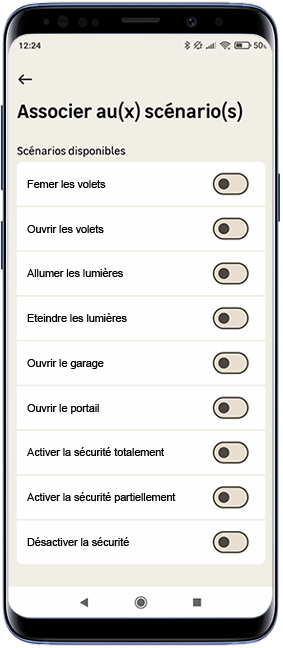

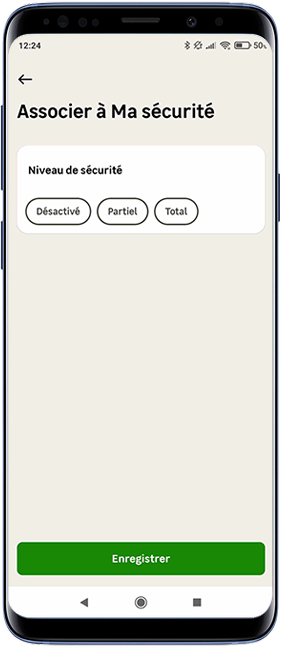

Product functionality in the ENKI app:

Object functionality	Properties	Integration into a scenario
		Actions	Triggers	Conditions

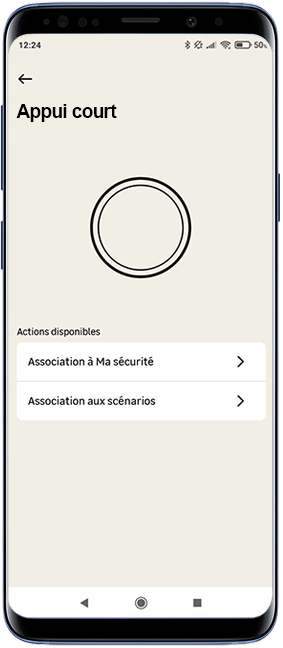

Short press	Associate an action with a device or a scenario	✘	✔	-
Long press	Associate an action with a device or a scenario	✘	✔	-
Double press	Associate an action with a device or a scenario	✘	✔	-
Battery status check	Notification in case of low battery	✘	✔	-

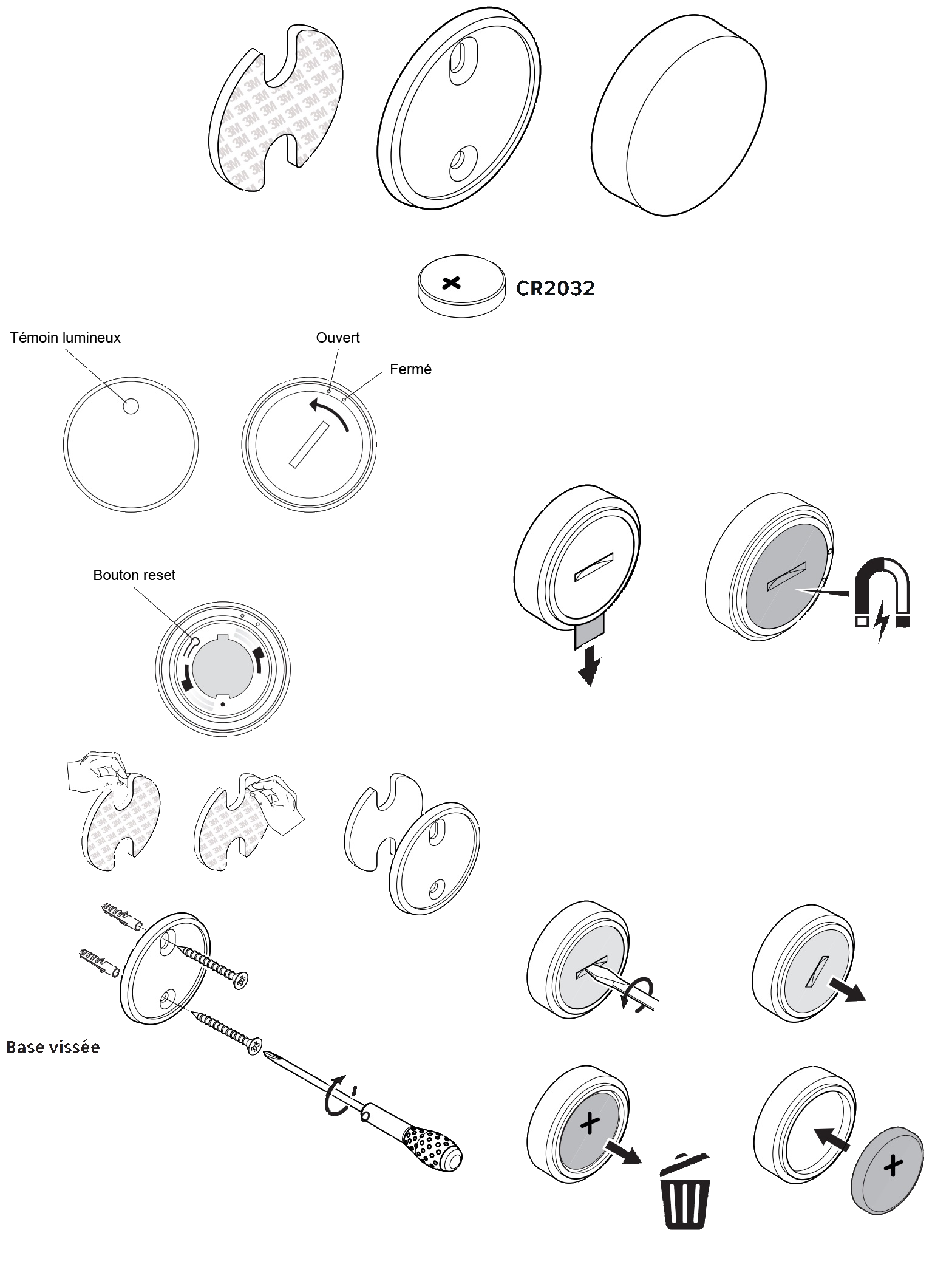

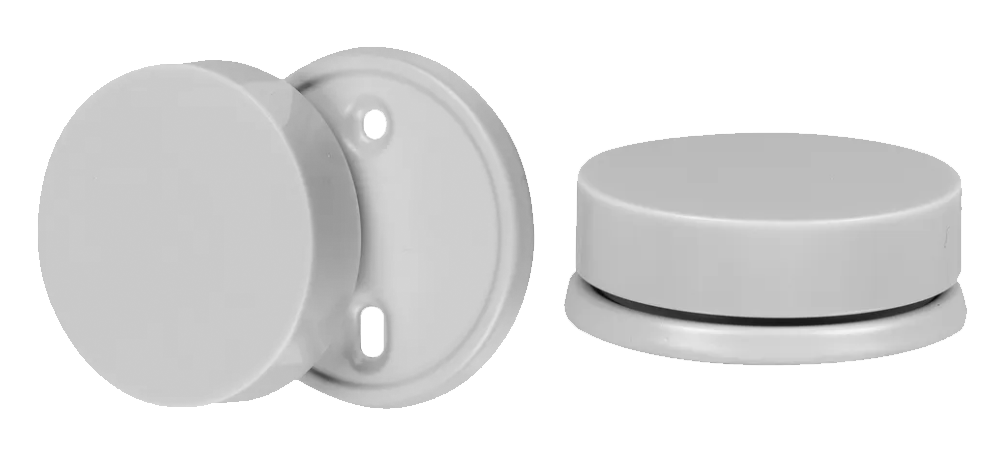

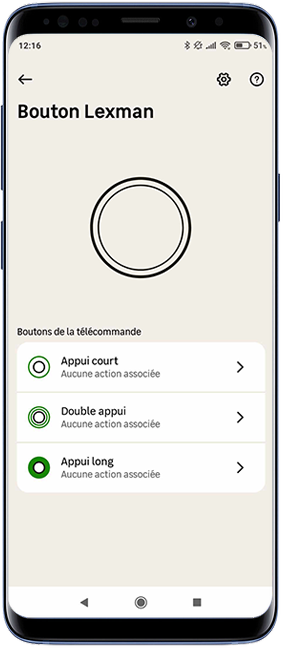

Product view:

What does the status of the smart button's LED mean:

Constantly blinking LED Not connected In pairing mode	LED stops blinking and turns off Pairing signal detected In the process of registering	LED lights up briefly Paired Button pressed Sending a command
