Prerequisites for installation and use :

• Enki* application + Enki Box or Enki Connect / Essentiel b Connect Box

* Prerequisite for the Enki application: Internet access and a telephone with a minimum operating system   : Android: 7 / iOS: 15

Communication protocol:

• Zigbee

Available countries:

• France**
• Spain
• Italy
• Poland
• Portugal

**Essentiel b Connect Box available in France only

Feedback available :

• No

Alexa voice control :

• No

Google Home voice control :

• No

Article contents:

• Technical description

• Product functionality in the ENKI application

• Product view

• How to reset my object?

• Technical documents / user manual





Technical description:

• Type : Connected key ring remote control
• Requires the Enki box: Yes / Enki Box V1 - Enki Connect Box
• Feedback: Yes
• Radio protocol: Zigbee
• Radio frequency: 2405-2480MHz
• Max. radio power: 20 dBm
• Operating temperature: -10 to 40°C
• Operating humidity: Up to 85% non-condensing
• Dimensions: 48.8mm x 35.5mm x 11.8mm
• Power supply: 3V / CR2032 battery
• Battery life: 2 years at a rate of 5 armings / disarming per day
• Weight: 19g

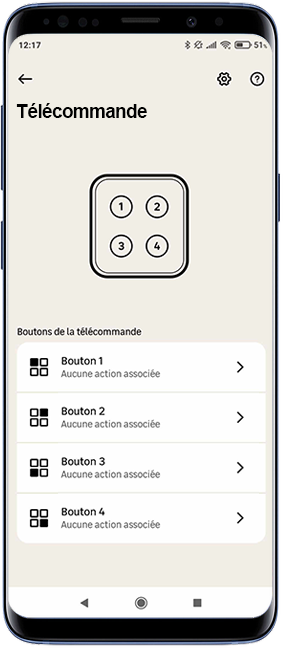

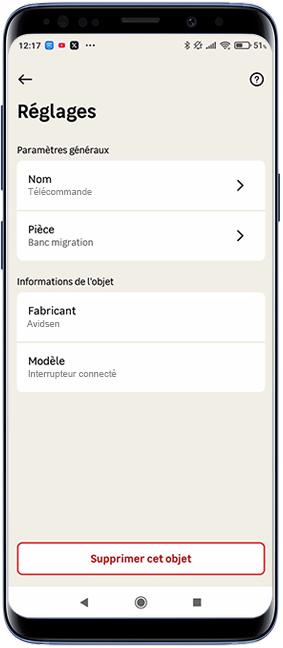

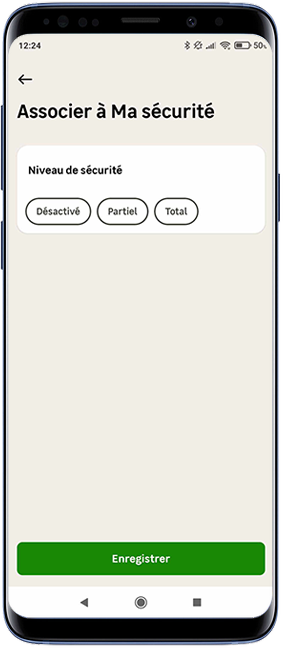

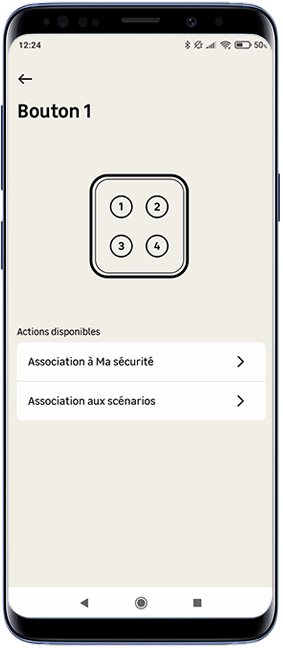

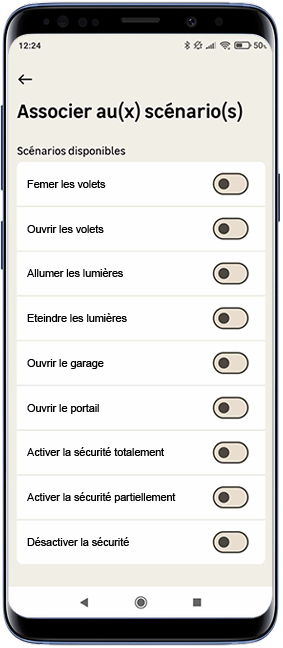

Product functionality in the ENKI application:

Object functionality	Properties	Integration into a scenario
		Actions	Triggers	Conditions
Full arming button	Associate an action for a device or a manual scenario	✘	✔	-
Partial arming button	Associate an action for a device or a manual scenario	✘	✔	-
Stop button	Associate an action for a device or a manual scenario	✘	✔	-
SOS button	Associate an action for a device or a manual scenario	✘	✔	-

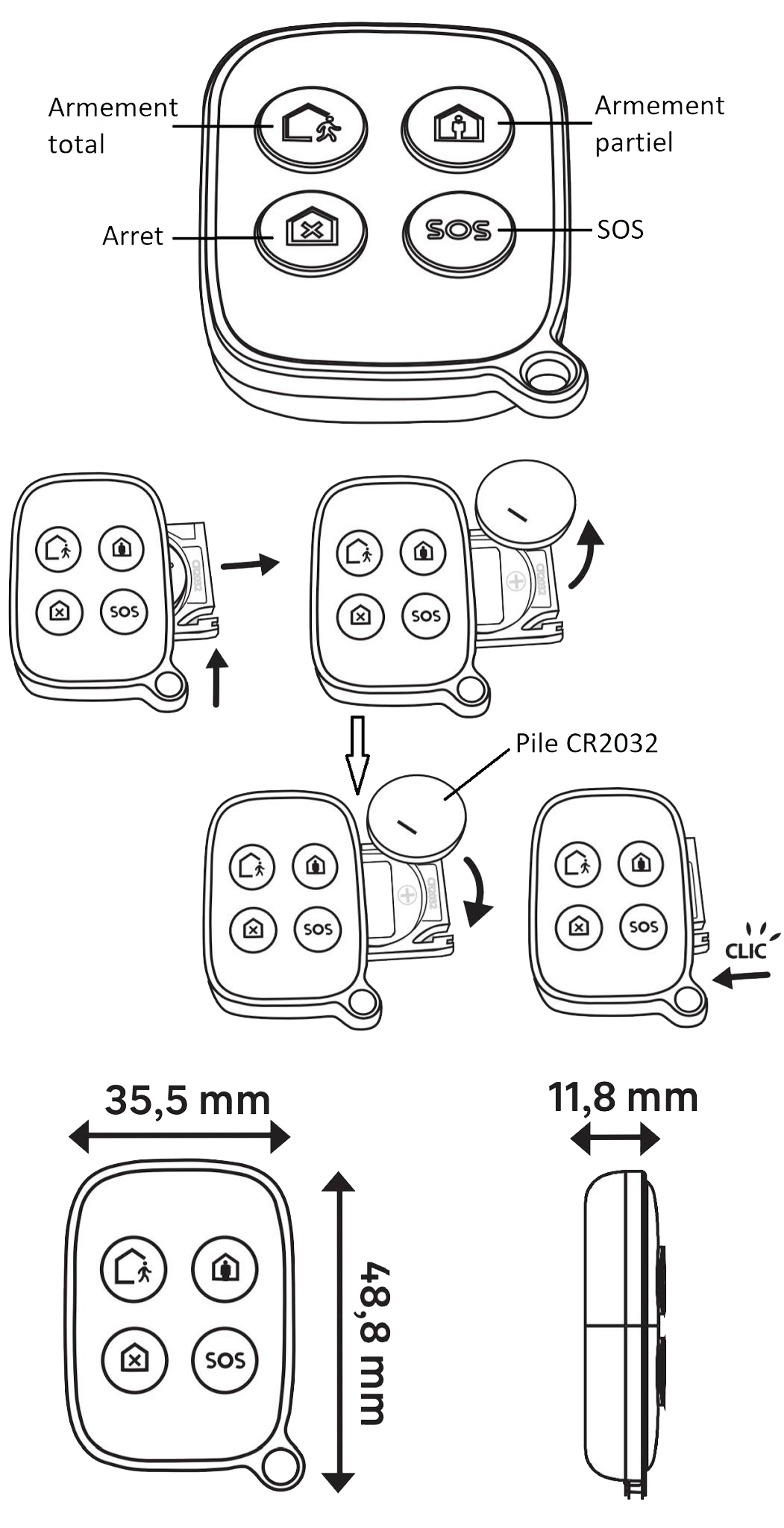

Product view:





What does the status of the alarm remote control LED mean:

Not connected Factory state	Connecting Pairing signal detected	Connected Command sent and received by the ENKI box	Connected Command sent and not received by the ENKI box	Low battery Replace CR2032 battery

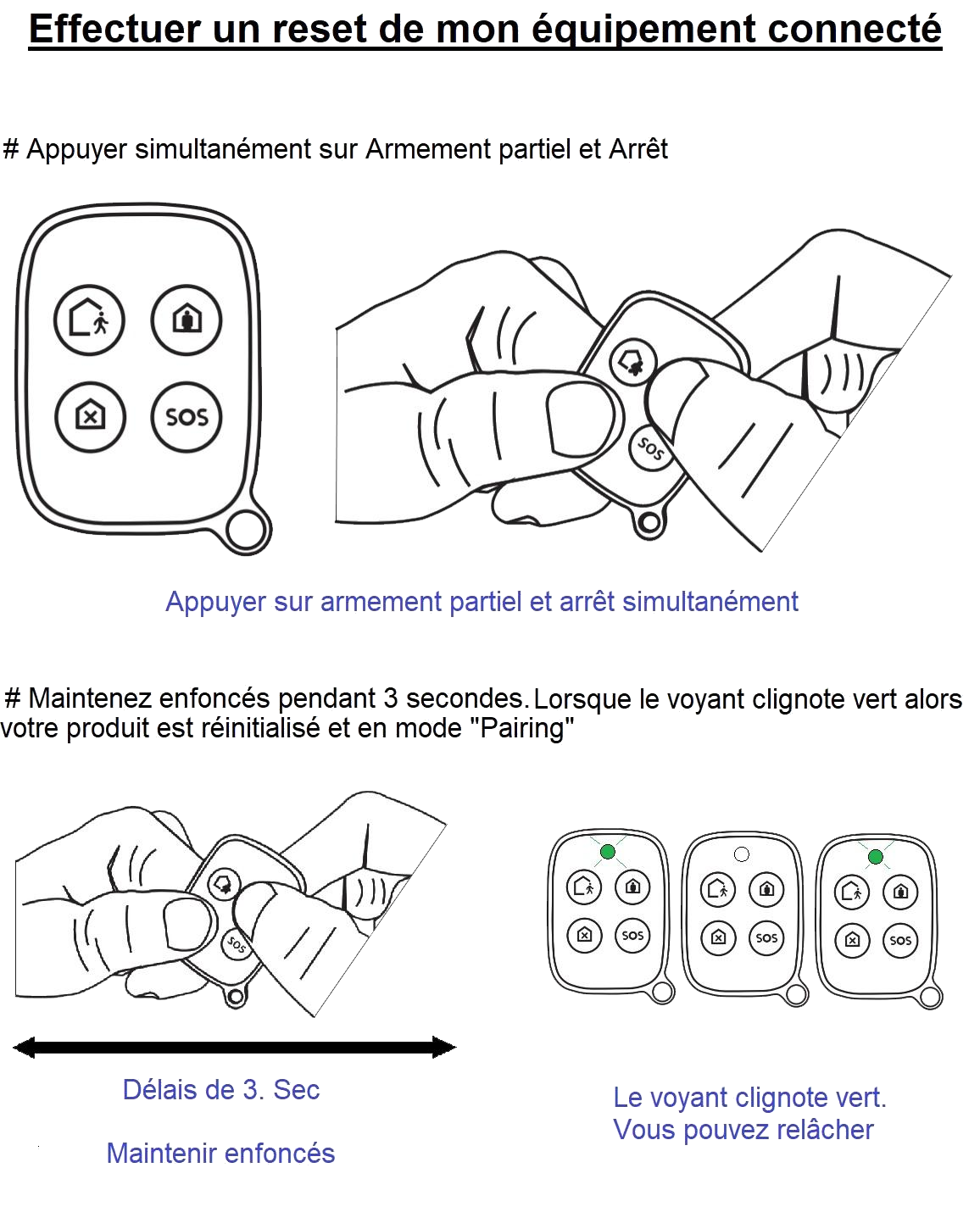

How to reset my object ?







Technical documents / user manual
