Requirements for installation and use:
- Enki App* + Enki Box or Enki Connect Box / Essentiel b Connect Box
* Requirements for the Enki app: Internet access and a phone with minimum operating system: Android: 7 / iOS: 15
Communication protocol:
- Zigbee
Available countries:
- France**
- Spain
- Italy
- Poland
- Portugal
**Essentiel b Connect Box available only in France
State feedback available:
- Yes
Alexa voice control:
- No
Google Home voice control:
- No
Article content:
Technical description
Product functionality in the ENKI app
Product view
What does the LED status of my product mean?
How to reset my device?
Technical documents / user manual
Technical description:
- Type: Connected humidity, temperature, brightness, and motion detector
- Requires Enki box: Yes / ENKI V1 Box - Enki Connect Box
- State feedback: Yes
-
Battery type: CR123A
- Battery life: 2.5 years - 20 detections/day
- Weight: 67.5 grams
- Dimensions: 51 mm x 67.5 mm x 51 mm
- Zigbee protocol: 3.0
- Maximum radio transmission: 20 dBm
- Frequency band: 2405 - 2480 MHz
-
Detection technology: infrared
- Detection angle: 110 degrees
- Detection distance: 5 meters
- Mounting height: 2.2 m - 2.8 m
- Thermometer sensitivity: +/- 1°C
- Hygrometer sensor sensitivity: From 5% to 80% relative humidity
- Light sensor sensitivity (Lux): 0 - 65534 Lx (+/- 20%)
- Use: indoor only
- Operating temperature: -10°C - 45°C
- Storage temperature: -20°C - 70°C
-
Avoid installation near an air conditioner, fan, refrigerator, oven, or any other
place where the temperature can change rapidly. -
To avoid affecting detection performance, do not place any objects near
the product. -
Any material between the product and the ENKI box reduces the operating distance
(mainly: reinforced concrete wall, concrete wall, metallic surfaces). Take this
into account when positioning your product.

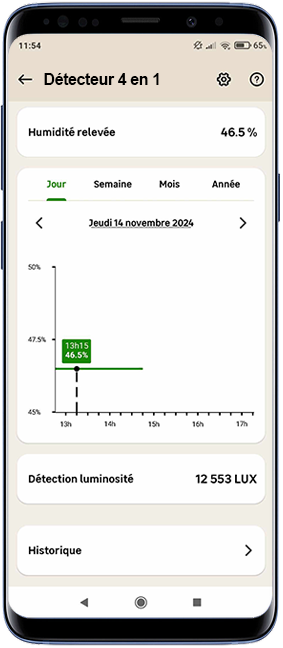

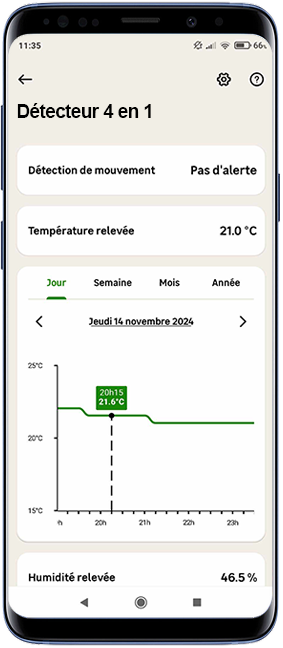

Product functionality in the ENKI app:
| Device functionality | Properties | Scenario integration | ||
| Actions | Triggers | Conditions | ||
| Presence detection | Motion detected / No motion detected | ✘ | ✔ | ✘ |
| Retrieve ambient temperature | Min: 0°C / Max: 40°C / Step: 1°C | ✘ | ✔ | ✔ |
| Retrieve ambient humidity | Min: 0% / Max: 100% / Step: 1% | ✘ | ✔ | ✔ |
| Retrieve light status | Min: 0 Lux / Max: 65534 Lux | ✘ | ✔ | ✔ |
| Event history |
Recording of motion events in the logbook History of temperature and humidity by "day", "week", "month", and "year" |
✘ | ✘ | ✘ |
| Allow Push notifications | Receive notifications via the app about the sensor status | ✘ | ✘ | ✘ |
| Battery level detection |
Battery level indication Notification received in case of low battery (if push notification is active). Low battery badge on the device. |
✘ | ✔ | ✔ |
|
|
||
| Control page | Settings | |
Product view:

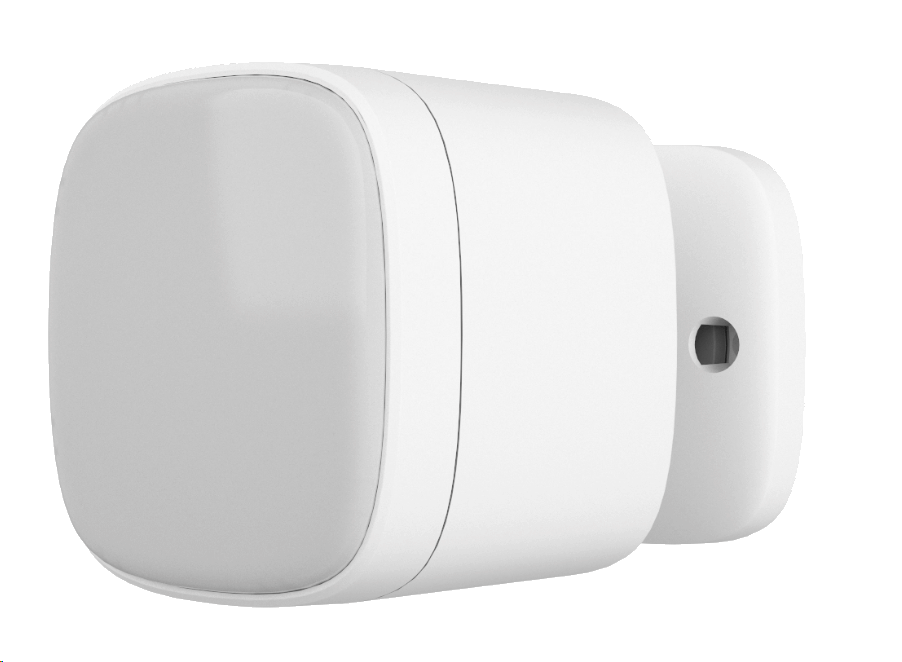

What does the LED status of my device mean:
| Blinks once every second. | Blinks once per second then stays lit for a long time before turning off. |
| Factory mode, the detector is ready for pairing. | Connecting. Pairing signal detected from the box. |

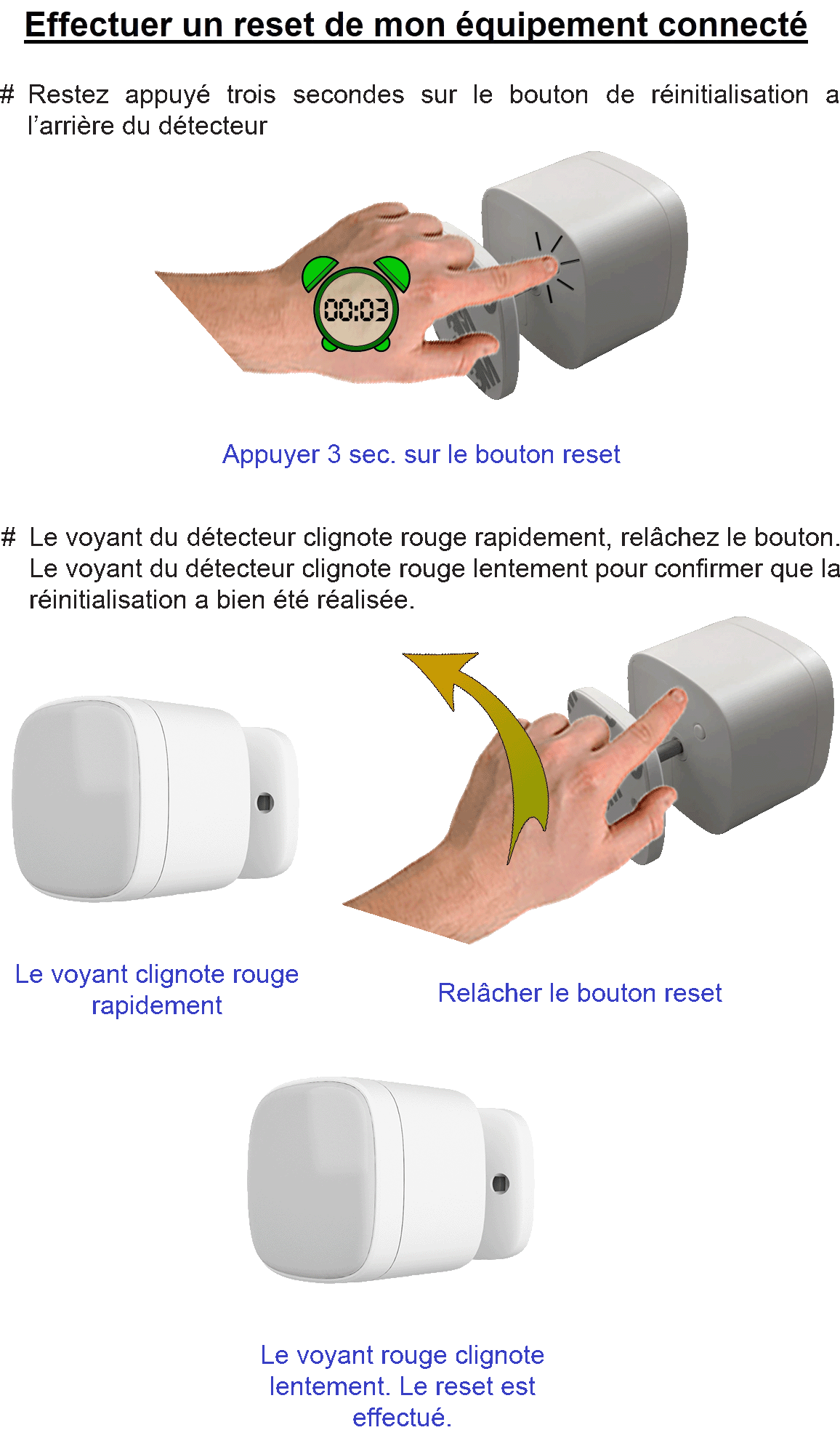

How to reset my device?
