Prerequisites for installation and use:

• Enki App* + Enki Box or Enki Connect Box / Essentiel b Connect Box

* Prerequisites for the Enki app: Internet access and a phone with minimum operating system: Android 7 / iOS 15

Communication protocol:

• Zigbee

Available countries:

• France**
• Spain
• Italy
• Poland

**Essentiel b Connect Box available only in France

State feedback available:

• Yes

Alexa voice control:

• No

Google Home voice control:

• No

Article content:

• Technical description

• Product functionality in the ENKI app

• Product view

• What does the LED status of my product mean?

• How to reset my device?

• Technical documents / user manual

Technical description:

• Type: Connected door or window opening detector.
• Requires Enki box: Yes / ENKI Box V1 - ENKI Connect Box
• State feedback: Yes
• Radio protocol: Zigbee
• Radio frequency: 2405 - 2480 MHz
• Max radio power: 20 dBm
• Power supply: Battery
  • Battery type 3V CR2032 (x1)
  • Battery life: 1.5 years for 20 detections/day
• Dimensions:
  • Detector: 30.6 mm x 40.6 mm x 17.3 mm
  • Magnet: 14.6 mm x 40.6 mm x 16.3 mm
• Activation / Deactivation of the opening sensor:
  • Closure detection: < 15 mm +/- 5 mm
  • Opening detection: > 20 mm +/- 5 mm
• Tamper protection: Yes
• Mounting: 3M double-sided adhesive tape or screws (not included)
• Operating temperature 0°C - 40°C
• Storage temperature -10°C - 50°C
• Operating humidity: Up to 85% non-condensing

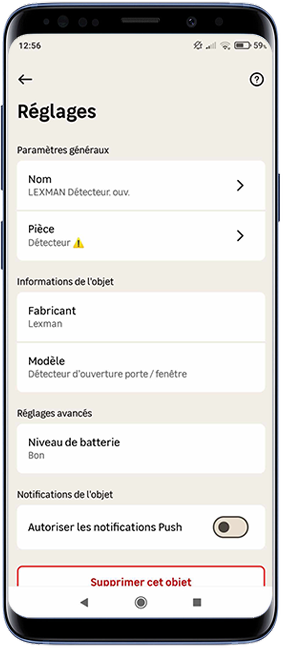

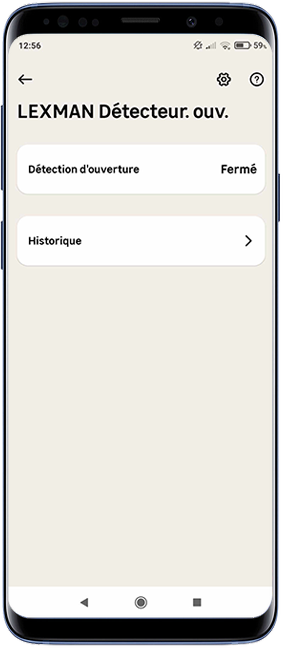

Product functionality in the ENKI app:

Control page	Settings

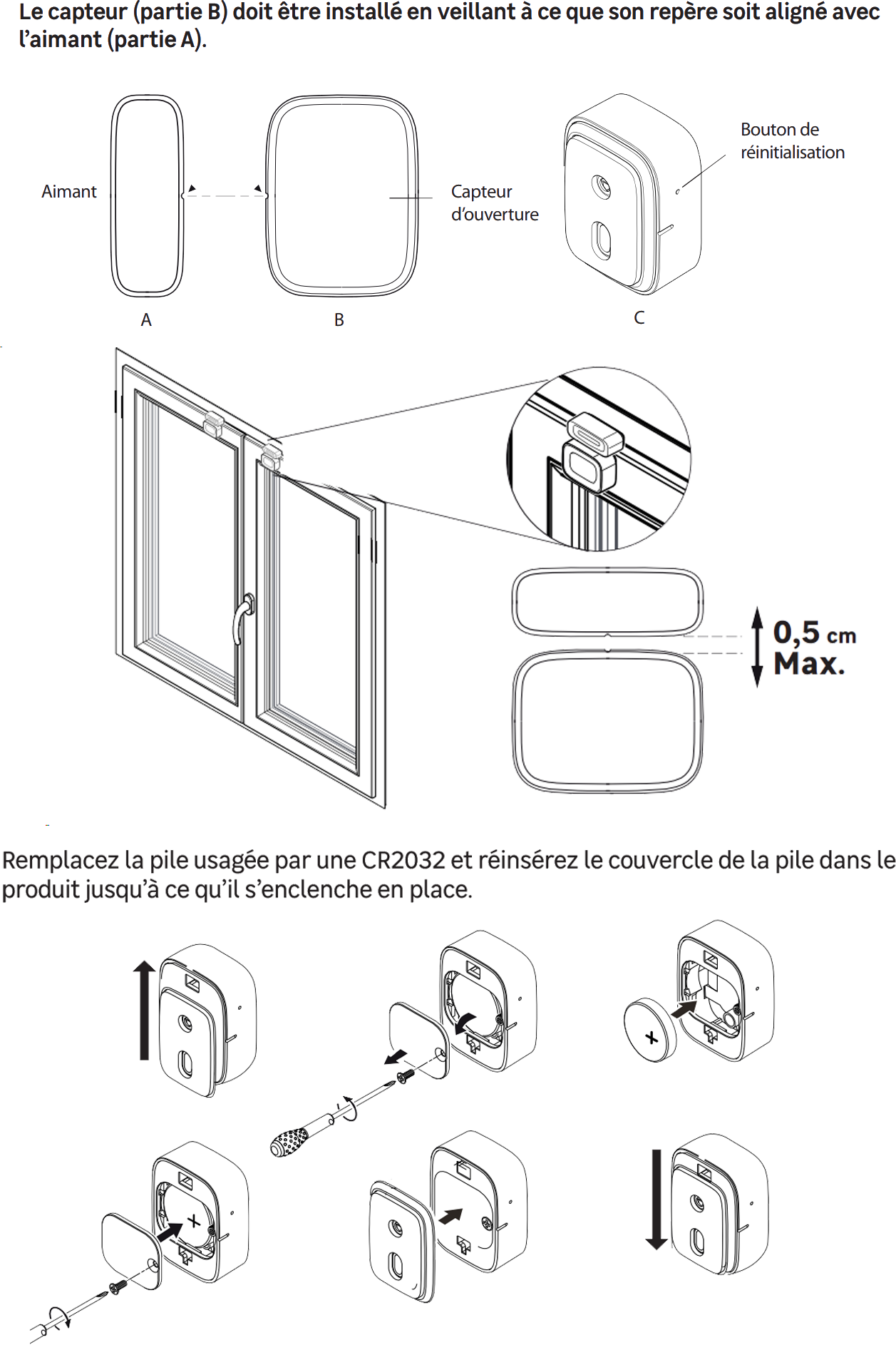

Product view:

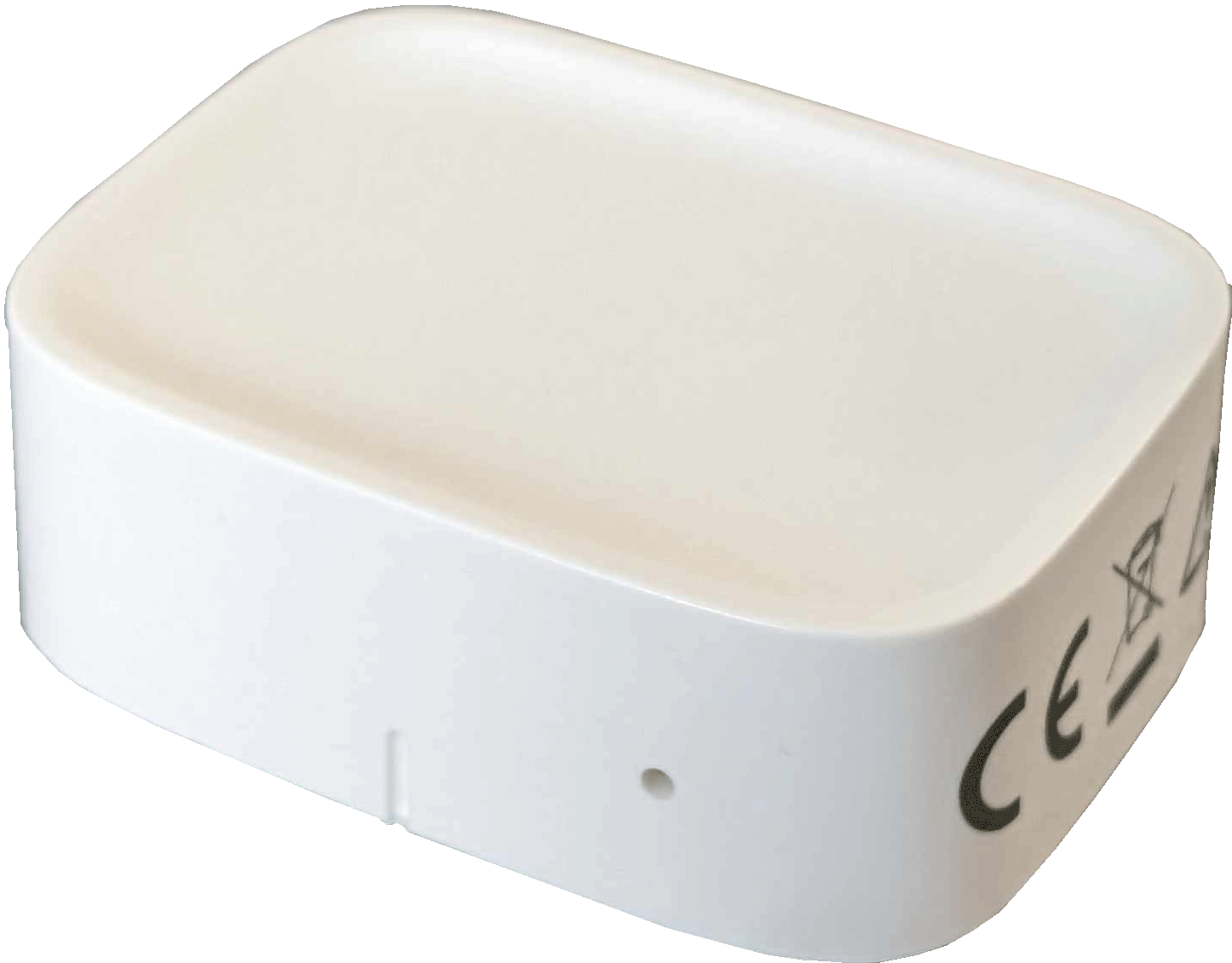

What does the LED status of my device mean:

Flashes every second	Flashes red then stays solid red for a long time
Factory mode. Ready to pair	Pairing in progress. Detecting the box signal

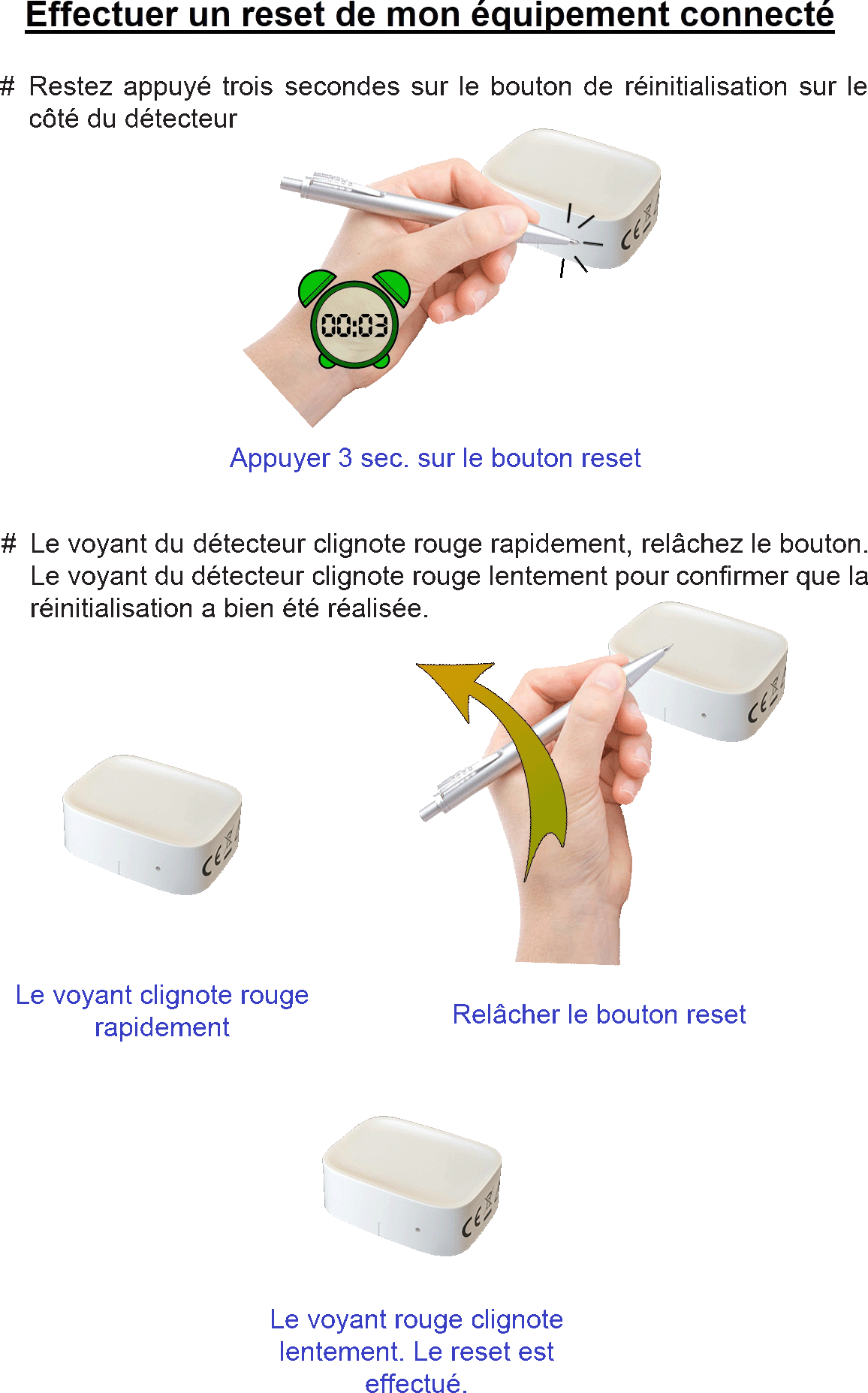

How to reset my device?

Technical documents / user manual
