Requirements for installation and use:

• Enki App* + Enki Box or Enki Connect Box / Essentiel b Connect Box

* Requirements for the Enki app: Internet access and a phone with minimum operating system: Android 7 / iOS 15

Communication protocol:

• Zigbee

Available countries:

• France**
• Spain
• Italy
• Poland
• Portugal

**Essentiel b Connect Box available only in France

State feedback available:

• Yes

Alexa voice control:

• No

Google Home voice control:

• No

Article contents:

• Technical description

• Product functionality in the ENKI app

• Product view

• What does my product's LED status mean?

• How do I reset my device?

• Technical documents / user manual

Technical description:

• Type: Connected opening and vibration detector for door or window.
• Requires Enki box: Yes / ENKI Box V1 - ENKI Connect Box
• State feedback: Yes
• Radio protocol: Zigbee
• Radio frequency: 2405 - 2480 MHz
• Max radio power: 20 dBm
• Operating temperature: 0 to 40°C
• Operating humidity: Up to 85% without condensation
• Storage temperature: -20 to 60°C
• Sensor dimensions: 20.1 mm x 20 mm x 67 mm
• Magnet dimensions: 19.6 mm x 12.5 mm x 46 mm
• Closure detection: < 20 +/- 5 mm
• Opening detection: > 25 +/- 5 mm
• Vibration sensor trigger: Sensitivity configurable in the app
• Battery type: 3V / CR2
• Battery life: 1.5 years (based on 20 detections per day)
• Mounting: Double-sided adhesive tape or screws (not included)
• Tamper protection: Yes

Product functionality in the ENKI app:

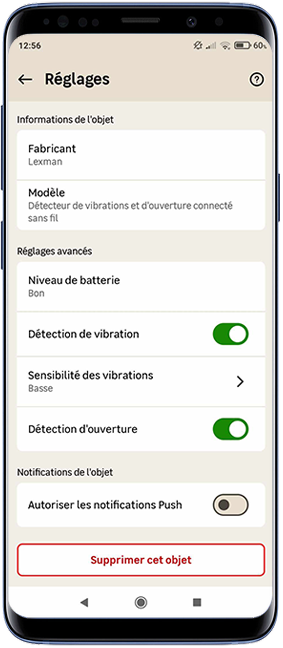

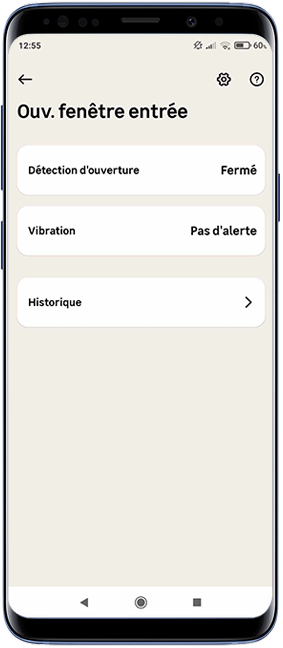

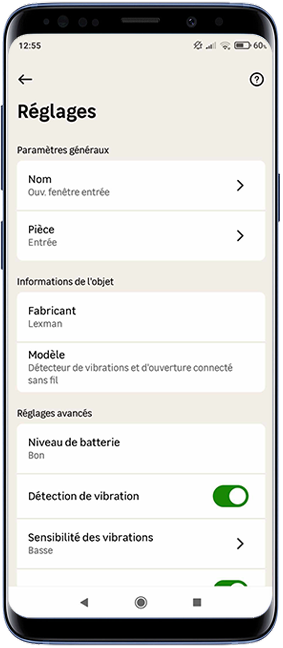

Control page	Settings

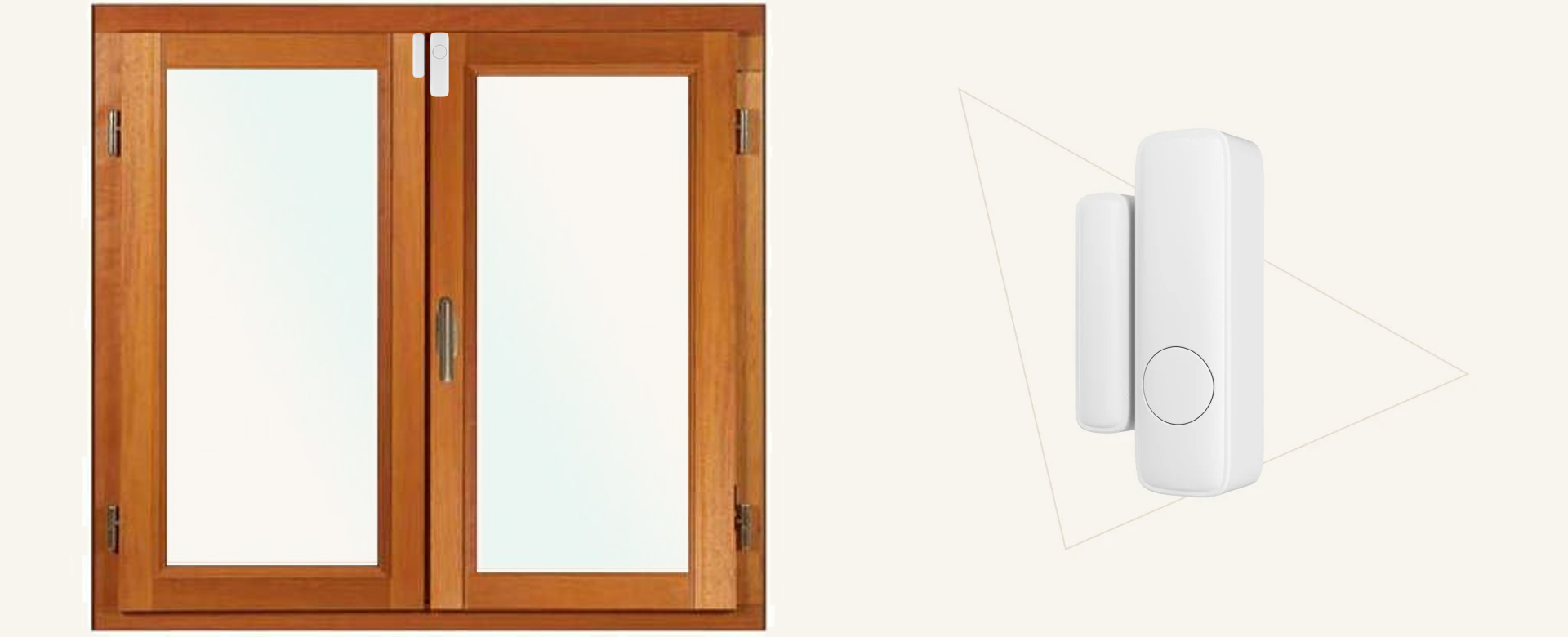

Product view:

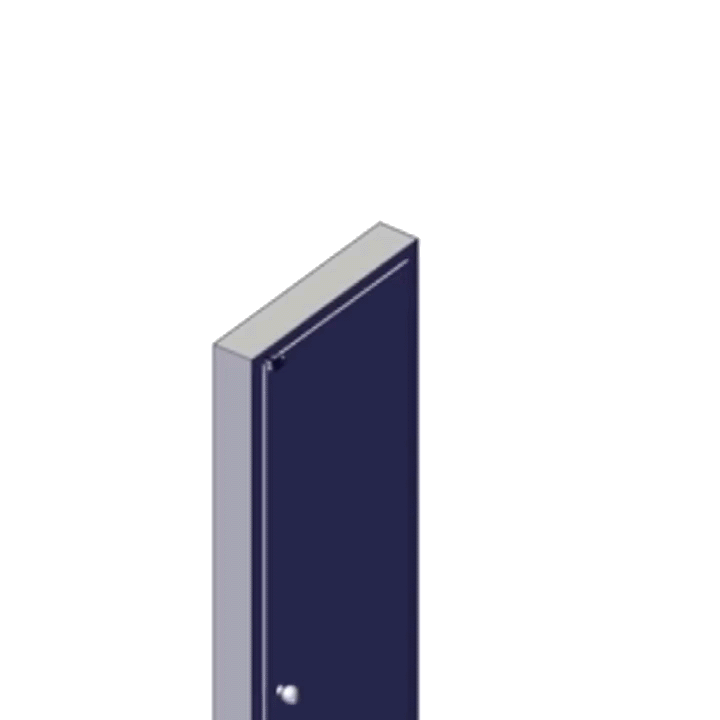

Raise the magnet so that it is at the same height as the detector:

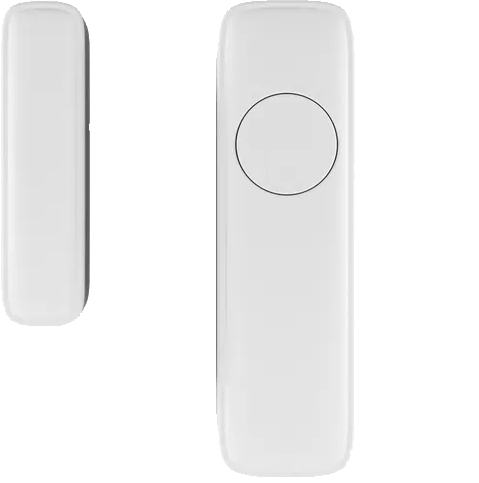

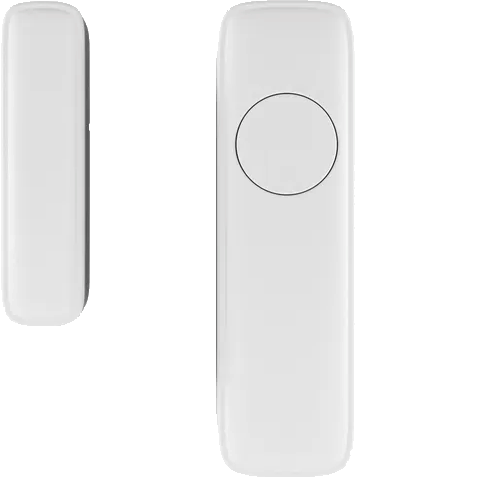

What does my device's LED status mean:

Flashes red every second	Flashes red every second then stays solid green for a long time	Flashes green once	Flashes green three times	Flashes orange quickly for a short moment
Factory mode. Ready to be paired	Pairing in progress. Detecting box signal	Vibration detected	Opening or closing detected	Low battery, replace battery

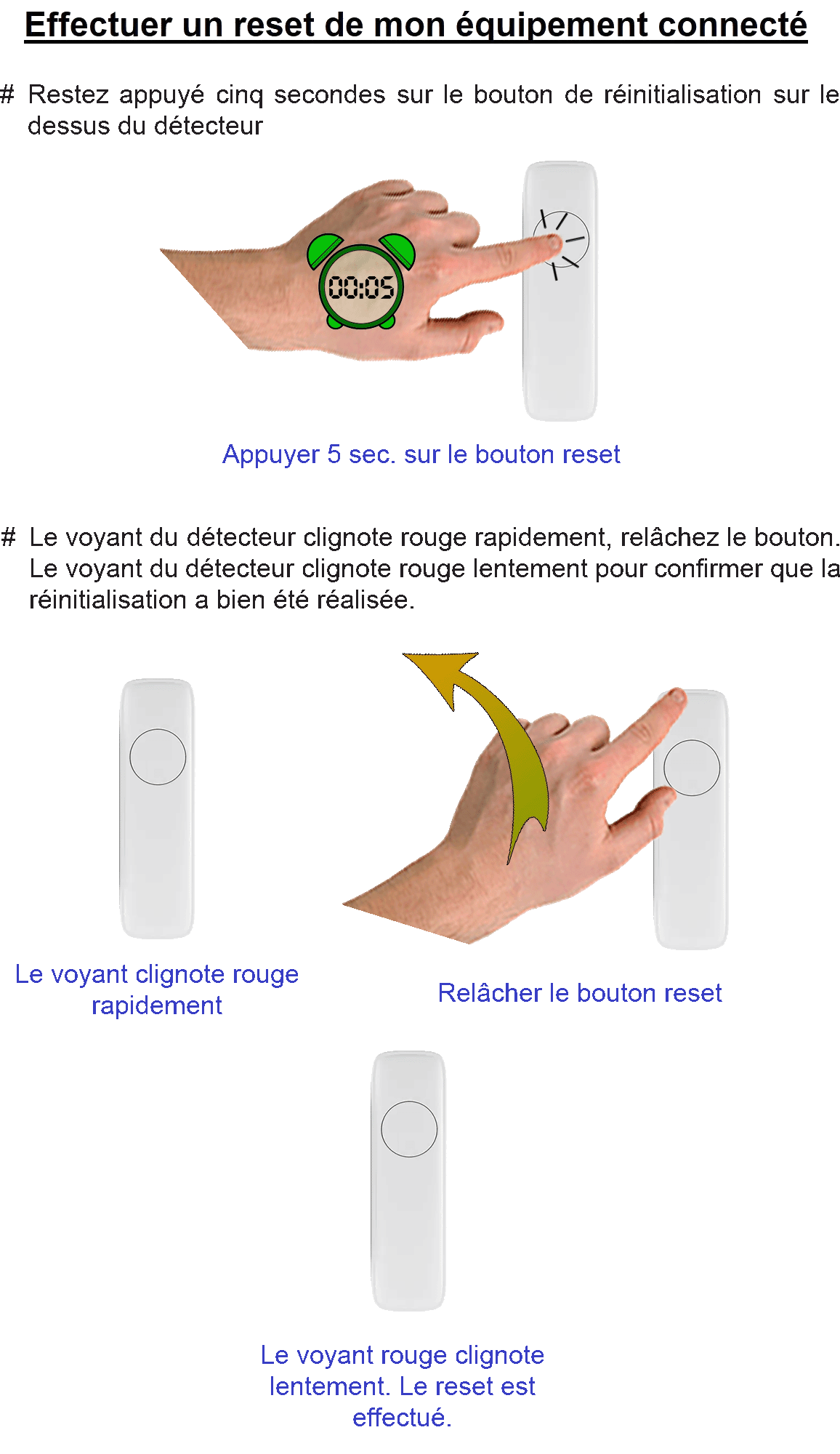

How do I reset my device?

Technical documents / user manual
