Prerequisites for installation and use:

• Enki App* + Enki Box or Enki Connect Box / Essentiel b Connect Box

* Prerequisites for the Enki app: Internet access and a phone with minimum operating system: Android: 7 / iOS: 15

Communication protocol:

• Zigbee

Available countries:

• France**
• Spain
• Italy
• Poland
• Portugal

**Essentiel b Connect Box available only in France

Status feedback available:

• Yes

Alexa voice control:

• No

Google Home voice control:

• No

Article content:

• Technical description

• Product functionality in the ENKI app

• Product view

• What does the LED status of my product mean?

• How to reset my device?

• Technical documents / user manual

Technical description:

• Type: Connected motion detector
• Requires Enki box: Yes / ENKI V1 Box - Enki Connect Box
• Status feedback: Yes
• Radio protocol: Zigbee
• Radio frequency: 2405-2480 MHz
• Max radio power: 20 dBm
• Dimensions: 80.52 mm x 60.45 mm x 43.18 mm
• Detection angle: 80°
• Detection distance: 8 meters
• Pet immunity: 25 Kg
• Mounting height: 1.9 m to 2.3 m
• Battery life: 3 years / 20 detections per day
• Tamper protection: Yes
• Operating temperature: 0 to 40°C
• Operating humidity: Up to 85% non-condensing
• Storage temperature: -20 to 60°C
• Detection technology: infrared

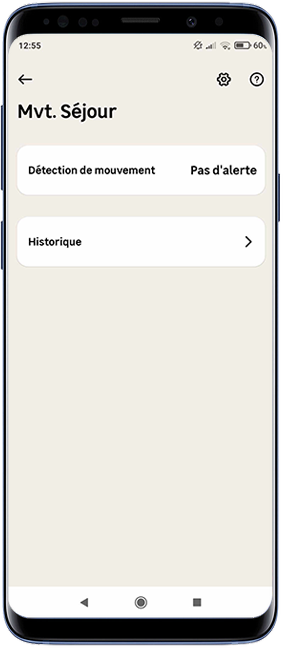

Product functionality in the ENKI app:

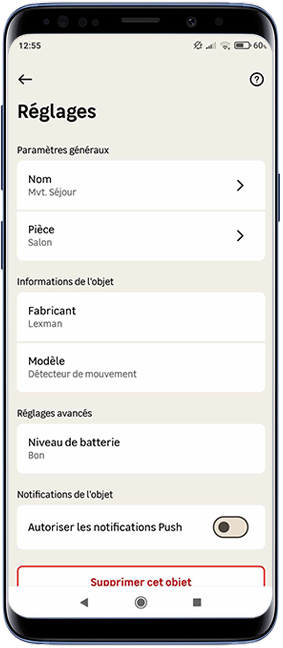

Control page	Settings

Product view:

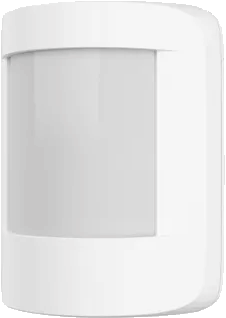

What does the LED status of my device mean:

Blinks once every second.	Blinks once per second then stays lit for a long time before turning off.
Factory mode, the detector is ready for pairing.	Connecting. Pairing signal from the box detected.

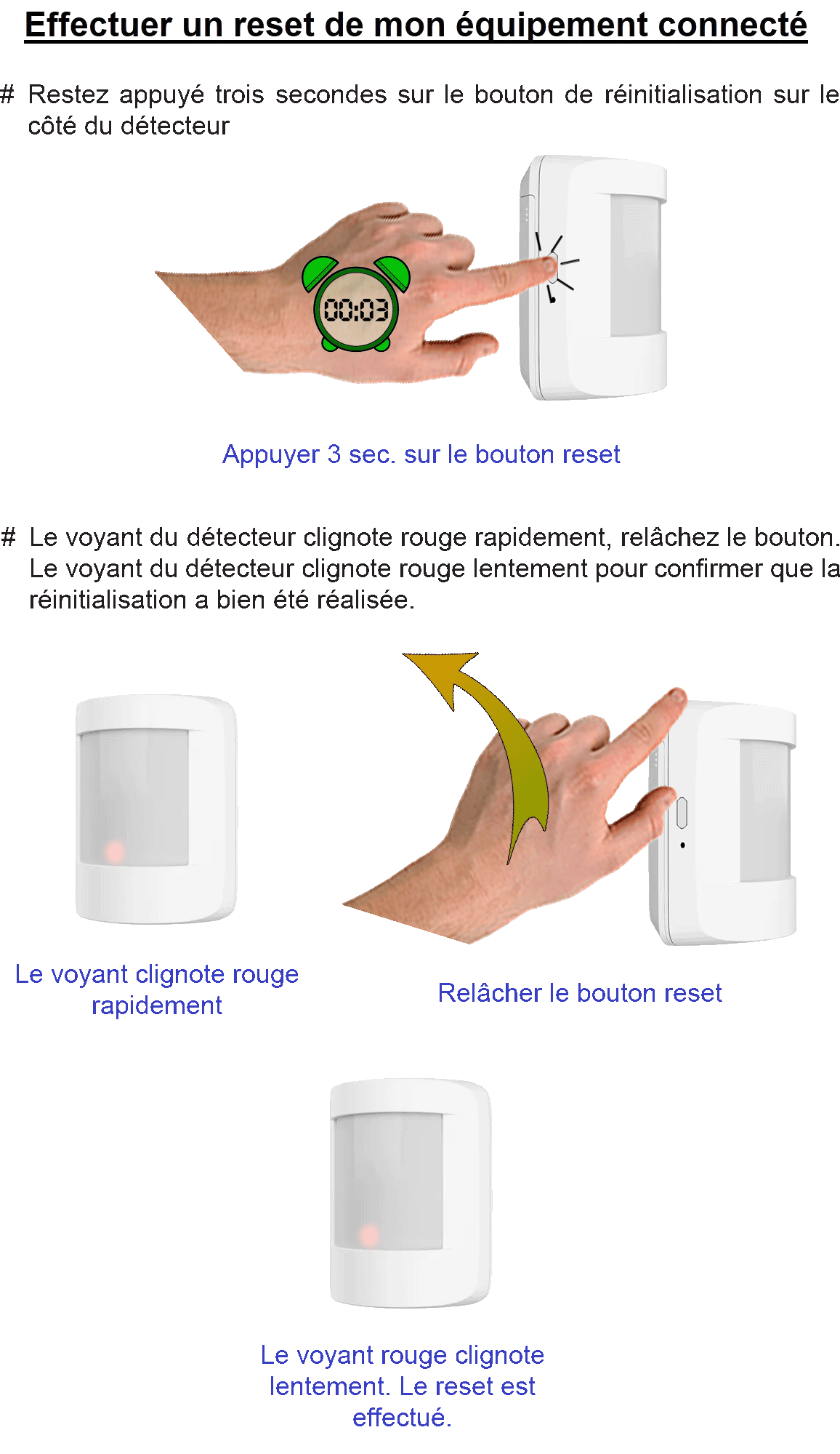

How to reset my device?

Technical documents / user manual
