Prerequisites for Installation and Use:
- Enki App* + Enki Box
* Prerequisites for the Enki app: Internet access and a phone with minimum operating system: Android: 7 / iOS: 15
Communication Protocol:
- Enocean
Available Country:
- France
Status Feedback Available:
- Yes
Alexa Voice Control:
- No
Google Home Voice Control:
- No
Article Contents:
Technical Description
Product Functionality in the ENKI App
Product Overview
What Does My Product's LED Status Mean?
How to Reset My Device?
Technical Documents / User Manual
Technical Description:
- Type: Connected Smoke and Air Quality Detector
- Requires Enki Box: Yes / Enki Box V1
- Status Feedback: Yes
- Radio Protocol: EnOcean
- Acoustic Power: 85 dB at 3 m
- Operating Indicator: Red Flashing LED
- Insect Protection: Prevents false alarms
-
Basic Functions:
- Smoke alarm
- Low battery warning
- End-of-life detector warning
- Manual detector function test
- Auto-function test (every 45 seconds)
- Detector pause (10 min)
- Low battery alarm pause (8 h)
- Temperature. Resolution: 0.2°C
- Humidity. Resolution: 1% RH
-
Advanced Functions:
- Device status
- Permanent "keep alive" status
- Alarm history
- Remaining battery life
- Hygrothermal comfort index on 3 levels
- Indoor air quality index on 4 levels
- User advice and actions to improve comfort and indoor air quality indices
- Monitor location in the home environment: living rooms, bedroom, etc.
- Temperature and humidity measurement history
- Power Supply: Built-in and sealed lithium batteries
- Battery Life: 10 years
- Dimensions: 105 mm x 105 mm x 30 mm
- Net Weight: 150 g (including battery and mount)
-
Operating Conditions:
- Indoor home environment
- Temperature: 4°C to +45°C
- Humidity: 15% RH to 95% RH
- Mounting Type: Wall

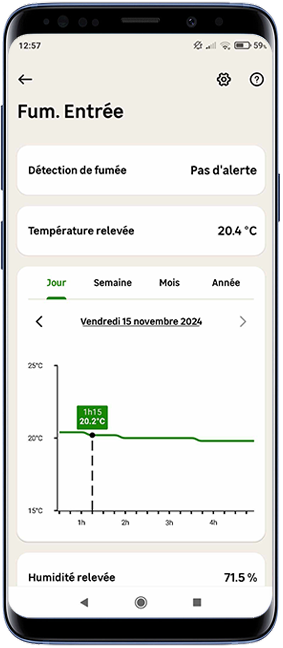

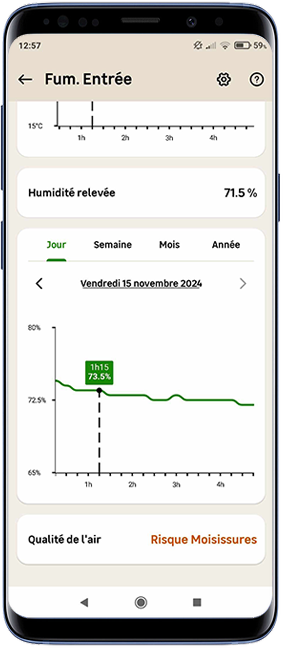

Product Functionality in the ENKI App:
| Device Functionality | Properties | Scenario Integration | ||
| Actions | Triggers | Conditions | ||
| Retrieve ambient temperature | Min: 0°C / Max: 40°C / Step: 1°C | ✘ | ✔ | ✔ |
| Retrieve ambient humidity | Min: 0% / Max: 100% / Step: 1% | ✘ | ✔ | ✔ |
| Detect smoke | Smoke detected / No smoke detected | ✘ | ✔ | ✔ |
| Analyze air quality | Optimal indoor air quality / Dry indoor air / Very humid indoor air / Very hot and humid indoor air / Unknown data | ✘ | ✔ | ✔ |
| Allow Push notifications | Receive notifications via the app on sensor status | ✘ | ✘ | ✘ |
| Battery level detection |
Battery level indication Receive notification in case of low battery (if push notification is active). Low battery badge on the device. |
✘ | ✔ | ✔ |
| Check maintenance status | Product maintenance alert | ✘ | ✔ | ✔ |
|
|
||

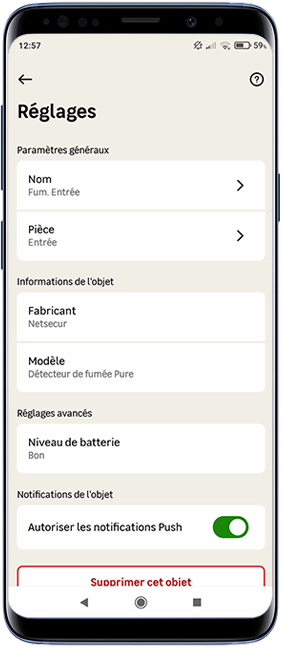

| Control Page | Settings | |

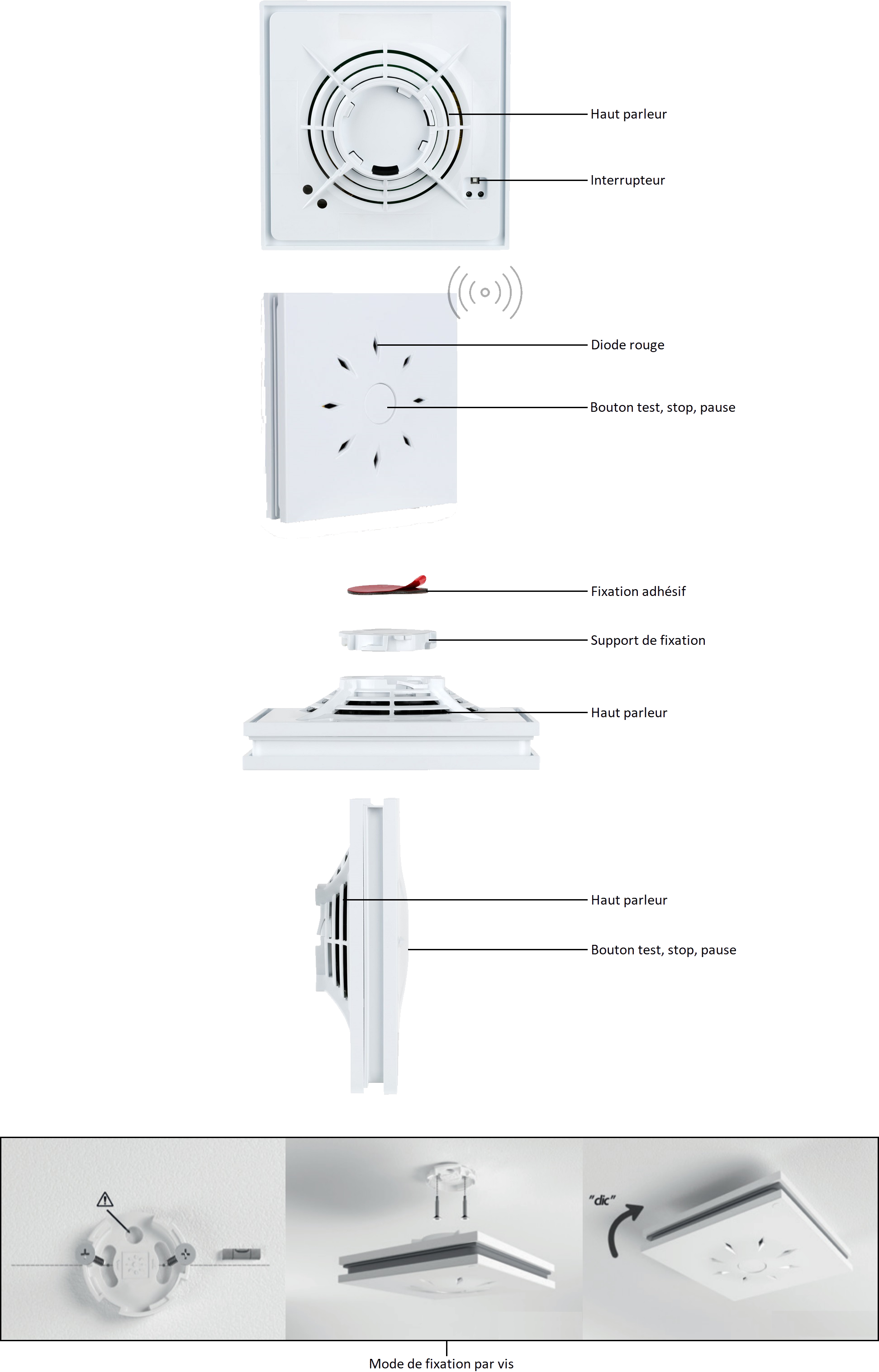

Product Overview:
What Does My Device's LED Status Mean:

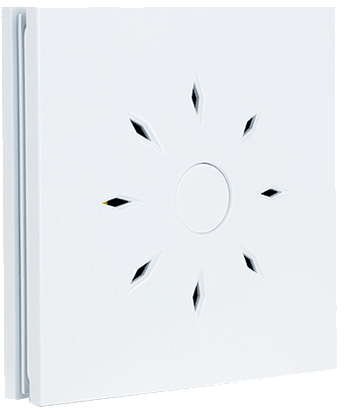

| Flashes several times within one second with a beep sound | Flashes once every 10 seconds for 10 minutes | Flashes once every 10 seconds for 10 minutes |
|
Test: Press the detector button until the alarm sounds, then release |
Alarm pause: Press the detector button until the detector's red LED starts flashing |
Alarm stop: Press the detector button until the alarm stops |

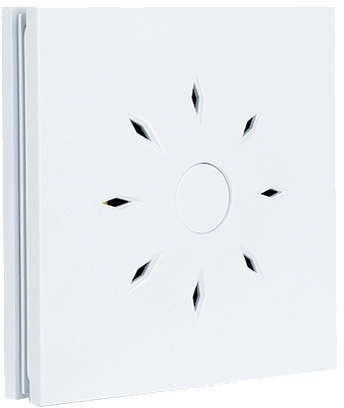

| 1 flash every 45 seconds with 1 beep sound for at least 30 days | 1 flash every 45 seconds for 8 hours | 1 beep every 45 seconds until battery depletion. |
| Low battery warning |
Low battery warning pause: Press the detector button until the detector's red LED starts flashing |
End-of-life warning for the smoke detector (DAAF: autonomous smoke detector) |
| 1 flash every 45 seconds with 1 or 2 beep sounds | ||
| Detector malfunction. |

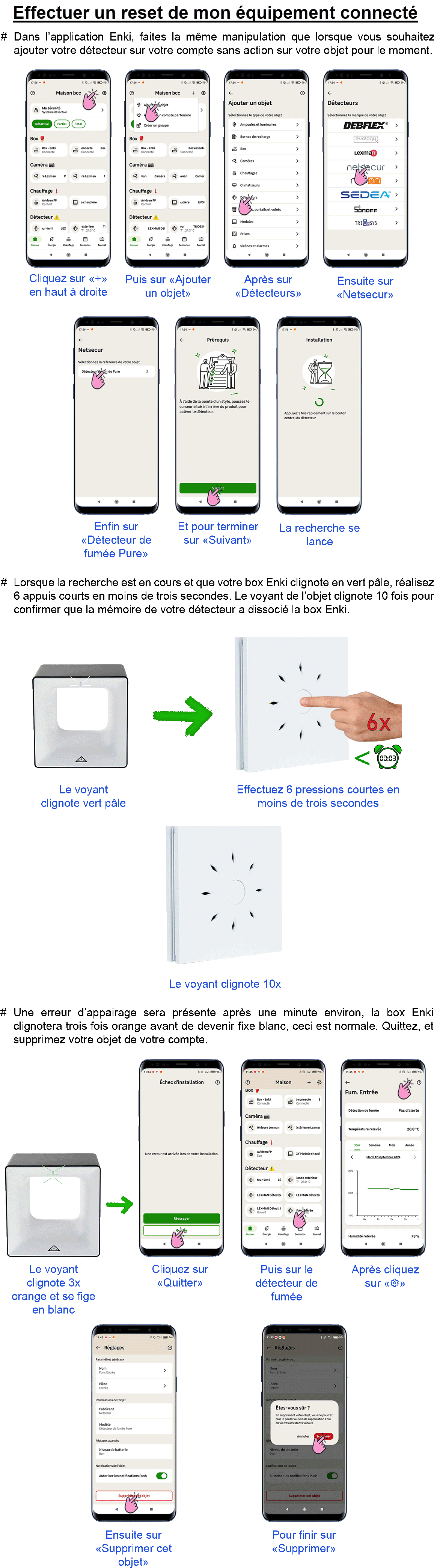

How to Reset My Device?
