Prerequisites for installation and use:

• Enki Application

* Prerequisites for the Enki application: Internet access and a phone with minimum operating system: Android: 7 / iOS: 15

Communication protocol:

• Wi-Fi

Available countries:

• France**
• Spain
• Greece
• Italy
• Poland
• Portugal
• Romania

State feedback available:

• Yes

Alexa voice control:

• Not direct, but possible via manual scenarios

Google Home voice control:

• Not direct, but possible via manual scenarios

Article contents:

• Technical description

• Product functionality in the ENKI application

• Product view

• What does my product's LED status mean?

• How does... my device work?

• How to reset my device?

• Technical documents / user manual

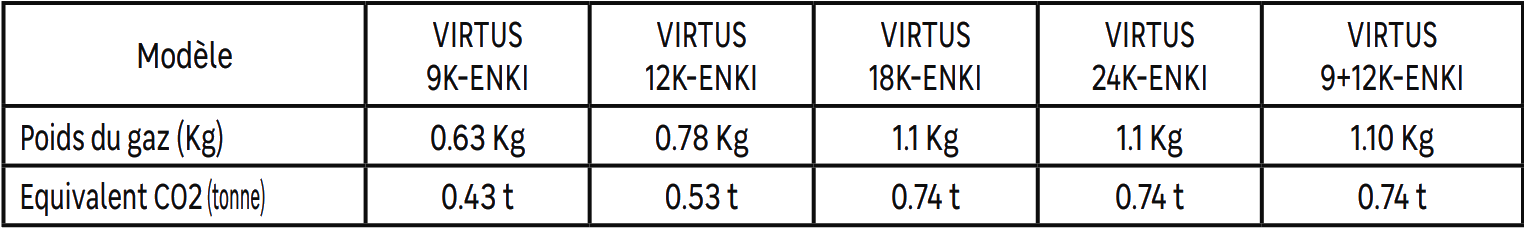

Technical description:

• Type: Connected reversible air conditioner
• Requires ENKI box: No
• State feedback: Yes

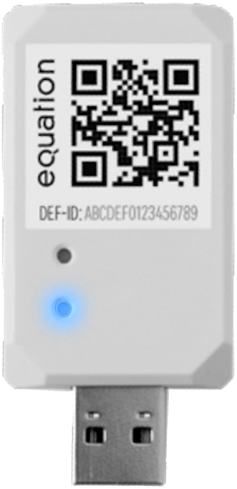

• Radio protocol: Wi-Fi (Via Wi-Fi dongle)
• Wi-Fi dongle included in packaging, not sold separately.
• Radio frequency: 2.4 GHz
  • IEEE-802.11b, IEEE-802.11g, IEEE802.11n
  • WPA/WPA2/WPA2-Enterprise
  • Key compatible between 8 and 31 characters

To pair the device, your Wi-Fi network must be configured with WPA2 on the 2.4 GHz frequency.
If your 2.4 GHz Wi-Fi network is mixed with 5 GHz, 6 GHz, or 7 GHz frequencies, it is essential to separate the bands and assign a distinct SSID (Wi-Fi network name) to each frequency.

Product functionality in the ENKI application:

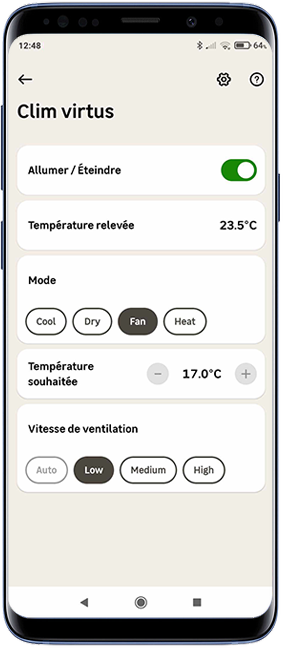

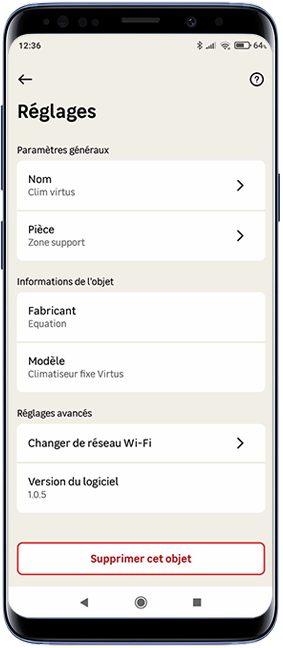

Control page	Settings

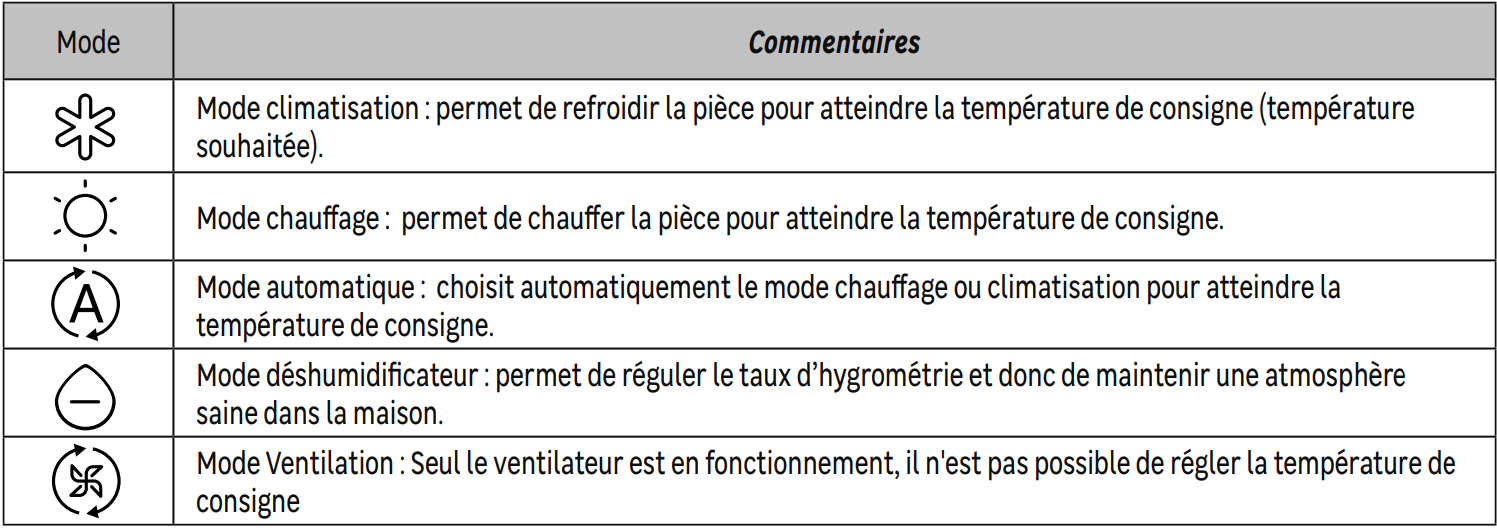

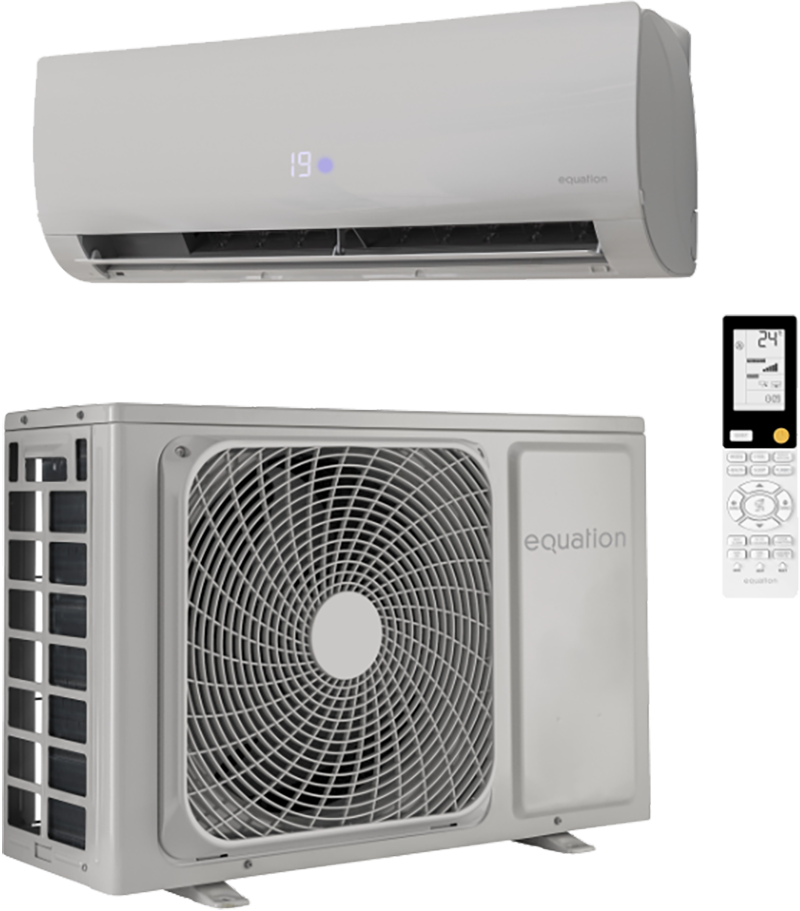

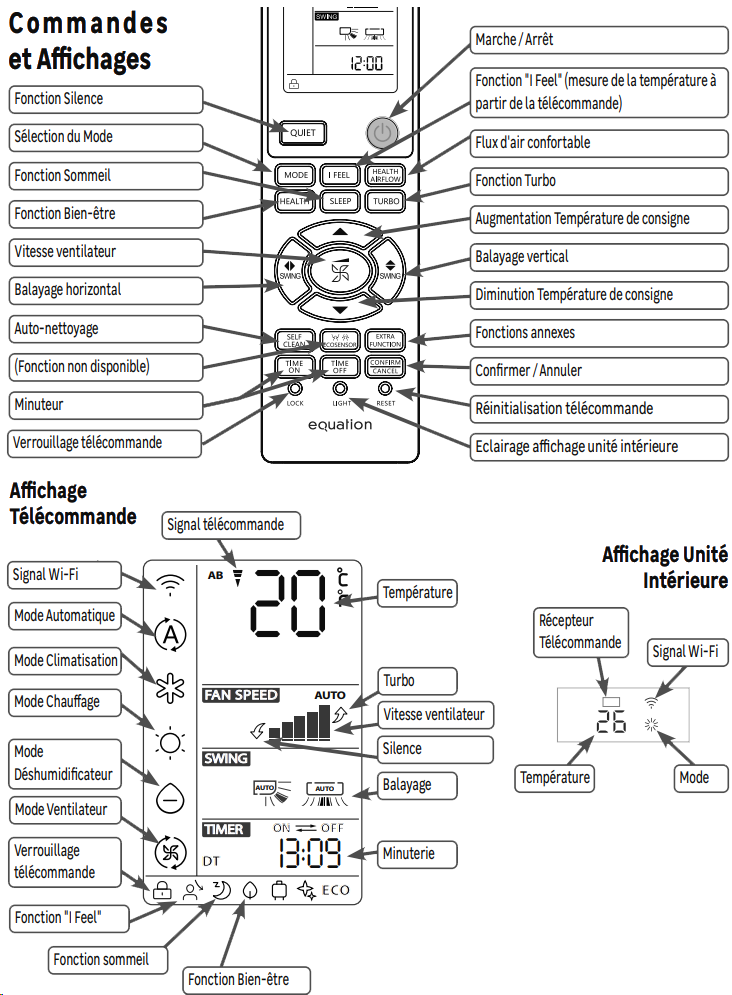

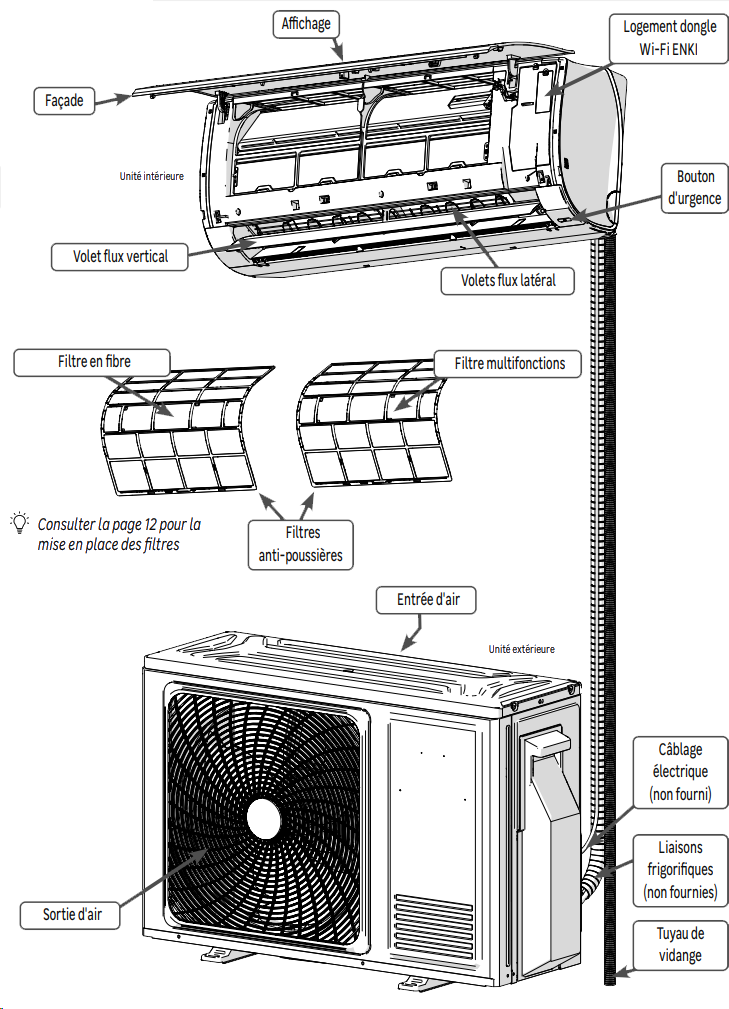

Product view:

What does my device's LED status mean:

Slow blinking + temporary Wi-Fi network	Fast blinking	Fast blinking + temporary Wi-Fi network	Solid
No data, Wi-Fi dongle ready to be paired	Data present Attempting connection	Data present, disconnected. Reconnection needed	Data present Connected

How does... my device work?

	How does pairing my Equation air conditioner work?
	How does reconnection of my Equation air conditioner work?
	How does changing the connection of my air conditioner between two active Wi-Fi networks work?
	How does my Fixed or Virtus Equation air conditioner work in a scenario?

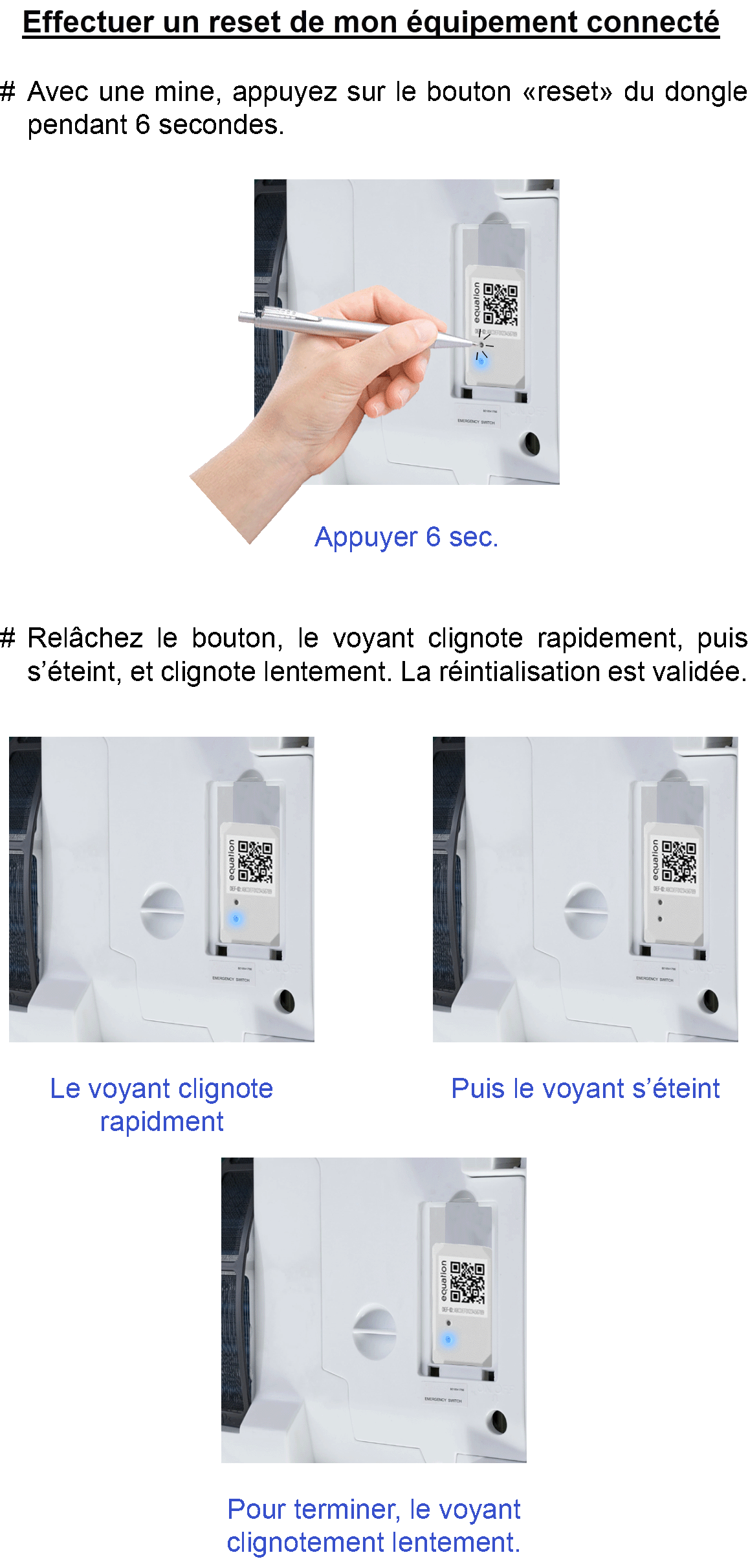

How to reset my device?

Technical documents / user manual
