General Information:
Requirements for Installation and Use:
- Enki App
* Prérequis pour l'application Enki : Accès internet et un téléphone avec système d'exploitation minimum : Android: 7 / iOS: 16.4
Communication Protocol:
- Wi-Fi
- Bluetooth
* Bluetooth : La fonction est utilisée uniquement pour l'appairage du produit.
Available Countries:
|
|
|
|
|
|
|
Status Feedback Available:
- Yes
Alexa Voice Control:
- Yes

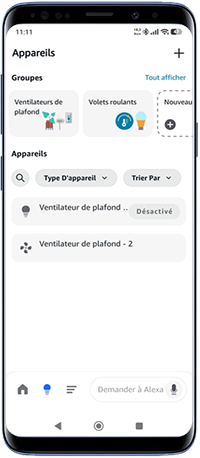

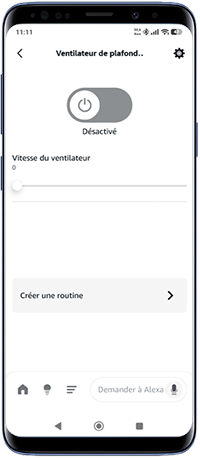

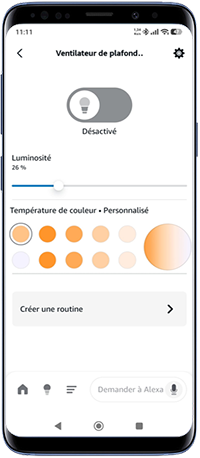

| Home Screen | Control Screen | |
* The fan is split into two separate devices in Alexa: one light device and one fan device. We recommend renaming each device in Alexa to ensure optimal control.
* The light device simultaneously controls Light A and Light B. To control them individually, you must use scenarios.
Google Home Voice Control:
- Yes

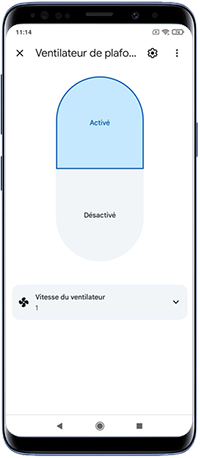

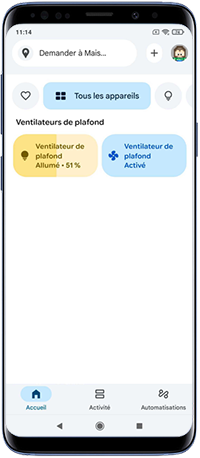

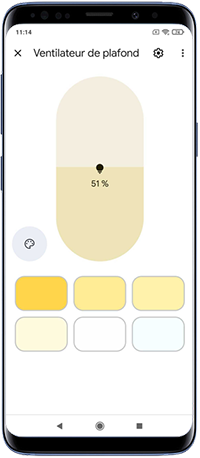

| Home Screen | Control Screen | |
* The fan is split into two separate devices in Google Home: one light device and one fan device. We recommend renaming each device in Google Home to ensure optimal control.
* The light device simultaneously controls Light A and Light B. To control them individually, you must use scenarios.

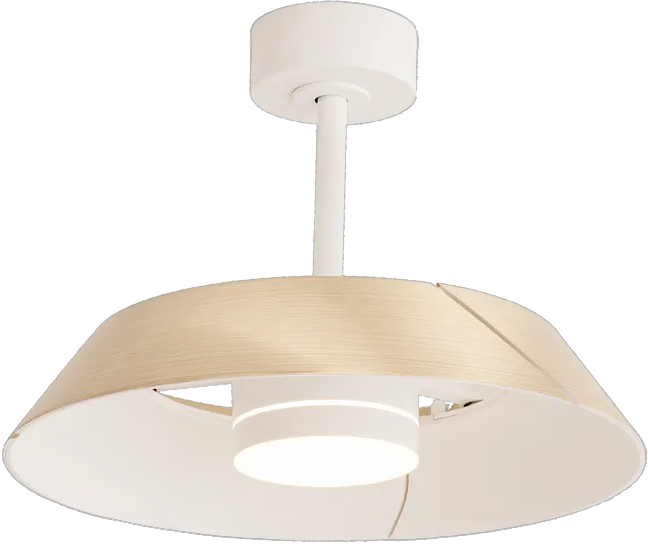

Technical Description:
- Type: Connected Fan
- Usage Type: Indoor.
- Requires Enki Hub: No
- Status Feedback: Yes
- Radio Protocol: Wi-Fi
- Radio Frequency: 2.4 GHz
- Pairing via Enki app.
- Weight: 6.1 kg
- Protection Rating: IP20 (The white model is also available in IP44)
- Protection Class 1: Electrical device with mandatory grounding
- Power Supply: Mains.
- Structure Material: Iron

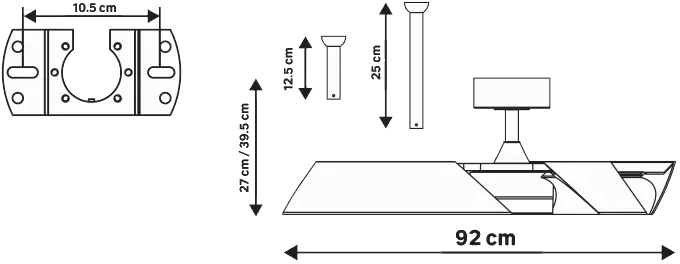

- Height: 39.5 cm
-
Height Adjustable: Yes
Two tubes provided: 12.5 / 25 cm
- Available Colors:
| Wood (Beige) | White |
| 𖣘 Fan: 𖣘 | 💡Light:💡 |
|
|
|
🎛 Remote Control: 🎛
|
Pour faire l'appairage de l'objet, votre réseau Wi-Fi doit être configuré en WPA2 sur la fréquence 2,4 GHz.
Si votre réseau Wi-Fi 2,4 GHz est mixé avec les fréquences 5 GHz, 6 GHz ou 7 GHz, il est impératif de dissocier les bandes et d’attribuer un SSID (nom de réseau Wi-Fi) distinct à chaque fréquence.
How to Assemble and Mount the Fan:
Product Features in the ENKI App:
| Device Feature | Properties | Scenario Integration | ||
| Actions | Triggers | Conditions | ||
|
Light: Turn On / Off |
Global lighting "ON" - "OFF" function | ✔ | ✔ | ✔ |
|
Light A: Turn On / Off |
Lighting A "ON" - "OFF" function | ✔ | ✔ | ✔ |
|
Light B: Turn On / Off |
Lighting B "ON" - "OFF" function | ✔ | ✔ | ✔ |
|
Light: Change Brightness |
White temperature: From 2750K to 6500K (2750K / 3500K / 4000K / 5000K / 6500K) |
✔ | ✘ | ✘ |
|
Light: Change White Temperature |
Min: 0% / Max: 100% / Step: 1% | ✔ | ✘ | ✘ |
|
Fan: Turn On / Off |
Fan "ON" - "OFF" function | ✔ | ✔ | ✔ |
|
Fan: Change Ventilation Mode |
Manual / Breeze | ✔ | ✘ | ✘ |
|
Fan: Change Fan Speed |
Min: 0 / Max: 6 / Step: 1 | ✔ | ✘ | ✘ |
| Scheduling |
Set a start time and device state Set an end time and device state (optional) Choose execution days |
✘ | ✘ | ✘ |
|
Timer: Turn On / Off in... |
Set a temporary time during the day to turn the device OFF or ON. (Light or fan.) | ✘ | ✘ | ✘ |
| Direction of Rotation | Summer / Winter | ✘ | ✘ | ✘ |
| Change Wi-Fi Network | Change network connection without deleting the device | ✘ | ✘ | ✘ |
| Perform Available Update | Update available via OTA | ✘ | ✘ | ✘ |
| Retrieve Firmware Version | Retrieve and display the current firmware version of the device | ✘ | ✘ | ✘ |

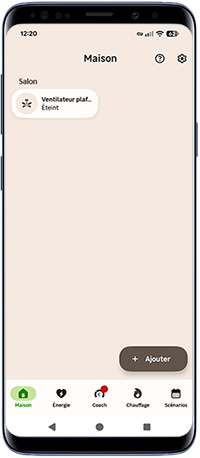

Home Screen: | |

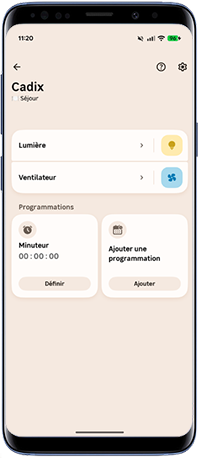

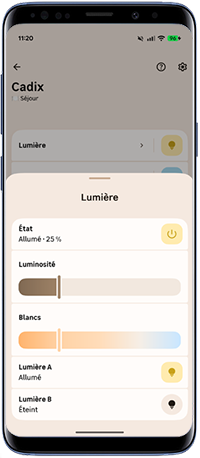

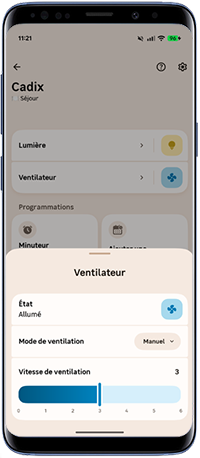

Control Page: | ||

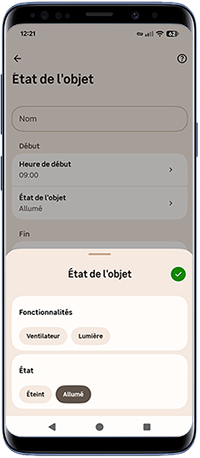

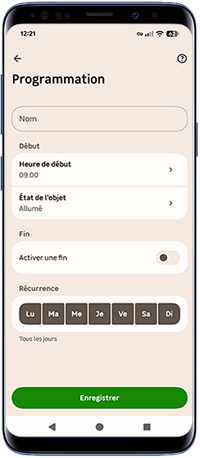

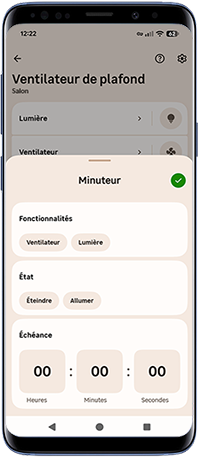

| Control Page - Scheduling: | Control Page - Timer: | |

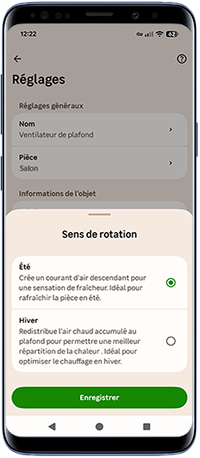

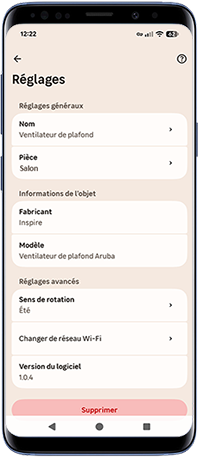

| Settings: | |

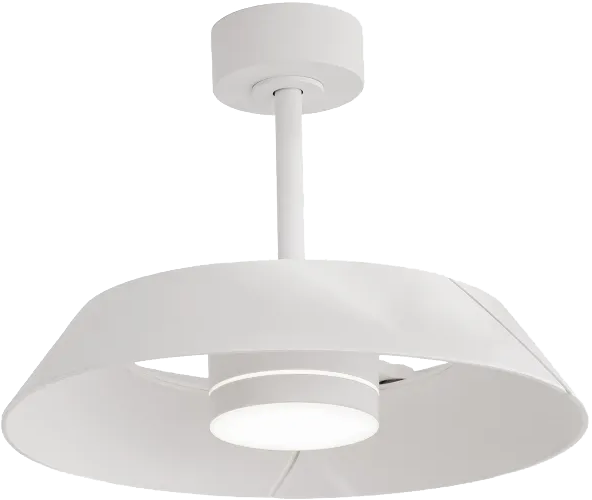

Product View:

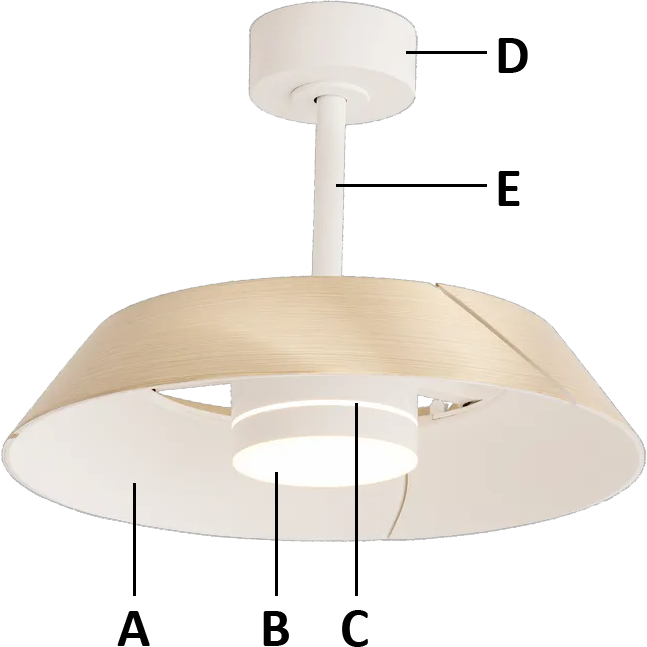

| A | Fan Blades | C | Light Ring (Light B) | E | Suspension Tube |
| B | LED Light (Light A) | D | Mounting Cover |

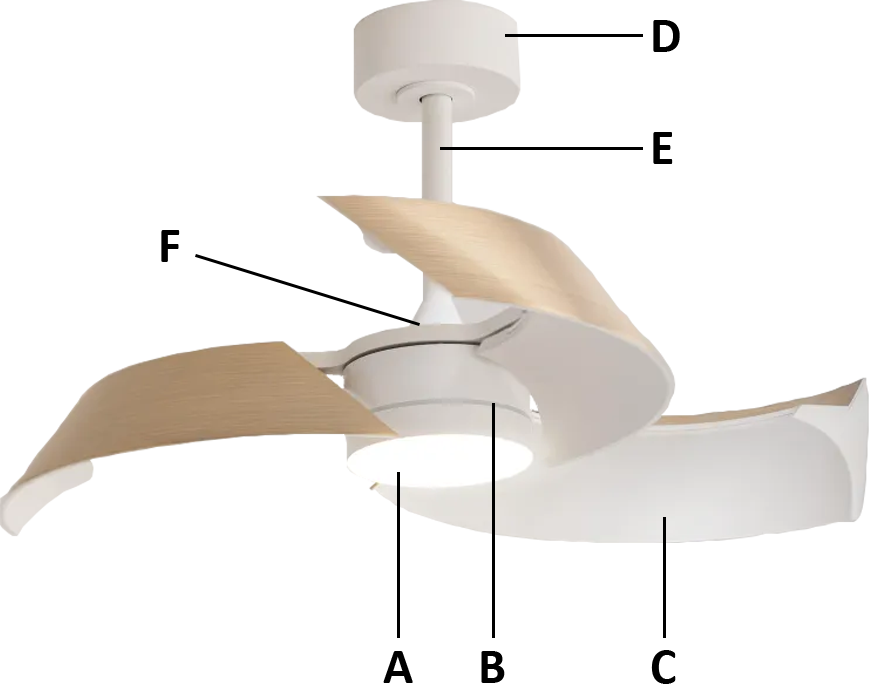

| A | LED Light (Light A) | C | Fan Blades | E | Suspension Tube |
| B | Light Ring (Light B) | D | Mounting Cover | F | Mounting Base |

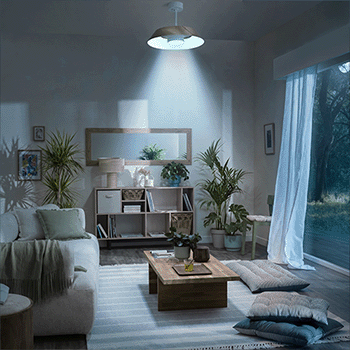

⚠️ The light ring (Light B) remains off during blade rotation to avoid a stroboscopic effect. ⚠️

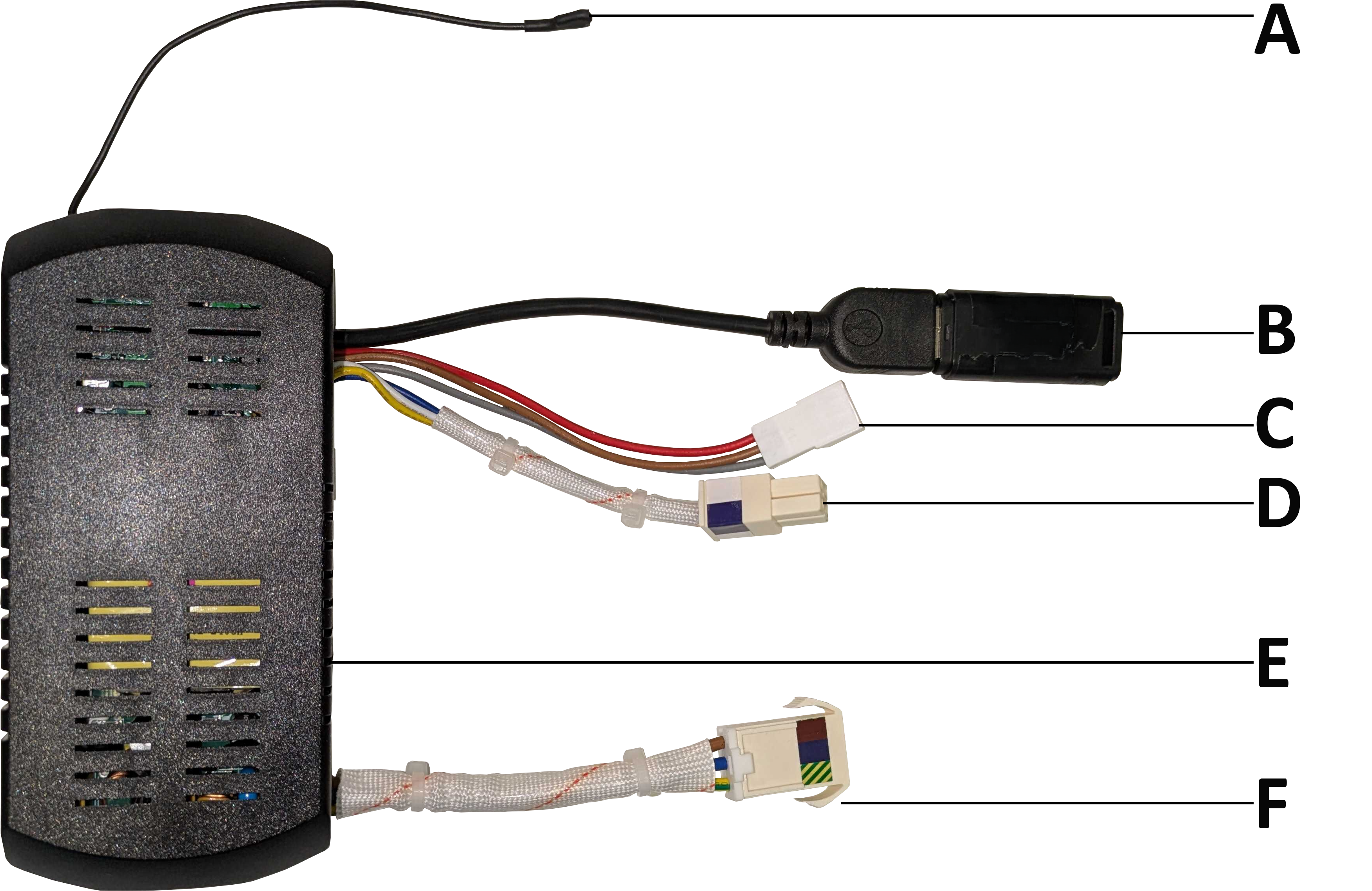

| A | Antenna | C | Motor Connection | E | Control Module |
| B | Wi-Fi USB Key | D | Light Connection | F | Power Supply Connection to Control Module |

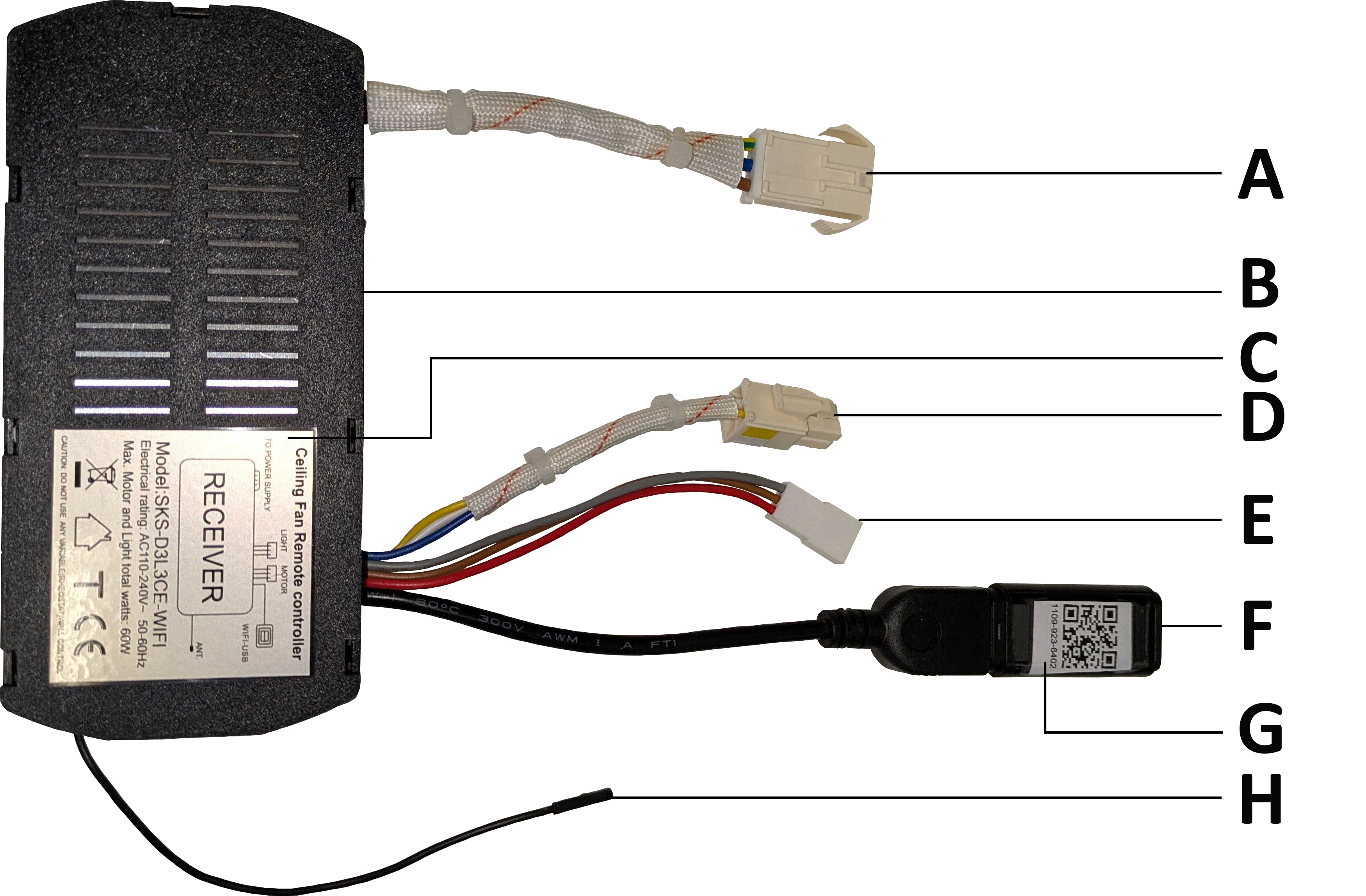

| A | Power Supply Connection to Control Module | D | Light Connection | G | QR Code for Pairing Recognition in the Enki App |
| B | Control Module | E | Motor Connection | H | Antenna |
| C | Control Module Nameplate | F | Wi-Fi USB Key |

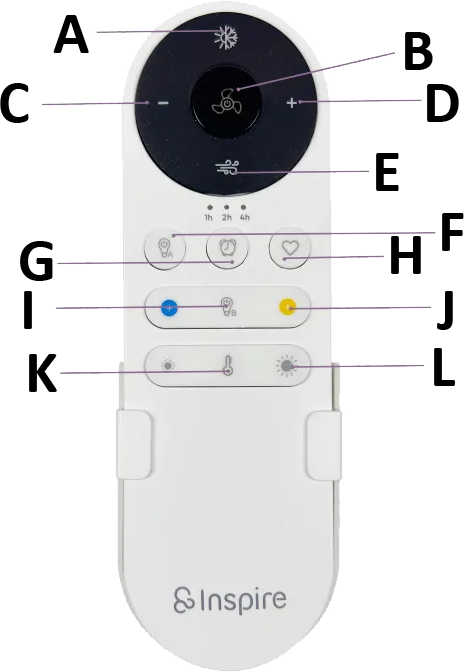

| A | Summer / Winter Mode | E | Natural Breeze Mode | I | Light B |
| B | Turn Fan On / Off | F | Light A | J | Color Temperature (6500K to 2700K) |
| C | Decrease Fan Speed | G | Timer 1h / 2h / 4h | K | Temperature Sensor between 22°C and 24°C and automatic fan activation |
| D | Increase Fan Speed | H | Program Memory (3 sec) and activation of favorite program | L | Light Intensity |

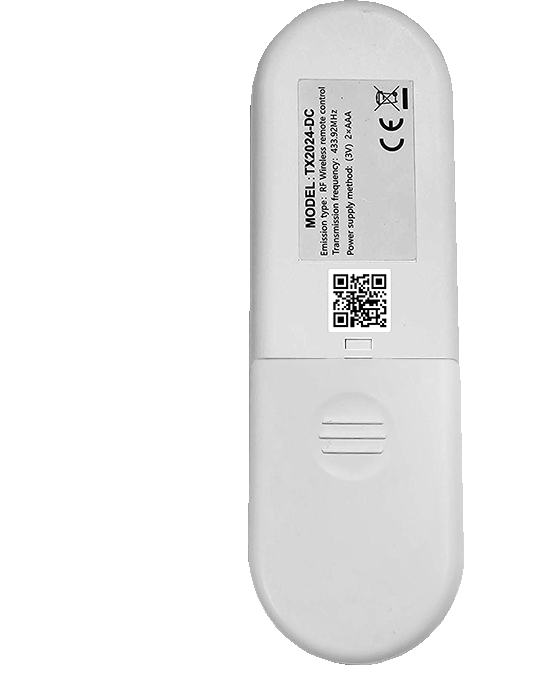

| A | Remote Control | C | QR Code for Pairing Recognition in the Enki App | E | Battery Cover Lock Tab |
| B | Nameplate | D | Battery Cover | F | Battery Compartment (2x LR03 / AAA) |

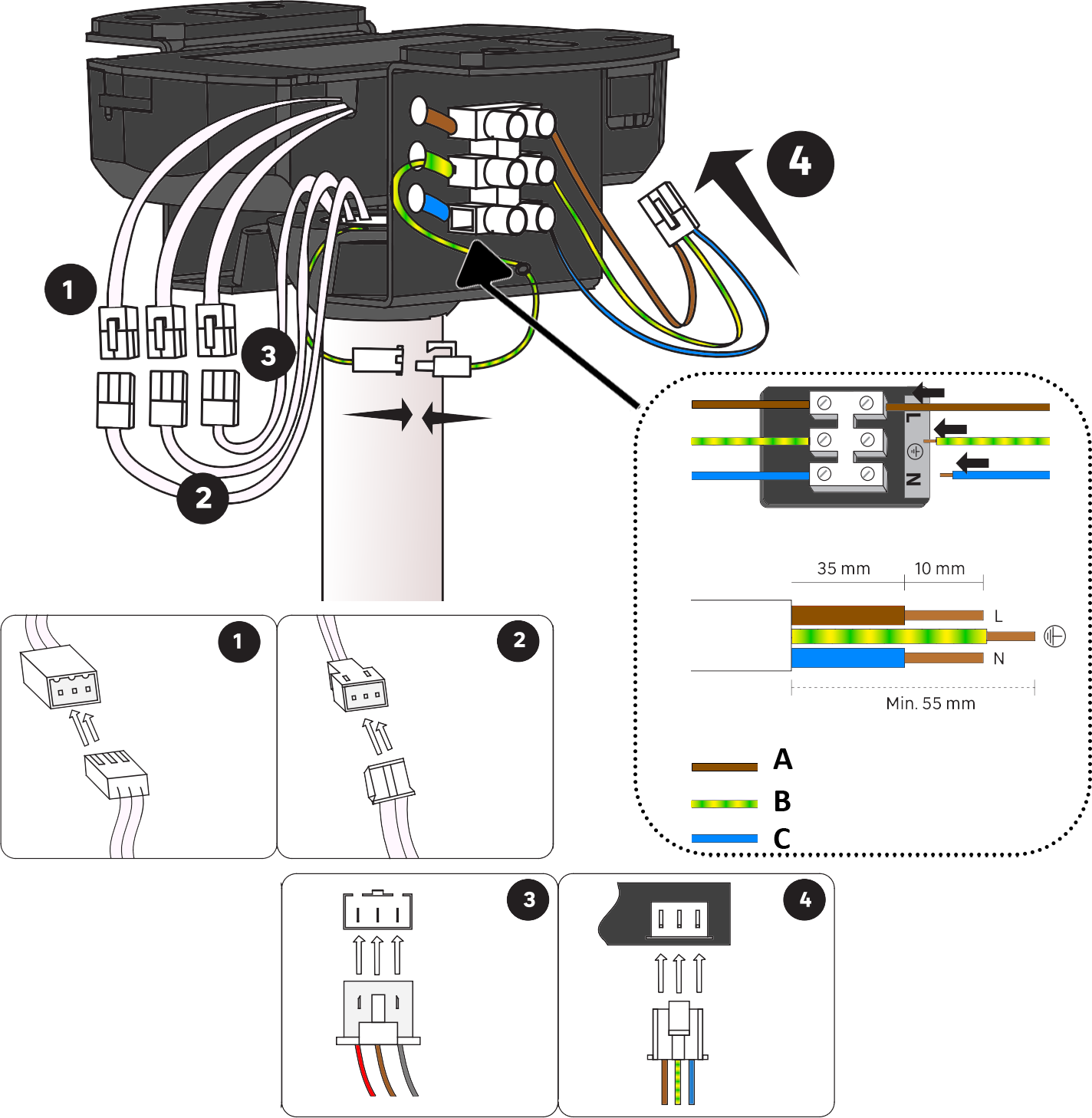

| A | Brown Wire: Live | B | Yellow/Green Wire: Ground | C | Blue Wire: Neutral |
What Does the LED Status of My Device Mean:
| Device Listening Mode | Connecting to Network after Manual Connection Request |
| Press and hold the light 💡 and favorite ♥️ buttons simultaneously. | During pairing or network reconnection process |
| The fan emits 3 beeps 🔊 | The fan light 💡 changes to warm white |
How Does... My Device Work?
Useful Technical Information:
How to Reset My Device?
|
A Little Tip Before Handling:
|

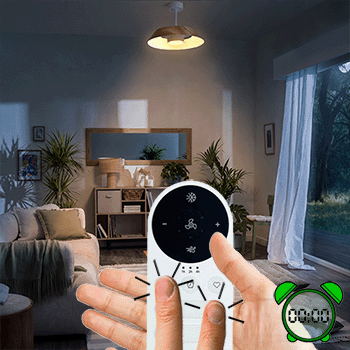

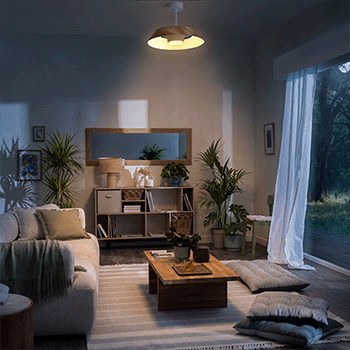

| Perform a Reset of My Connected Device | |
| # Please have the fan remote control nearby, and simultaneously press the light button 💡 and warm white temperature button + | |
| Have the remote control ready | Press and hold the light button 💡 and warm white temperature button + |
| # Hold these two buttons for five seconds. The light will switch to cool white to confirm the reset of your fan. | |
| Hold these two buttons for 5 seconds | The light changes to cool white. The reset was successful. |
