General information
Installation and usage requirements:
- Enki app*
* Enki app requirements: Internet access and a phone with a minimum operating system: Android: 7 / iOS: 16.4
Communication protocol:
• Wi-Fi • Bluetooth*
* Bluetooth: This function is used only to pair the product.
Available countries:
• France • Spain • Italy • Portugal • Poland • Greece • Romania
Product features in the ENKI app
Compatible sections
| Status feedback available |
Eligible My Security |
Eligible Heating |
Eligible for |
Voice control | |
| Alexa | |||||
| ✔ | ✘ | ✘ | ✘ | ✔ | ✔ |
Object features
| Object feature | Properties | Scenario integration | ||
| Actions | Triggers | Conditions | ||
|
Light: Turn on / Turn off |
Lighting "ON" - "OFF" function | ✔ | ✔ | ✔ |
|
Light: Change brightness level |
White temperature: From 2750K to 6500K (2750K / 3500K / 4000K / 5000K / 6500K) |
✔ | ✘ | ✘ |
|
Light: Change white temperature |
Min: 0% / Max: 100% / Increment: 1% | ✔ | ✘ | ✘ |
|
Fan: Turn on / Turn off |
Fan "ON" - "OFF" function | ✔ | ✔ | ✔ |
|
Fan: Change fan mode |
Manual / Breeze | ✔ | ✘ | ✘ |
|
Fan: Change fan speed |
Min: 0 / Max: 6 / Increment: 1 | ✔ | ✘ | ✘ |
| Scheduling |
Set a start time and the object status Set an end time and the object status (optional) Choose the days of execution |
✘ | ✘ | ✘ |
|
Timer: Turn on / Turn off in... |
Set a temporary time during the day to turn the object "OFF" or "ON" (light or fan). | ✘ | ✘ | ✘ |
| Rotation direction | Summer / Winter | ✘ | ✘ | ✘ |
| Change Wi-Fi network | Change the network connection without deleting the object | ✘ | ✘ | ✘ |
| Perform available updates | Update available via OTA | ✘ | ✘ | ✘ |
| Retrieve firmware version | Retrieve and display the object's current firmware version | ✘ | ✘ | ✘ |
Visuals in the app

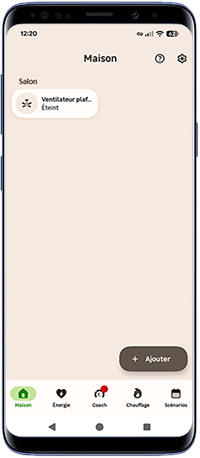

Home
|
|
|

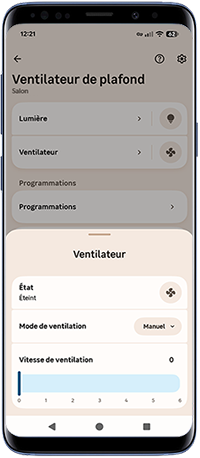

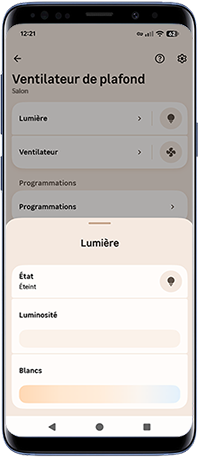

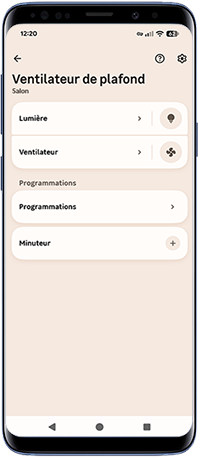

Control
|
|
|
|

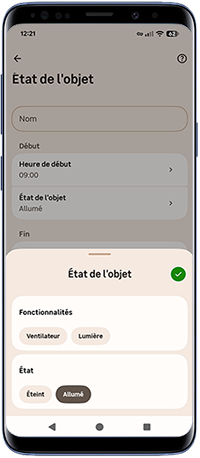

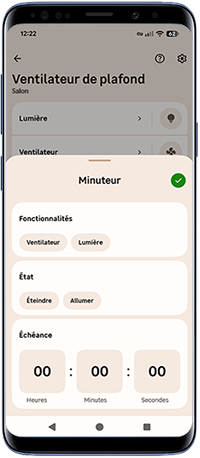

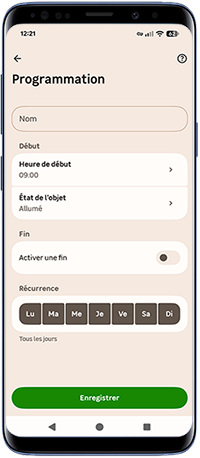

| Control page - Scheduling: | Control page - Timer: | |
|
|
|
|

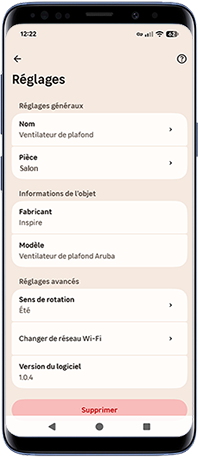

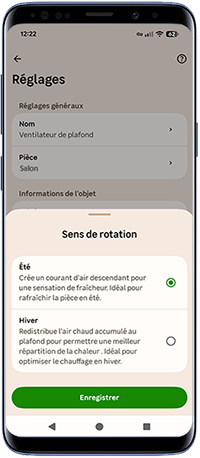

Settings
|
|
|
Alexa app

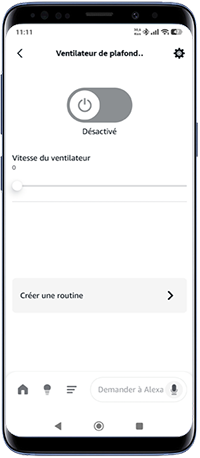

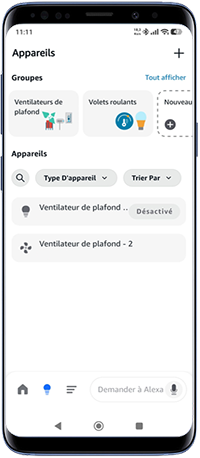

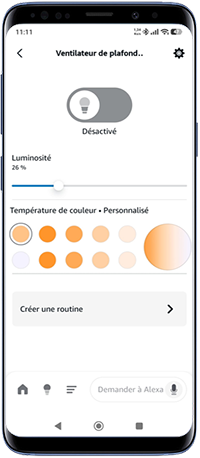

| Alexa home screen | Alexa control screen | |
|
|
|
|
| * The fan is divided into two separate objects in Alexa: a light object and a fan object. We recommend renaming each of these objects in Alexa to ensure optimal control. | ||
Google app

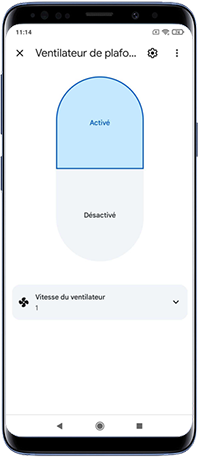

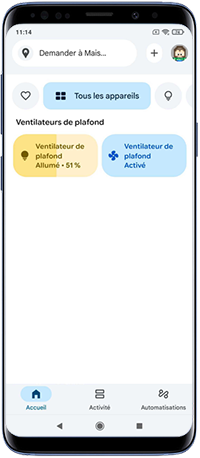

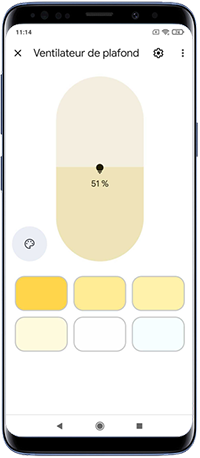

| Google home screen | Google control screen | |
|
|
|
|
| * The fan is divided into two separate objects in Google Home: a light object and a fan object. We recommend renaming each of these objects in Google Home to ensure optimal control. | ||
How does my object work?
Practical tips
What does the LED status of my object mean?
| Putting the object into listening mode | Connecting to the network following a manual connection request |
| Press and hold the light 💡 and favorite ♥️ buttons simultaneously. | During the pairing or network reconnection procedure |
| The fan emits 3 beeps 🔊 | The fan light 💡 changes to warm white |

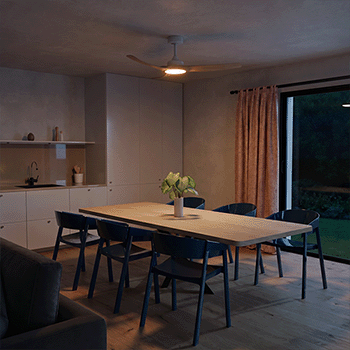

How do I reset my object?
|
A quick tip before you begin:
|
Step by step
| Reset my connected object | |
| # Get the fan remote control and stay nearby, then press the light 💡 and warm white temperature buttons simultaneously + | |
| Get the remote control | Press the light 💡 and warm white temperature + |
| # Press and hold both buttons for five seconds. The light will change to cool white to confirm that your fan has been reset. | |
| Press and hold these two buttons for 5 seconds | The light changes to cool white. The reset was successful. |
Complete procedure
Product overview

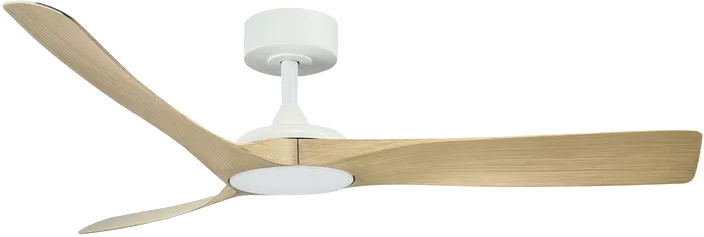

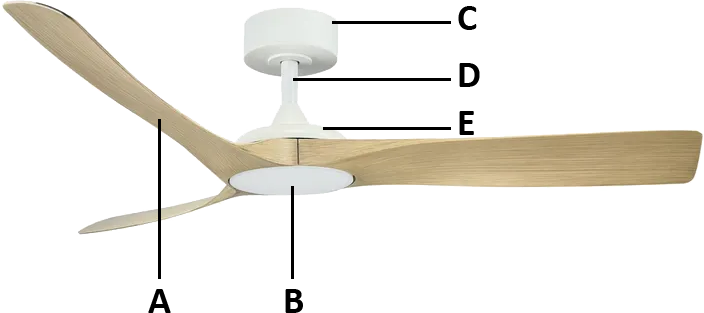

Fan
| A | Fan blades | C | Mounting cover | E | Mounting base |
| B | LED light | D | Suspension tube |

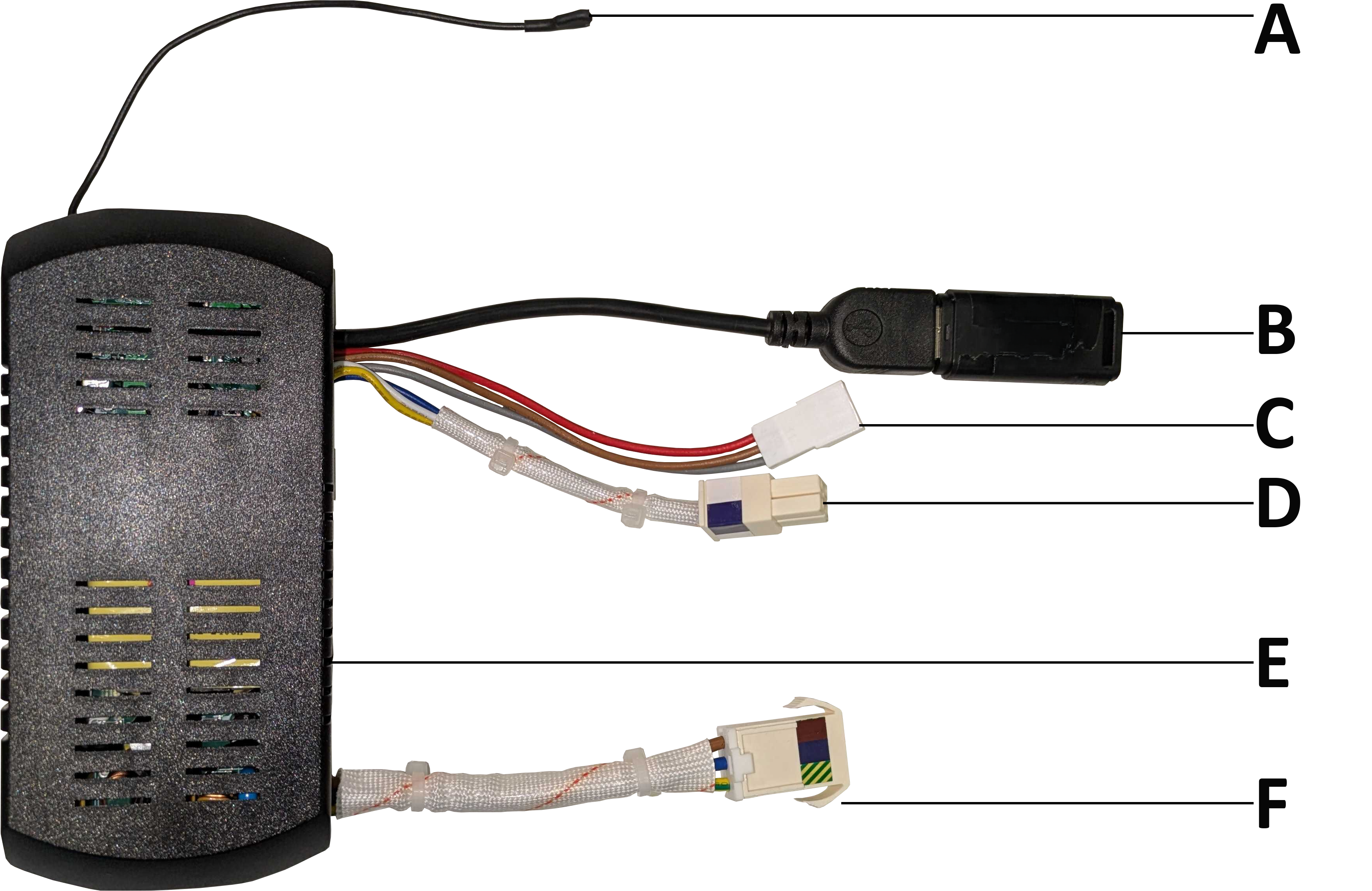

Module
| A | Antenna | C | Motor connection | E | Control module |
| B | Wi-Fi USB dongle | D | Light connection | F | Connection to the control module power supply |

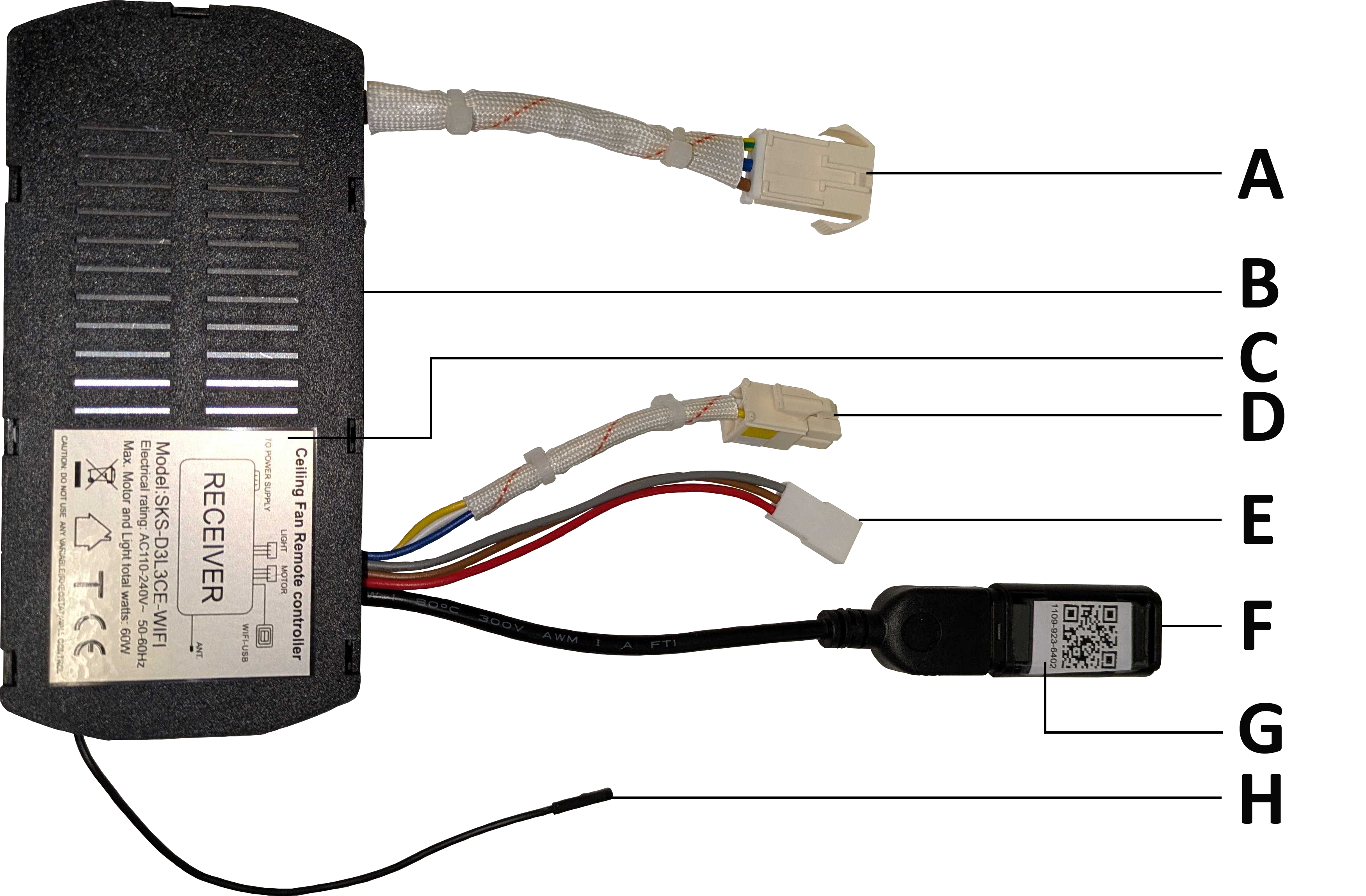

| A | Connection to the control module power supply | D | Light connection | G | Pairing recognition QR code in the Enki app |
| B | Control module | E | Motor connection | H | Antenna |
| C | Control module nameplate | F | Wi-Fi USB dongle |

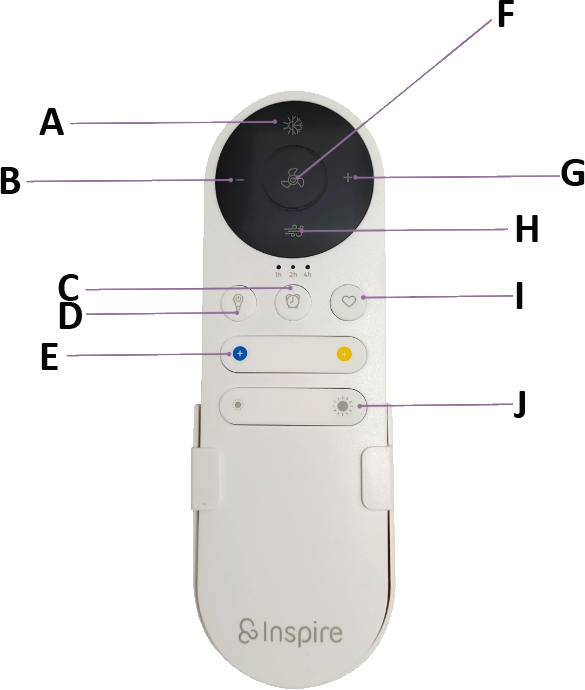

Remote control
| A | Summer / winter mode | E | Light temperature adjustment (6500K to 2700K). 5 settings | I | Save the setting (3 sec) and activate the preferred setting |
| B | Decrease speed (6 modes) | F | Turn on / Turn off | J | Adjust light intensity from 15% to 100% |
| C | 1 hr / 2 hr / 4 hr timer | G | Increase speed (6 modes) | ||
| D | Turn on the light | H | Natural breeze mode |

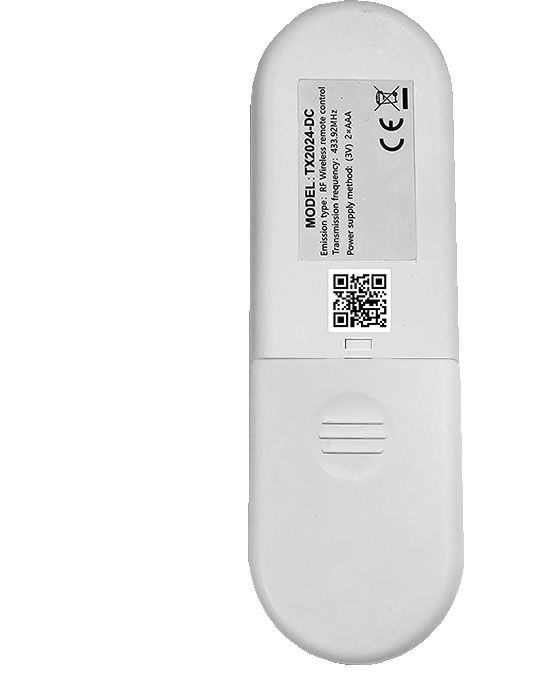

| A | Remote control | C | Pairing recognition QR code in the Enki app | E | Battery cover mounting notch |
| B | Nameplate | D | Battery cover | F | Battery compartment (2x LR03 / AAA) |
Diagrams

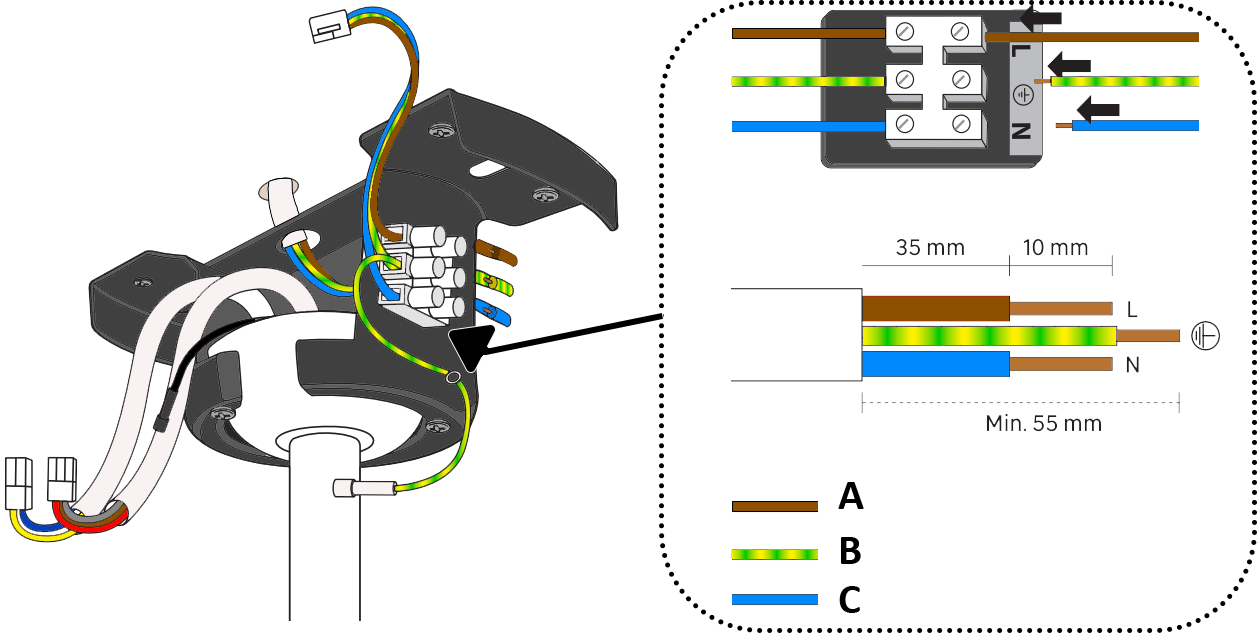

| A | Brown wire: Live | B | Yellow/green wire: Ground | C | Blue wire: Neutral |

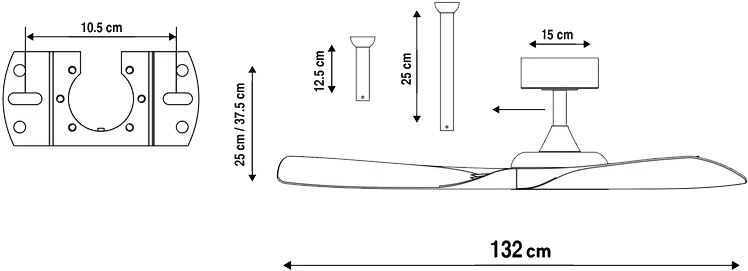

Dimensions
How to assemble and mount the fan
Technical specifications
General
- Type: Connected fan
- Usage type: Indoor.
- Requires the Enki hub: No
- Status feedback: Yes
- Radio protocol: Wi-Fi
- Radio frequency: 2.4 GHz
- Pairing with the Enki app.
- Weight: 5 kg
- Protection rating: IP20 (the white model is also available in IP44)
- Protection class 1: electrical device with mandatory grounding
- Power supply: Mains.
- Frame material: Steel
- Height: 37.5 cm
-
Height adjustable: Yes
Two tubes included: 12.5 / 25 cm
Fans
| Wood (Beige) |
| 𖣘 Fan: 𖣘 | 💡Light:💡 |
|
|
Remote controls
|
🎛 Remote control: 🎛
|
To pair the object, your Wi-Fi network must use WPA2 on 2.4 GHz. If the 2.4 GHz network is combined with 5, 6, or 7 GHz, separate the bands and assign a distinct SSID to each frequency.
