General Information:
Installation and Usage Requirements:
- Enki App*
* Prérequis pour l'application Enki : Accès internet et un téléphone avec système d'exploitation minimum : Android: 7 / iOS: 16.4
Communication Protocol:
- Wi-Fi
- Bluetooth
* Bluetooth : La fonction est utilisée uniquement pour l'appairage du produit.
Available Countries:
|
|
|
|
|
|
|
Status Feedback Available:
- Yes
Alexa Voice Control:
- Yes

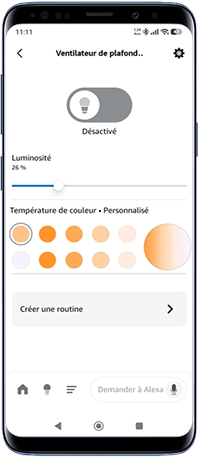

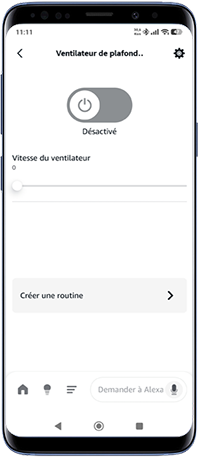

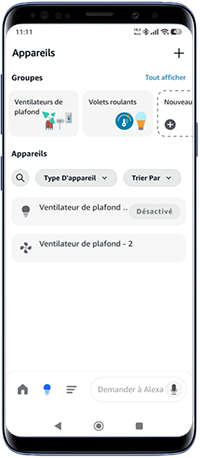

| Ecran d'accueil | Ecran de pilotage | |
* Le ventilateur est réparti en deux objets distincts dans Alexa : un objet lumière et un objet ventilateur. Nous vous invitons à renommer chacun de ces objets dans Alexa afin d'assurer un contrôle optimal.
Google Home Voice Control:
- Yes

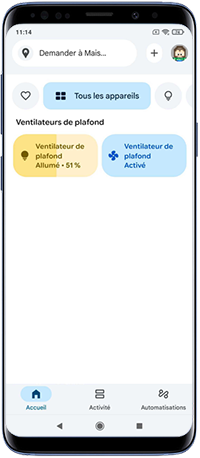

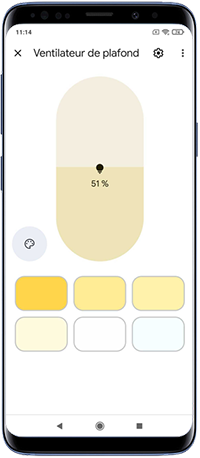

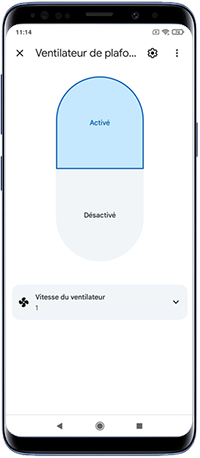

| Ecran d'accueil | Ecran de pilotage | |
* Le ventilateur est réparti en deux objets distincts dans Google Home : un objet lumière et un objet ventilateur. Nous vous invitons à renommer chacun de ces objets dans Google Home afin d'assurer un contrôle optimal.
Technical Description:
- Type: Connected Fan
- Usage Type: Indoor.
- Requires Enki Hub: No
- Status Feedback: Yes
- Radio Protocol: Wi-Fi
- Radio Frequency: 2.4 GHz
- Pairing via Enki App.
- Weight: 4.9 kg
- Protection Rating: IP20 (The white model is also available in IP44)
- Protection Class 1: Electrical device with mandatory grounding
- Power Supply: Mains.
- Frame Material: Steel

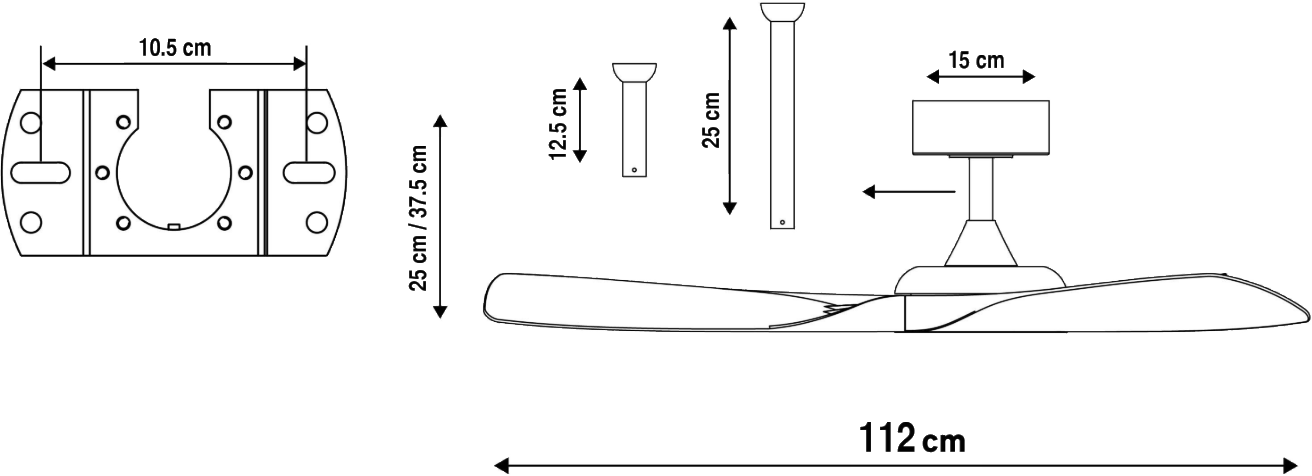

- Height: 37.5 cm
-
Height Adjustable: Yes
Two rods provided: 12.5 / 25 cm

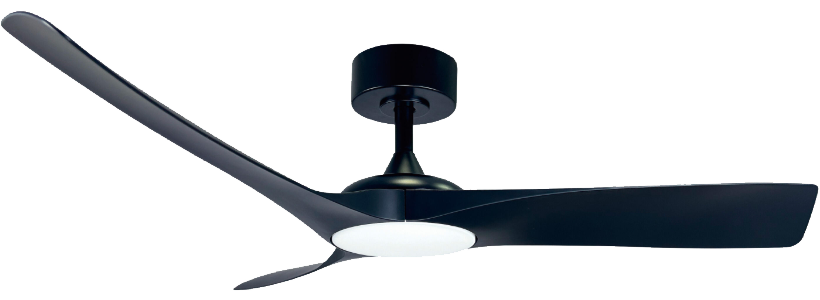

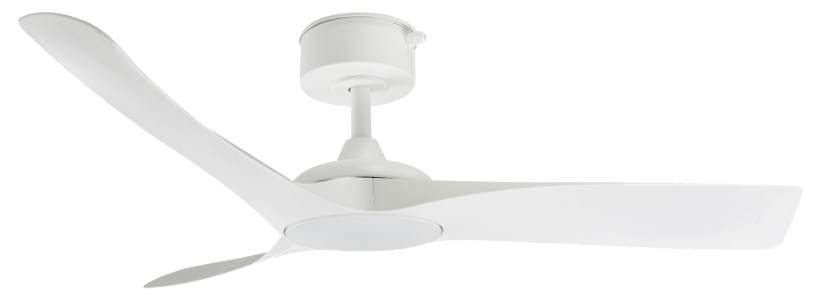

- Available Colors:
| Wood (Beige) | Black | White |
| 𖣘 Fan: 𖣘 | 💡Light:💡 |
|
|
|
🎛 Remote Control: 🎛
|
Pour faire l'appairage de l'objet, votre réseau Wi-Fi doit être configuré en WPA2 sur la fréquence 2,4 GHz.
Si votre réseau Wi-Fi 2,4 GHz est mixé avec les fréquences 5 GHz, 6 GHz ou 7 GHz, il est impératif de dissocier les bandes et d’attribuer un SSID (nom de réseau Wi-Fi) distinct à chaque fréquence.
How to Assemble and Mount the Fan:
Product Functionality in the ENKI App:
| Fonctionnalité de l'objet | Propriétés | Intégration dans un scénario | ||
| Actions | Déclencheurs | Conditions | ||
|
Lumière : Allumer / Eteindre |
Fonction "ON" - "OFF" de l'éclairage | ✔ | ✔ | ✔ |
|
Lumière : Changer la puissance de luminosité |
Température de blanc : De 2750K à 6500K (2750K / 3500K / 4000K / 5000K / 6500K) |
✔ | ✘ | ✘ |
|
Lumière : Changer la température de blanc |
Min : 0% / Max : 100% / Pas : 1% | ✔ | ✘ | ✘ |
|
Ventilateur : Allumer / Eteindre |
Fonction "ON" - "OFF" de la ventilation | ✔ | ✔ | ✔ |
|
Ventilateur : Changer le mode de ventilation |
Manuel / Brise | ✔ | ✘ | ✘ |
|
Ventilateur : Changer la vitesse de ventilation |
Min : 0 / Max : 6 / Pas : 1 | ✔ | ✘ | ✘ |
| Programmation |
Définir une heure de début et l'état de l'objet Définir une heure de fin et l'état de l'objet (facultatif) Choisir les jours d'exécution |
✘ | ✘ | ✘ |
|
Minuteur : Allumer / Eteindre dans... |
Définir un temps temporaire dans la journée pour mettre en "OFF" ou "ON" l'objet. (Lumière ou ventilateur.) | ✘ | ✘ | ✘ |
| Sens de rotation | Eté / Hiver | ✘ | ✘ | ✘ |
| Changer de réseau Wi-Fi | Effectuer un changement de connexion réseau sans supprimer l'objet | ✘ | ✘ | ✘ |
| Effectuer la mises à jour disponible | Mise à jour disponible par OTA | ✘ | ✘ | ✘ |
| Récupérer la version firmware | Récupérer et afficher la version du firmware actuelle de l'objet | ✘ | ✘ | ✘ |

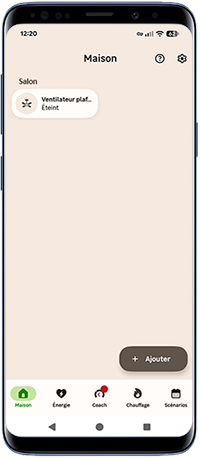

Ecran d'accueil : | |

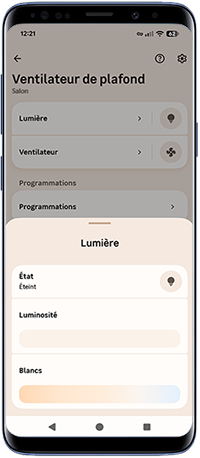

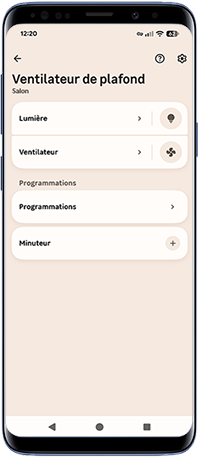

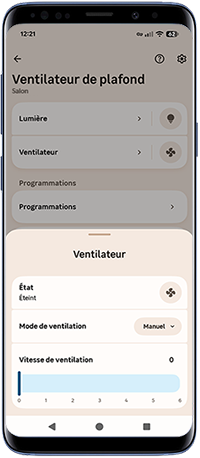

Page de pilotage : | ||

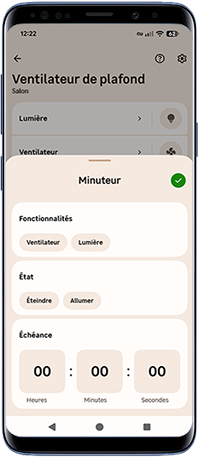

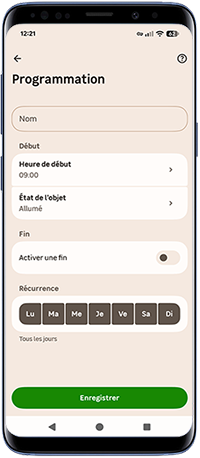

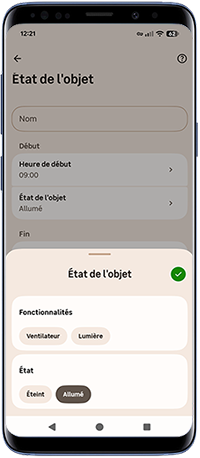

| Page de pilotage - La programmation : | Page de pilotage _- La minuterie : | |

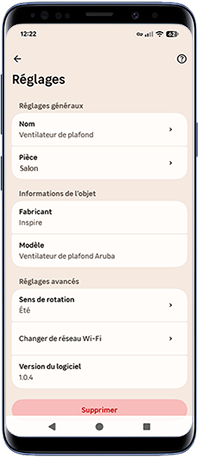

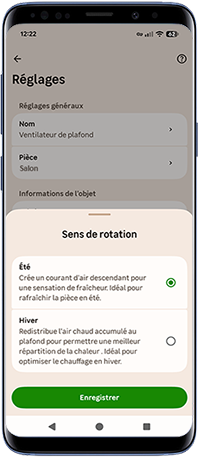

| Les réglages : | |

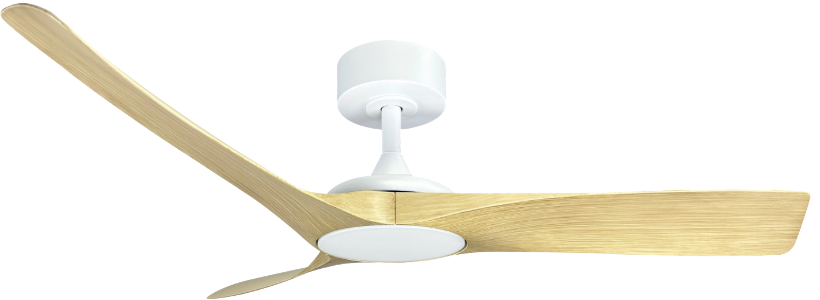

Product Overview:

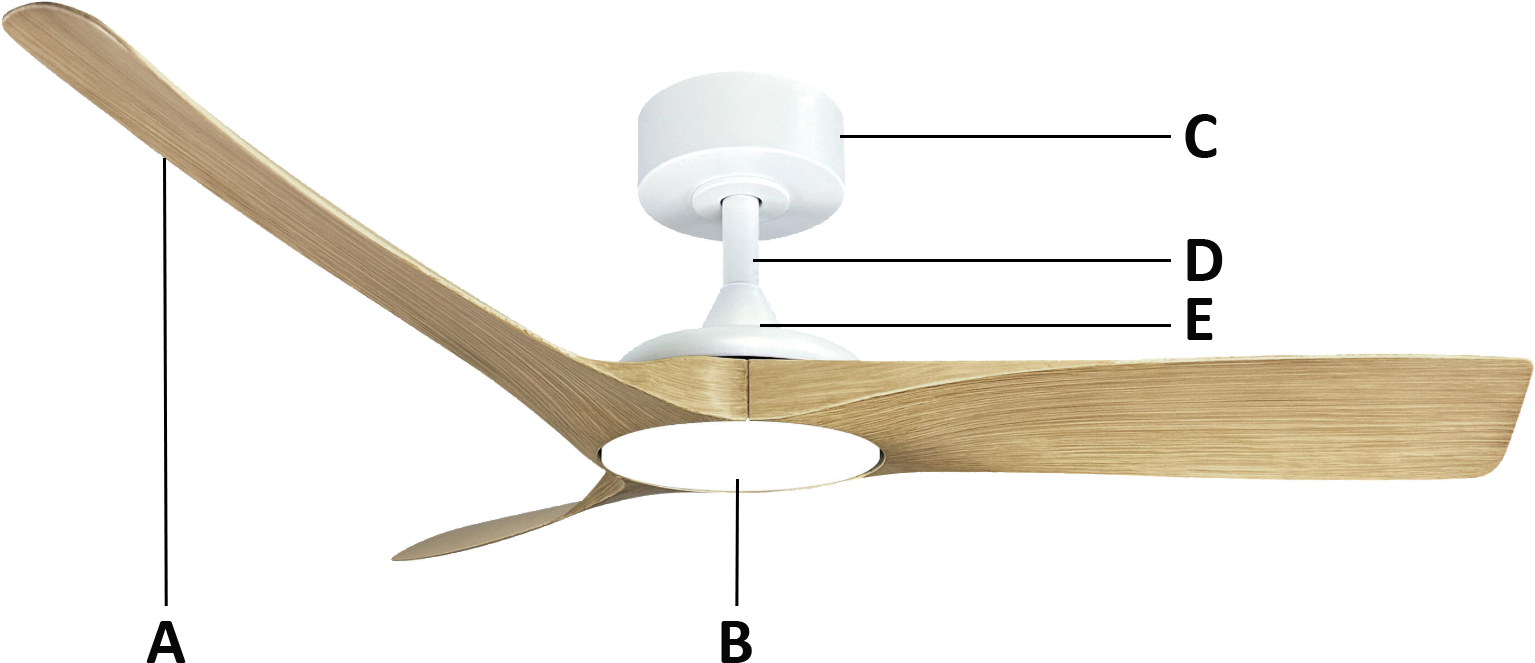

| A | Fan Blades | C | Mounting Cover | E | Mounting Base |
| B | LED Light | D | Suspension Rod |

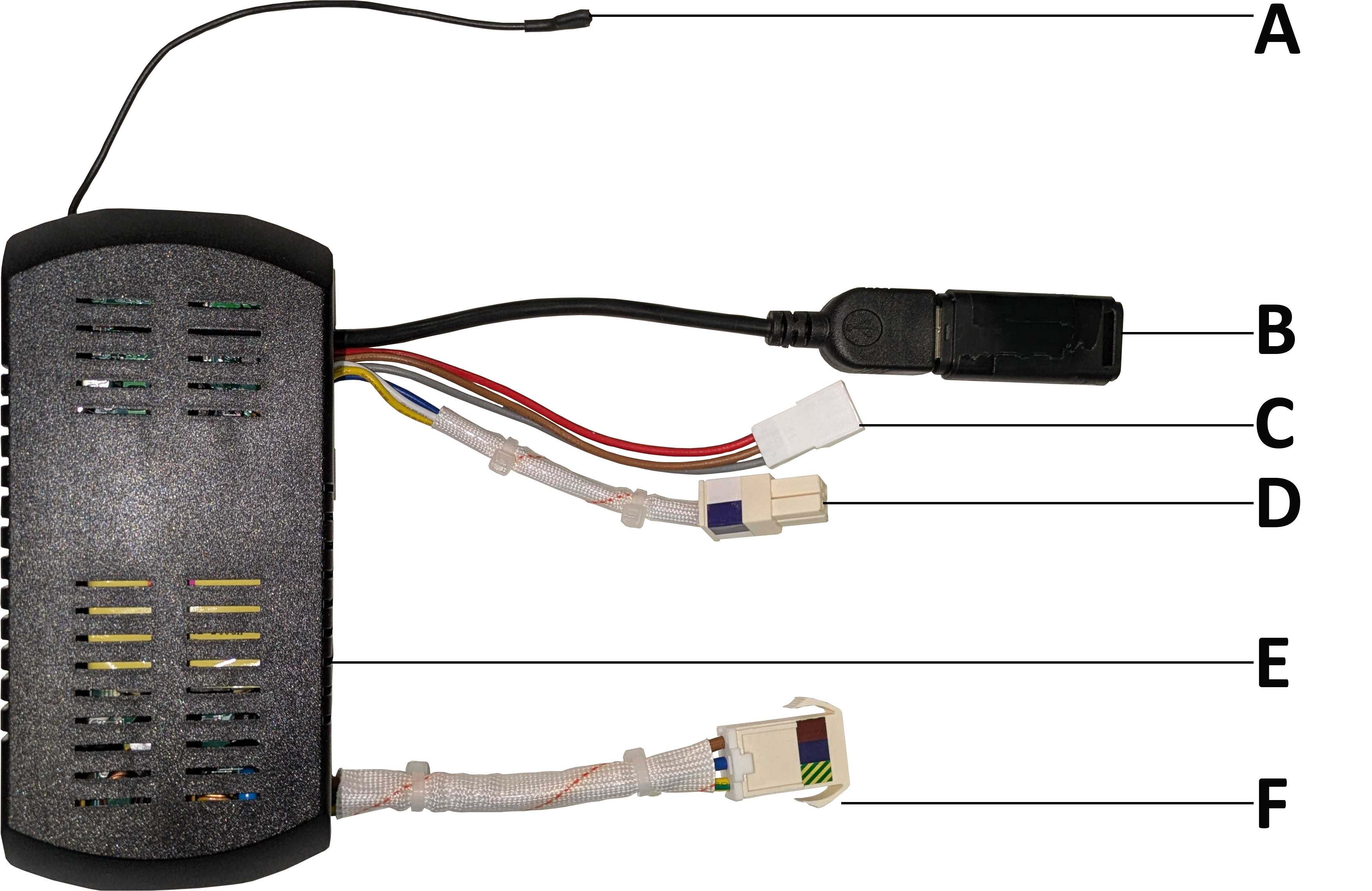

| A | Antenna | C | Motor Connection | E | Control Module |
| B | Wi-Fi USB Key | D | Light Connection | F | Power Connection to Control Module |

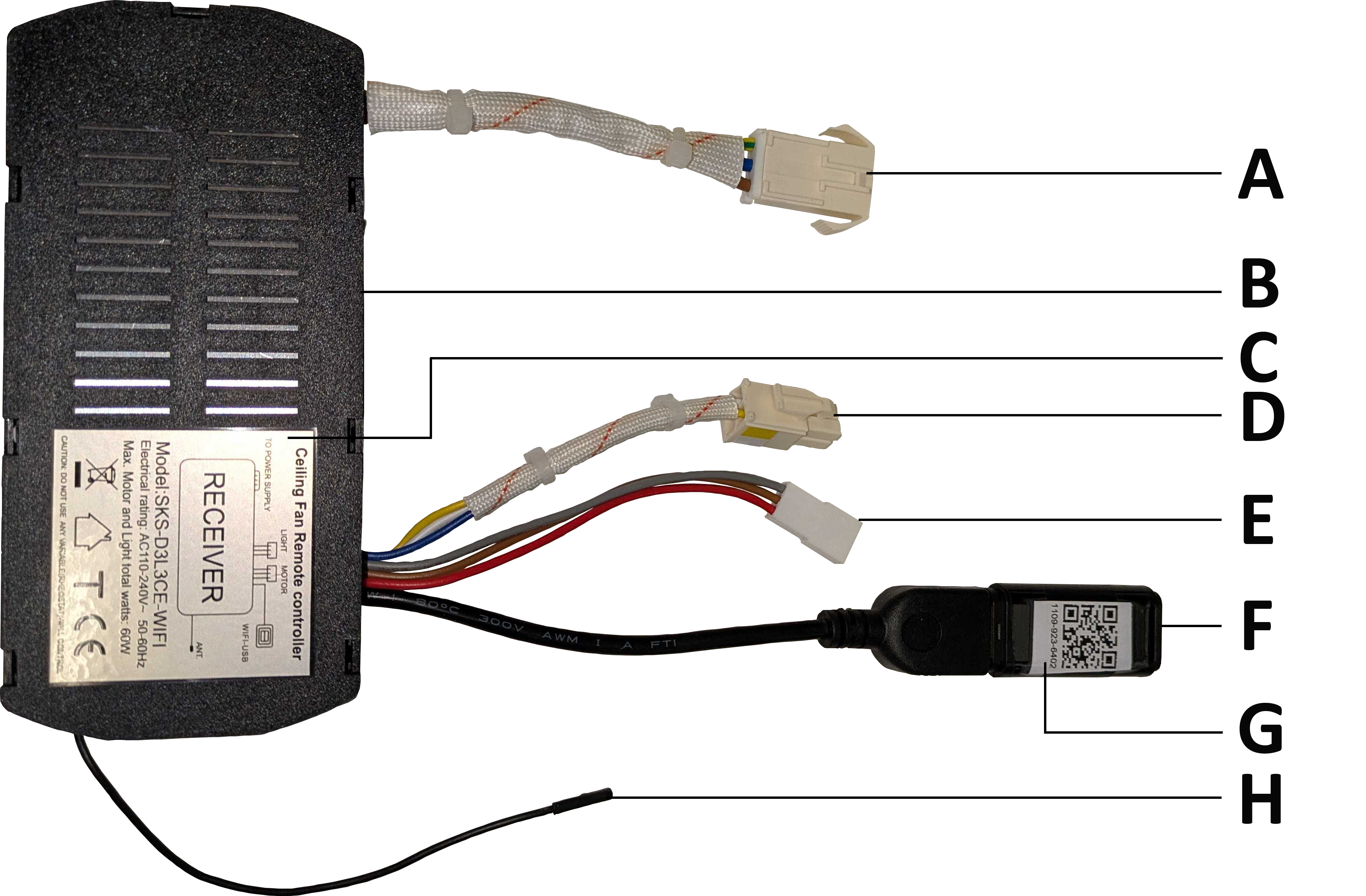

| A | Power Connection to Control Module | D | Light Connection | G | QR Code for Pairing Recognition in the Enki App |
| B | Control Module | E | Motor Connection | H | Antenna |
| C | Control Module Nameplate | F | Wi-Fi USB Key |

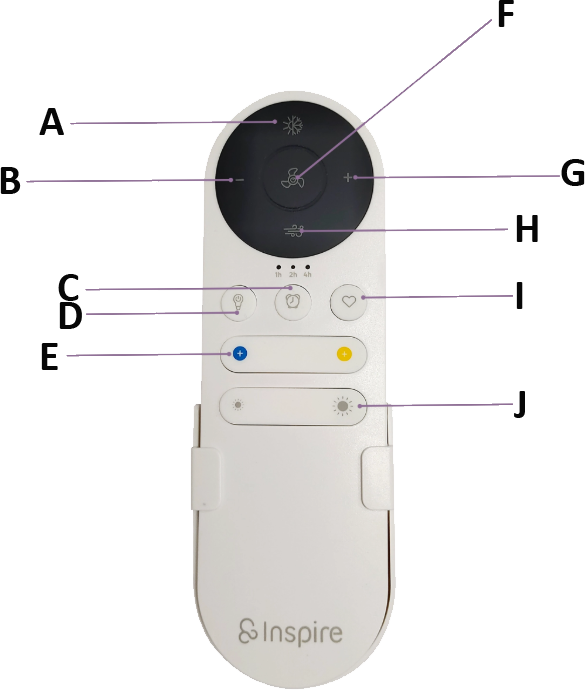

| A | Summer/Winter Mode | E | Light Color Temperature Adjustment (6500K to 2700K). 5 Settings | I | Setting Memory (3 sec) and Activation of Favorite Setting |
| B | Decrease Speed (6 modes) | F | On/Off | J | Light Intensity Adjustment from 15% to 100% |
| C | Timer 1h / 2h / 4h | G | Increase Speed (6 modes) | ||
| D | Light On | H | Natural Breeze Mode |

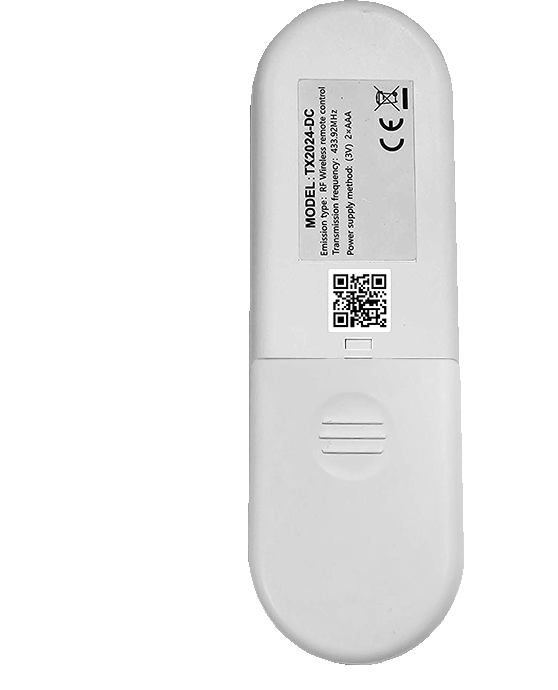

| A | Remote Control | C | QR Code for Pairing Recognition in the Enki App | E | Battery Cover Lock Notch |
| B | Nameplate | D | Battery Cover | F | Battery Compartment (2x LR03 / AAA) |

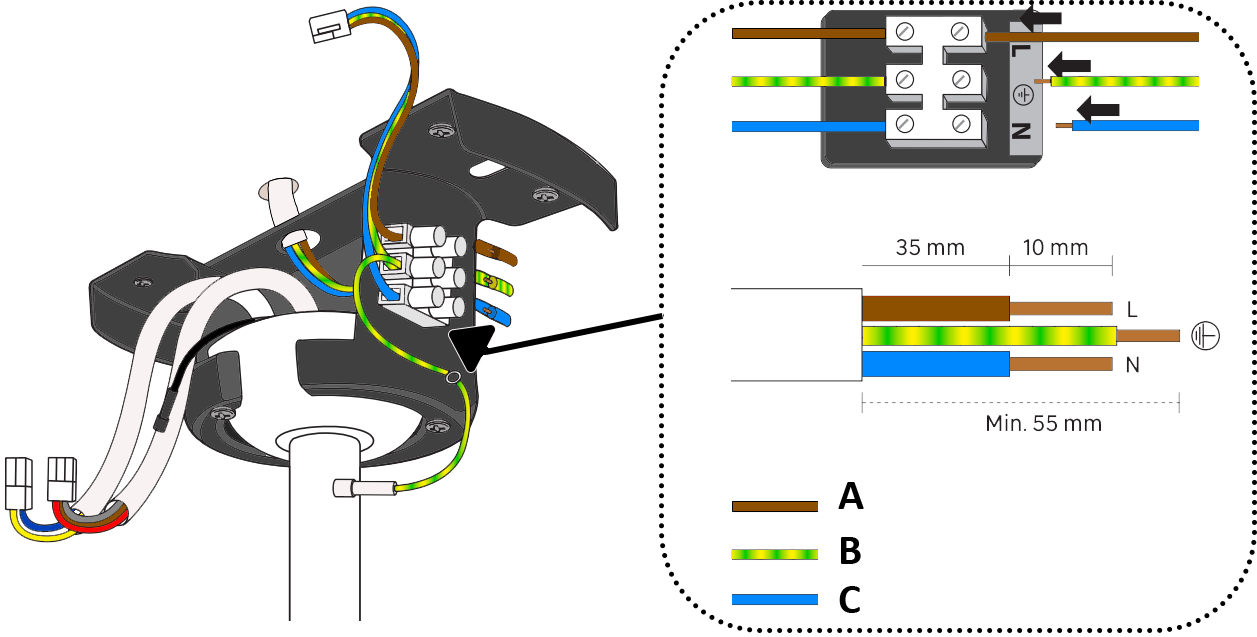

| A | Brown Wire: Live | B | Yellow/Green Wire: Ground | C | Blue Wire: Neutral |
What Does the LED Status of My Device Mean:
| Device Listening Mode | Connecting to Network After Manual Connection Request |
| Press and hold simultaneously the light 💡 and favorite ♥️ buttons. | During pairing or network reconnection process |
| The fan emits 3 beeps 🔊 | The fan light 💡 changes to cool white |
How Does... My Device Work?
Useful Technical Information:
How to Reset My Device?
|
A Little Tip Before Proceeding:
|

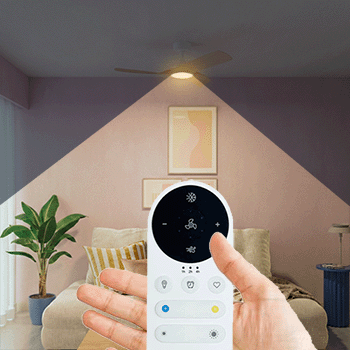

| Resetting My Connected Device | |
| # Please have the fan remote control nearby, and simultaneously press the light button 💡 and warm white temperature + | |
| Have the remote control ready | Press simultaneously the light buttons 💡 and warm white temperature + |
| # Hold the two buttons for five seconds. The light will change to cool white to confirm the reset of your fan. | |
| Hold these two buttons for 5 seconds | The light changes to cool white. The reset has been successfully completed. |
