General Information:
Installation and Usage Requirements:
- Enki App*
* Prérequis pour l'application Enki : Accès internet et un téléphone avec système d'exploitation minimum : Android: 7 / iOS: 16.4
Communication Protocol:
- Wi-Fi
- Bluetooth
* Bluetooth : La fonction est utilisée uniquement pour l'appairage du produit.
Available Countries:
|
|
|
|
|
|
|
Status Feedback Available:
- Yes

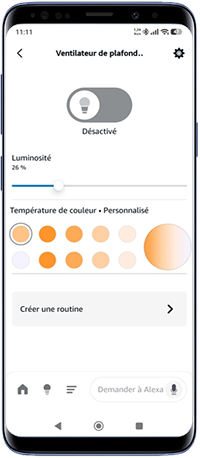

Alexa Voice Control:
- Yes

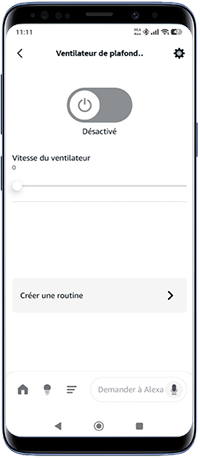

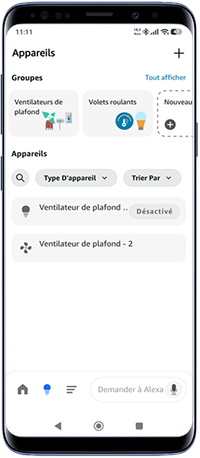

| Ecran d'accueil | Ecran de pilotage | |
* Le ventilateur est réparti en deux objets distincts dans Alexa : un objet lumière et un objet ventilateur. Nous vous invitons à renommer chacun de ces objets dans Alexa afin d'assurer un contrôle optimal.

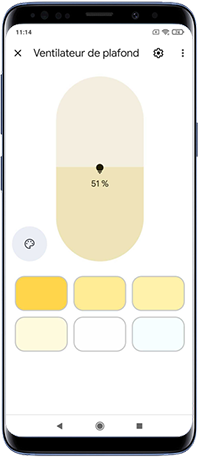

Google Home Voice Control:
- Yes

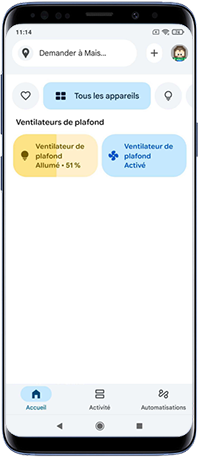

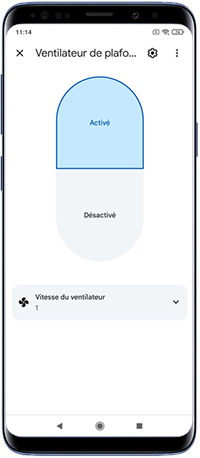

| Ecran d'accueil | Ecran de pilotage | |
* Le ventilateur est réparti en deux objets distincts dans Google Home : un objet lumière et un objet ventilateur. Nous vous invitons à renommer chacun de ces objets dans Google Home afin d'assurer un contrôle optimal.

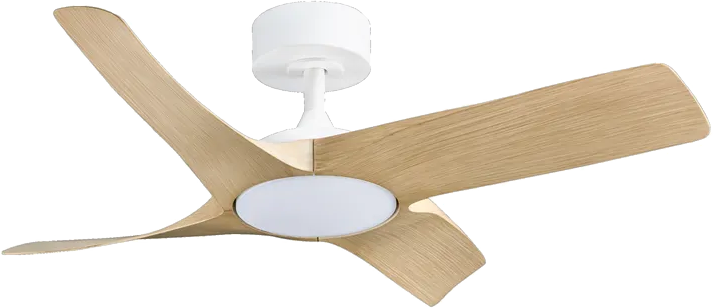

Technical Description:
- Type: Connected fan
- Usage type: Indoor.
- Requires Enki hub: No
- Status feedback: Yes
- Radio protocol: Wi-Fi
- Radio frequency: 2.4 GHz
- Pairing via Enki app.
- Weight: 4.5 kg
- Protection rating: IP20 (The white model is also available in IP44)
- Protection class 1: electrical device with mandatory grounding
- Power supply: Mains.
- Frame material: Steel

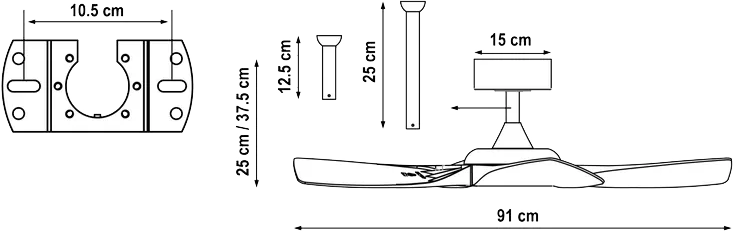

- Height: 37.5 cm
-
Height adjustable: Yes
Two tubes included: 12.5 / 25 cm
- Available colors:

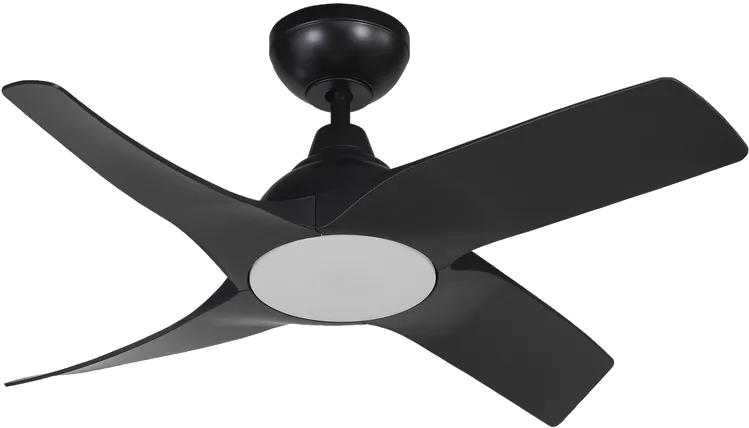

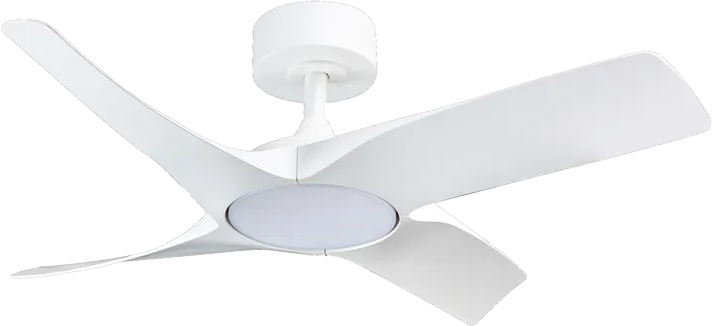

| Wood (Beige) | Black | White |
| 𖣘 Fan: 𖣘 | 💡Light:💡 |
|
|
|
🎛 Remote Control: 🎛
|
Pour faire l'appairage de l'objet, votre réseau Wi-Fi doit être configuré en WPA2 sur la fréquence 2,4 GHz.
Si votre réseau Wi-Fi 2,4 GHz est mixé avec les fréquences 5 GHz, 6 GHz ou 7 GHz, il est impératif de dissocier les bandes et d’attribuer un SSID (nom de réseau Wi-Fi) distinct à chaque fréquence.
How to assemble and mount the fan:
Product functionality in the ENKI app:
| Fonctionnalité de l'objet | Propriétés | Intégration dans un scénario | ||
| Actions | Déclencheurs | Conditions | ||
|
Lumière : Allumer / Eteindre |
Fonction "ON" - "OFF" de l'éclairage | ✔ | ✔ | ✔ |
|
Lumière : Changer la puissance de luminosité |
Température de blanc : De 2750K à 6500K (2750K / 3500K / 4000K / 5000K / 6500K) |
✔ | ✘ | ✘ |
|
Lumière : Changer la température de blanc |
Min : 0% / Max : 100% / Pas : 1% | ✔ | ✘ | ✘ |
|
Ventilateur : Allumer / Eteindre |
Fonction "ON" - "OFF" de la ventilation | ✔ | ✔ | ✔ |
|
Ventilateur : Changer le mode de ventilation |
Manuel / Brise | ✔ | ✘ | ✘ |
|
Ventilateur : Changer la vitesse de ventilation |
Min : 0 / Max : 6 / Pas : 1 | ✔ | ✘ | ✘ |
| Programmation |
Définir une heure de début et l'état de l'objet Définir une heure de fin et l'état de l'objet (facultatif) Choisir les jours d'exécution |
✘ | ✘ | ✘ |
|
Minuteur : Allumer / Eteindre dans... |
Définir un temps temporaire dans la journée pour mettre en "OFF" ou "ON" l'objet. (Lumière ou ventilateur.) | ✘ | ✘ | ✘ |

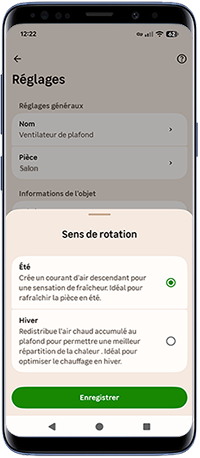

| Sens de rotation | Eté / Hiver | ✘ | ✘ | ✘ |
| Changer de réseau Wi-Fi | Effectuer un changement de connexion réseau sans supprimer l'objet | ✘ | ✘ | ✘ |
| Effectuer la mises à jour disponible | Mise à jour disponible par OTA | ✘ | ✘ | ✘ |
| Récupérer la version firmware | Récupérer et afficher la version du firmware actuelle de l'objet | ✘ | ✘ | ✘ |

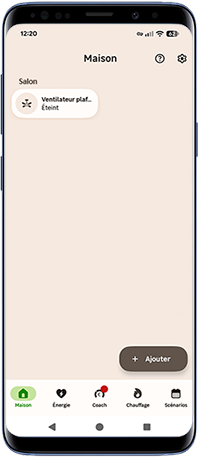

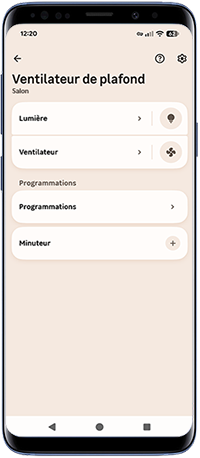

Ecran d'accueil : | |

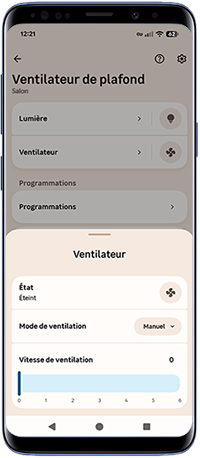

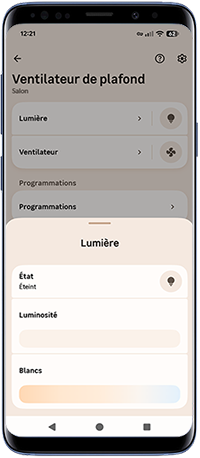

Page de pilotage : | ||

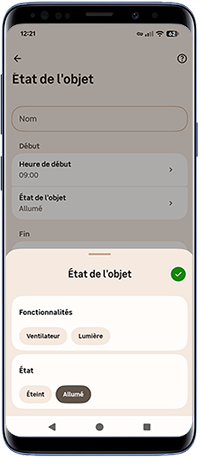

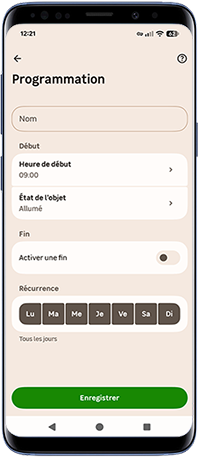

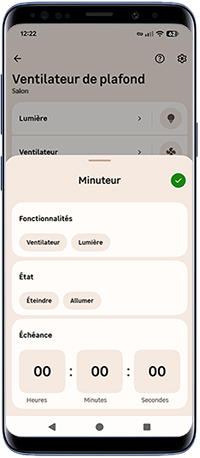

| Page de pilotage - La programmation : | Page de pilotage _- La minuterie : | |

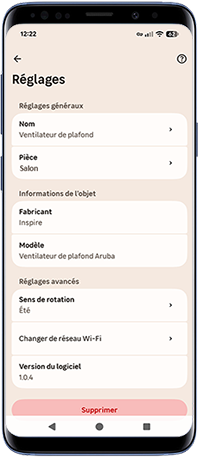

| Les réglages : | |
Product overview:

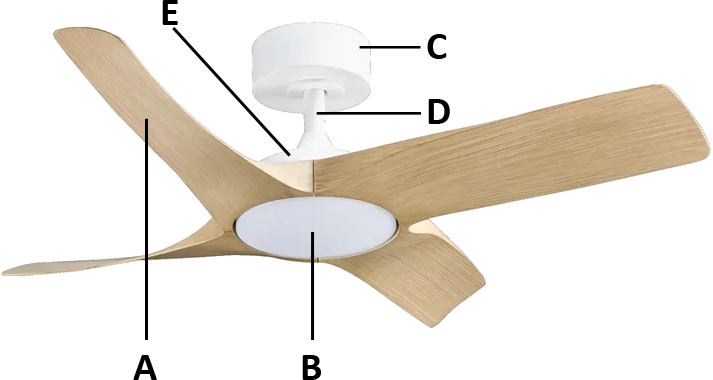

| A | Fan blades | C | Mounting cover | E | Mounting base |
| B | LED light | D | Suspension tube |

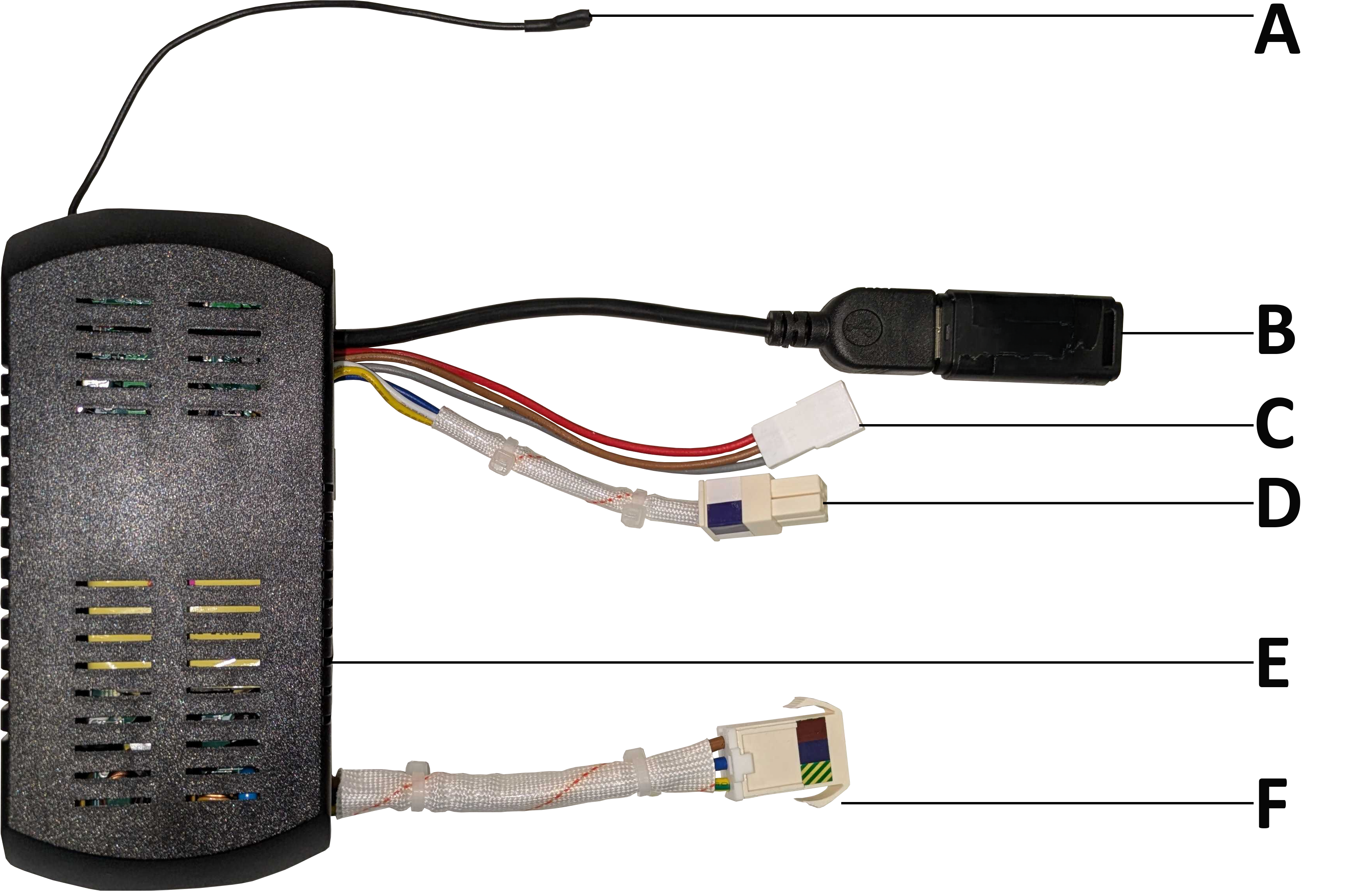

| A | Antenna | C | Connection to motor | E | Control module |
| B | Wi-Fi USB key | D | Connection to light | F | Connection to power supply of control module |

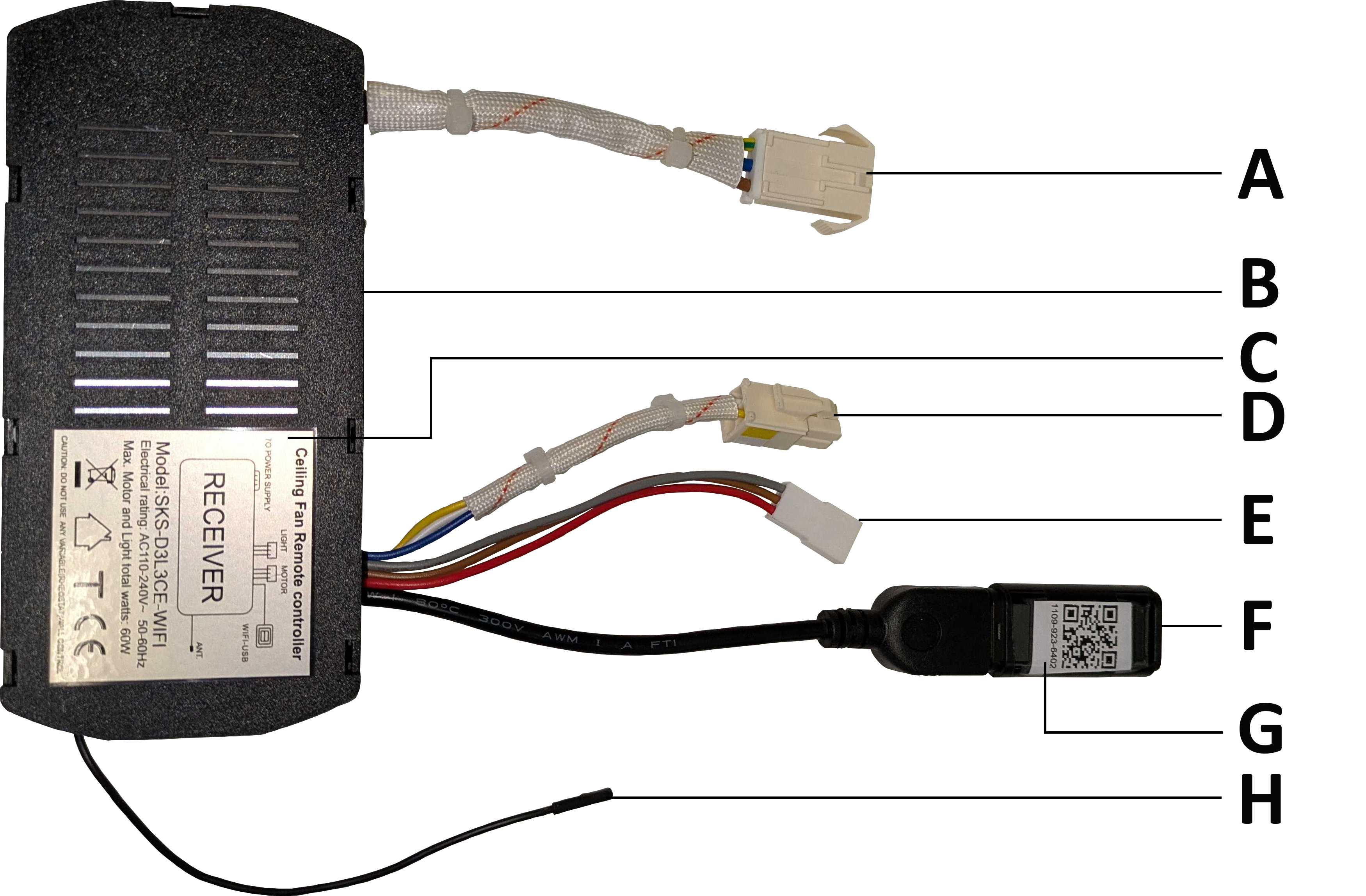

| A | Connection to power supply of control module | D | Connection to light | G | QR code for pairing recognition in the Enki app |
| B | Control module | E | Connection to motor | H | Antenna |
| C | Control module nameplate | F | Wi-Fi USB key |

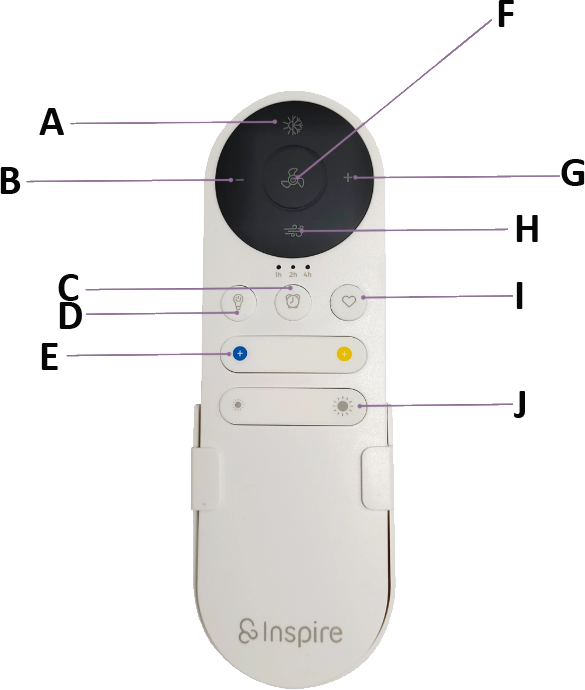

| A | Summer / winter mode | E | Light temperature adjustment (6500K to 2700K). 5 settings | I | Memory of setting (3 sec) and start of preferred setting |
| B | Decrease speed (6 modes) | F | On / Off | J | Light intensity adjustment from 15% to 100% |
| C | Timer 1h / 2h / 4h | G | Increase speed (6 modes) | ||
| D | Light on | H | Natural breeze mode |

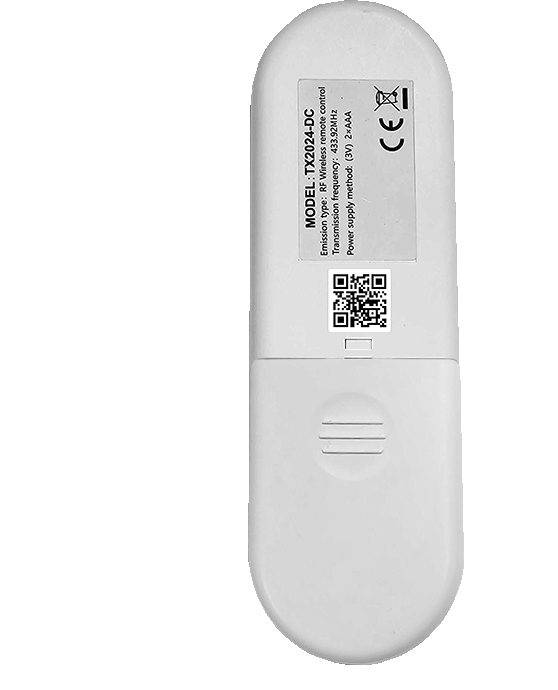

| A | Remote control | C | QR code for pairing recognition in the Enki app | E | Battery cover locking notch |
| B | Nameplate | D | Battery cover | F | Battery compartment (2x LR03 / AAA) |

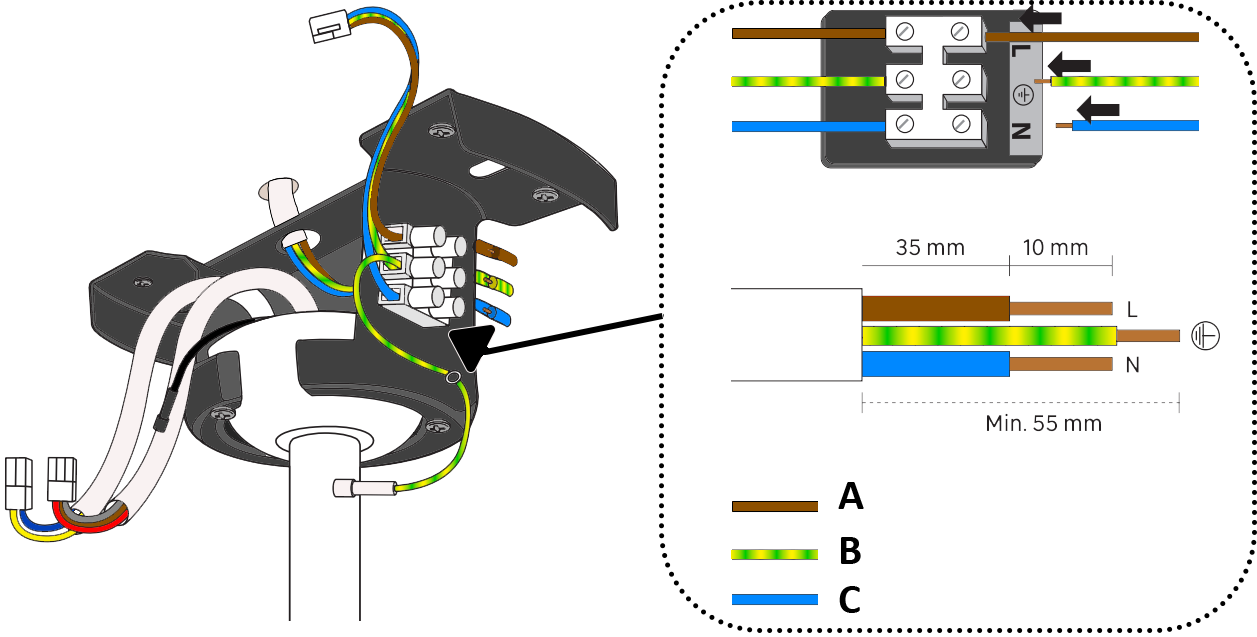

| A | Brown wire: Live | B | Yellow/green wire: Ground | C | Blue wire: Neutral |
What does the LED status of my device mean:
| Device listening mode | Network connection following a manual connection request |
| Press and hold simultaneously the light 💡 and favorite ♥️ buttons. | During the pairing or network reconnection process |
| The fan emits 3 beeps 🔊 | The fan light 💡 turns warm white |
How does... my device work?
Useful technical information:
How to reset my device?
|
A small tip before proceeding:
|

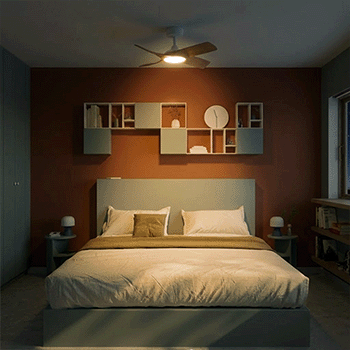

| Resetting my connected device | |
| # Please have the fan remote control nearby and press simultaneously the light button 💡 and warm white temperature + | |
| Have the remote control ready | Press simultaneously the light button 💡 and warm white temperature + |

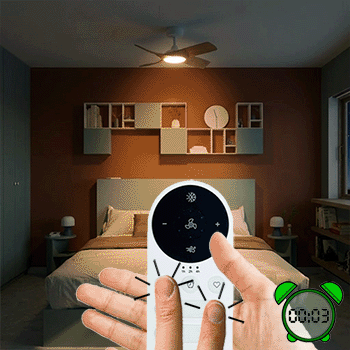

| # Hold both buttons for five seconds. The light will switch to cool white to confirm the reset of your fan. | |
| Hold these two buttons for 5 seconds | The light switches to cool white. The reset was successful. |
